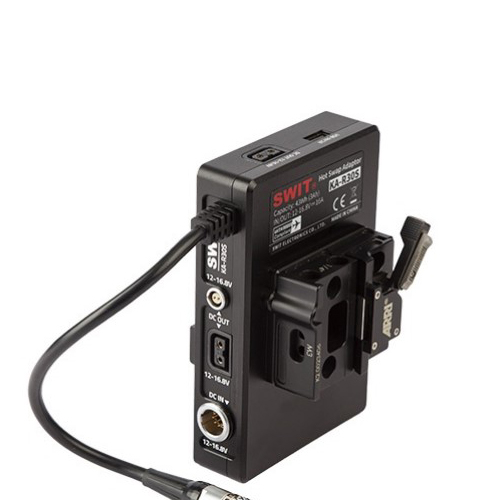

Swit KA-R30S VM Hotswap Plate for MINI / MINI LF

Overview
KA-R30S is a V-mount extended plate designed specifically for ARRI ALEXA MINI and MINI LF cameras. It features 43Wh, 200W constant load cells inside and provides at least 2 minutes of run time. The plate also has multiple circuit protections and a countdown seconds display for easy battery replacement. It offers D-tap, 2-pin LEMO, and USB outputs, as well as an 8-pin LEMO input for power station hotswap. The plate is housed in a durable aluminium CNC unibody and can be easily installed with the MINI LF system RAB-1 Clamp2 and a 15mm rod clamp for the old MINI system.

The KA-R30S plate is capable of powering the camera for at least 2 minutes at 200W load, even after 1000 cycle times. It also includes a 120 seconds countdown display for easy battery replacement and power distribution options for various devices, including ALEXA MINI/MINILF, 2-pin LEMO, D-tap, and USB. Additionally, it comes with a free 15mm rod adaptor for installation on the old style ALEXA MINI 15mm rig system.

Summary
Battery Mount: V Mount
Included in box
1x Swit KA-R30S VM Hotswap Plate for MINI / MINI LF

About the Swit KA-R30S VM Hotswap Plate for MINI / MINI LF
Hot-Swap Plate for ALEXA MINI / MINI LF

KA-R30S is a V-mount extended plate dedicated for ARRI ALEXA MINI and MINI LF install. The plate has battery cells inside, and when you changing battery, the plate will take over the power supply for at least 2 minutes, till a new battery is mounted on. So you don’ t need to switch off the cameras with this hot-swap plate.

ALEXA MINI / MINI LF Install
KA-R30S matches with ARRI original MINI / MINI LF support system by connection with RAB-1 Clamp 2 (K2.0023406).
* The KA-R30S plate doesn’ t include the K2.0023406 clamp.

At least 2mins at 200W load

KA-R30S has CNC alluminum housing, 4 battery cells inside, 14.4V nominal voltage, 43Wh capacity, 200W constant high load.
The full capacity plate will ensure at least 2 minutes at 200W load even after 1000 cycle times.

120 Seconds Countdown Display

The hotswap plate provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120s. You just need to put on a new battery before it count down to 0.

The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120s after a period of time.

Power Distribution

KA-R30S provides:

1x 8-pin 12-16.8V 200W/16A to ALEXA MINI/MINILF
1x 2-pin LEMO 12-16.8V 38W/3A out
2x D-tap 12-16.8V 125W/10A out
1x USB-A 5V/2A output
1x 8-pin 12-16.8V DC input (For power station hotswap)

15mm Rod Adaptor

KA-R30S provides with a free 15mm Rod Adaptor in the package, to install on the old style ALEXA MINI 15mm rig system.

Inner battery voltage 14.4V nominal, 12-16.8V
Inner battery capacity 43Wh/3Ah
Power load 200W/16A constant high load
8-pin LEMO output 12-16.8V, 200W/16A for ALEXA MINI / MINI LF
D-tap output x2 12-16.8V, 125W/10A each, 200W/16A in total
2-pin LEMO output 12-16.8V, 38W/3A
USB-A output 5V, 10W/2A
8-pin LEMO input 12-16.8V
Dimensions 93×143×40mm
Net weight 757g

14.4V V-mount Hotswap
Dedicated for ALEXA MINI/MINI LF
43Wh, 200W constant load cells inside
At least 2 minutes run time
Countdown seconds display
D-tapx2, 2-pin LEMO, USB output
8-pin LEMO input for power station hotswap
Aluminium CNC unibody housing
MINI LF system RAB-1 Clamp2 install
Provide 15mm rod clamp for old MINI system
Multiple circuit protections
