Swit Electronics S-8D58

Overview

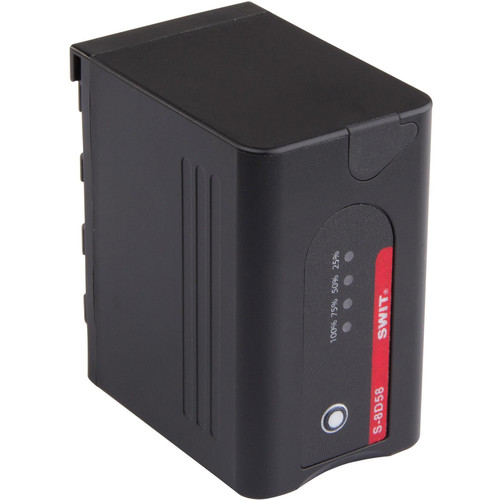

The S-8D58 is a Li-ion battery with a nominal voltage of 7.2V, designed specifically for use with Panasonic AG-DVX200, AJ-PX270, 285, and 298 cameras. It is a comparable replacement for the Panasonic VW-VBD58 battery and can be charged using either the Panasonic DE-A88 charger or the SWIT S-3602D charger. With a capacity of 43Wh / 6000mAh, this battery has a 4-level LED power indicator and a 7.2V/5.5mm pole-tap DC output. It also features a 5V/1A USB charging output and multiple circuit protections.

The S-8D58 is a versatile battery that can power a variety of devices, such as on-camera LED lights, monitors, and wireless transmitters, through its pole-tap socket. It also has a USB socket, allowing you to charge your smart phone or tablet on the go. The battery can be easily charged using the Panasonic DE-A88 or SWIT S-3602D chargers, or the SWIT S-3010D portable pole-tap charger. With a quick view of the 4-level LED power indicators, you can easily check the remaining capacity of the battery before use.

Summary
Battery Capacity: 43.2Wh
Battery Capacity: 0-50Wh
Battery Indicator: Yes
Battery Mount / Type: Panasonic VW-VB
Battery Technology: Li-ion
Voltage: 7.2v
Included in box
1 x S-8D58 DV Battery Pack

About the Swit Electronics S-8D58
S-8D58 is the replacement battery for Panasonic VW-VBD58, compatible with Panasonic 4K Camcorder AG-DVX200 and P2HD Camcorder AJ-PX270/285.

43Wh/6000mAh Capacity

With 7.2V nominal voltage, the S-8D58 has 43Wh / 6000mAh capacity, and can run approx. 2 hours on AJ-PX270 series camcorders when LCD monitor is on.

Build-in Pole-tap DC Socket

A 5.5/2.1mm pole-tap DC output socket is equipped on the S-8D58 battery, for DC 7.2V (Nominate) connection. You can connect on-camera LED light, monitor or wireless transmitter on the pole-tap socket, and get power simultaneously with camera. The Max power from the pole-tap is 30W, 4A. The Pole-tap socket can also be used as charging input, by SWIT portable charger S-3010D.

Build-in 5V/1A USB Socket

It’s rather a fantastic function to have a USB socket on the DV battery! Connect your smart phone or pad to the USB socket, press the “Check” button, and then the S-8D58 starts to output 5V/1A power to charge your devices!

4-level LED Power Indicator

The S-8D58 battery has the 4-level LED power indicators to check the battery remaining capacity. You can get a quick view of capacity before using.

Easy Charging

The S-8D58 can be charged on Panasonic original charger DE-A88, and SWIT also provides the Dual channel charger S-3602D for S-8D58, will take about 4 hours to charge from empty to 100%. And you can also use SWIT S-3010D Portable Pole-tap Charger for S-8D58. It will take 7 hours to fully charge.

Nominal Voltage 7.2V
Capacity 43Wh, 6000mAh
Max Output Power Total
Compatible Camera Panasonic AG-DVX200
Panasonic AJ-PX270
Panasonic AJ-PX285
Weight 235 g
Dimensions 41 × 70 × 64mm

Li-ion battery of 7.2V nominal voltage
For Panasonic AG-DVX200 /AJ-PX270 / 285 / 298 camera
Comparable to Panasonic VW-VBD58
Can be charged by Panasonic DE-A88 charger
Can be charged by SWIT S-3602D charger
43Wh / 6000mAh capacity
4-level LED power indicator
7.2V/5.5mm Pole-tap DC output
5V/1A USB charging output
Multiple circuit protections
