Swit 8ch 100W Ultra fast VM Wall Charger

Overview
The MATRIX-S8 is an ultra fast 8-channel V-mount wall charger that can simultaneously charge both 14.4V and 28.8V batteries. It has a charging speed of 100W/6A for SWIT 14.4V batteries with a capacity of 160Wh or more, 100W/3A for SWIT 28.8V batteries with a capacity of 160Wh or more, and 50W/3A for other batteries. This charger also features a 2×3.5-inch color LCD display for monitoring charging progress, battery cycle times, and other information. It also has large LED indicators for easy viewing from a distance.

The MATRIX-S8 can be mounted on a wall or a standard 19-inch rack bracket, making it suitable for installation in TV stations and rental houses. It also comes with a flexible wall mounting plate that can be attached to storage racks or DIT carts. With its fast charging speed and convenient features, the MATRIX-S8 is a reliable and efficient choice for charging V-mount batteries.

Summary
Battery / Mount Compatibility: V-Mount
Charging Ports: 8
Included in box
8×100W Ultra fast V-mount Wall Charger
Install Plate

About the Swit 8ch 100W Ultra fast VM Wall Charger
8x100W Ultra Fast Wall Charger

MATRIX-S8 is an 8-ch simultaneous V-mount wall charger with 100W ultra fast charging speed each channel, save up to 60% charging time comparing to normal chargers, supports both 14.4V and 28.8V batteries, for TV stations and rental houses installation.

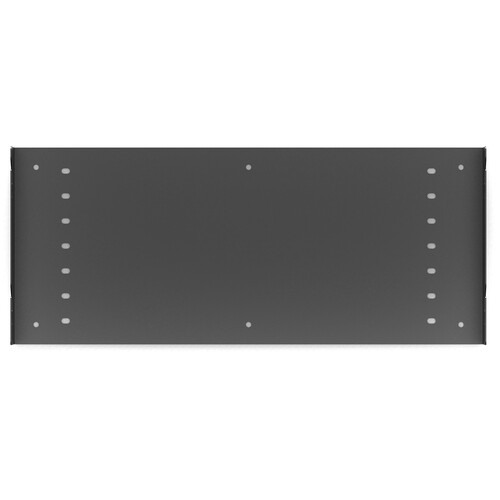

Flexible Wall Mounting Plate

MATRIX-S8 provides with a wall mounting plate on the backside, to be screwed onto the wall, or mounting to standard 19-inch rack bracket. You can even install the mounting plate onto storage rack or DIT cart.

3.5-inch Color LCD and Indicators

MATRIX-S8 provides 2x 3.5-inch color LCD to display charging progress, charging current, voltage, battery cycle times for each channel.You can also check the charging status by large charging indicators from a distance.

Power Max 900W
Input AC100V-240V 50/60Hz
Output DC 16.8V, 6A 100Wx8 (SWIT 14.4V & ≥160Wh batteries)
DC 33.6V, 3A 100W×8 (SWIT 28.8V & ≥160Wh batteries)
DC 16.8V, 3A 50W×8 (Other batteries)
Applicable battery V-mount battery
Dimensions 630×436×89mm
Net weight Net 10.6kg

8-ch simultaneous fast charging
Charge both 14.4V and 28.8V V-mount batteries
100W/6A for SWIT 14.4V & ≥160Wh batteries
100W/3A for SWIT 28.8V & ≥160Wh batteries
50W/3A for other batteries
2× 3.5-inch color LCD info display
Battery cycle times display
Large LED charging indicators
Wall mounting or 19-inch rack install
