Swit 3 FL-C60D Light/Tripod/Case Kit

OVERVIEW
The FL-C60D portable LED spot light is a powerful and versatile lighting option for interviews, video productions, and other on-location shoots. With its 60W COB LED, it provides super bright and long-lasting light with a lifespan of 50,000 hours. The beam angle can be adjusted from 15° to 60° using either the Electromotion knob or DMX control. The colour temperature is also adjustable from 2700K to 8000K, allowing for a wide range of lighting options. Additionally, the FL-C60D boasts a high CRI of 95 and TLCI of 97, ensuring accurate colour representation.

The light is also equipped with a convenient LCD display and control panel, making it easy to adjust the dimmer, colour temperature, and spot angle. It can be controlled via DMX512 protocol and has 3 DMX channels for dimmer, colour temperature, and spot angle. The FL-C60D also offers a USB power output for powering a wireless DMX receiver and has a wide input voltage range of 11-36V, making it compatible with various power sources. With its 4-leaf metal barn doors and U-shape and lighting stand mount, the FL-C60D is a versatile and essential addition to any lighting kit.

INCLUDED IN BOX
3 x FL-C60D Light
3 x Light Stand Tripod
3 x AC-DC Power Adaptor
3 x S-7200S V-Mount Plate W/ Clamp
3 x S-7101 D-Tap to 4-Pin Cable
1 x Trolley Case

About The Swit 3 FL-C60D Light/Tripod/Case Kit
Super bright and long-life COB-LED

FL-C60D portable LED spot light adopts Chip-On-Board LEDs of 50,000 hours lifetime, 60W power, bi-colour, DMX adjusting focus angle, as the key light of interview light kit or field video productions.

Spot /Flood Adjust

15° – 60° Electromotion/DMX adjust

FL-C60D outputs 15° – 60° beam angle adjusting by Electromotion knob or DMX. The illuminance is as high as 25000Lux at 1 meter.

Bi-colour temperature

2700K-8000K continuously adjustable

FL-C60D COB-LED alternated with 2700K and 8000K LEDs, and the output colour temperature can be continuously adjustable between 2700K and 8000K.

Accurate Colour Reveal

CRI Ra 95; TLCI 97

CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while FL-C60D offers the super high CRI at 95 and TLCI at 97, and will not lost the object original colours.

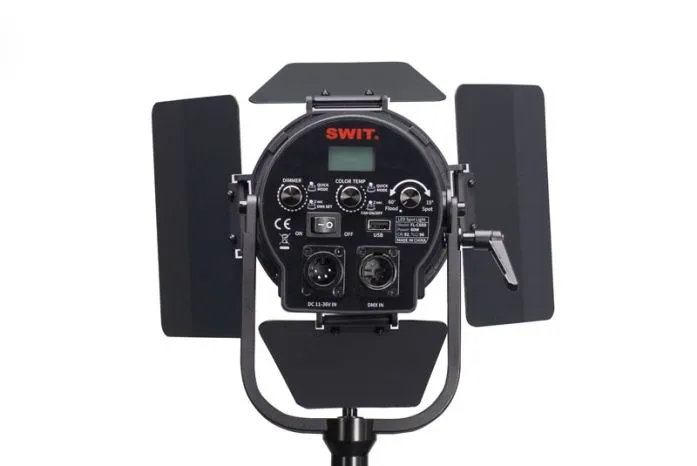

LCD Display and Control

Press knobs to enter Quick Adjusting Mode

FL-C60D has 3 knobs to control dimmer, colour temperature and spot angle. The Dimmer and Colour Temperature knobs can be pressed down to enter quick adjusting mode, and long pressed down to enter DMX address setting and Fan on/off control.

DMX512 Channels

Dimmer, Colour temperature and Spot angle

FL-C60D adopts standard 5-pin DMX input, supports DMX512 protocol, and adjusts dimmer, colour temperature and spot angle by DMX controller.FL-C60D occupies 3 DMX addresses:n = Dimmer 0-100%n+1 = Colour temperature 2700-8000Kn+2 = Spot angle 15°-60°Long press the Dimmer knob for 2 seconds, to enter DMX address setting.

USB Power Output

To power the Wireless DMX Receiver

FL-C60D provides a 5V USB power output socket, to power the SWIT Pocket Wireless DMX Receiver.Refer to: LA-WR8 Pocket Wireless DMX controller

11-36V Wide Input Voltage

4-pin XLR DC input, provide V/Gold mount plate

FL-C60D supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and provides with V-mount or Gold mount plate adaptor to fix onto light stand, and power the light by D-tap to 4-pin XLR DC cable.

Beam angle 15°- 60°
Max Illuminance 1m: Spot 25000 Lux Flood 4000 Lux, 2m: Spot 6250 Lux Flood 1000 Lux, 3m: Spot 2700 Lux Flood 445 Lux
Colour temperature 2700K～8000K
CRI 95
TLCI 97
USB out 600mA
Power Approx. 60W
Working voltage DC11V～36V
Dimensions 111 × 120 × 235mm
Weight (per light) 2.1kg

60W super bright COB LED light
15°-60° Spot/Flood adjustable
2700K-8000K continuously adjustable
0-100% flick-free dimming
Super high CRI Ra 95, TLCI 97
DMX512 controlled colour, dimmer, angle
LCD display colour, dimmer and DMX
Silent mode by fans switching off
LED overheat detection and protection
4-leaf metal barn doors
U-shape and lighting stand mount

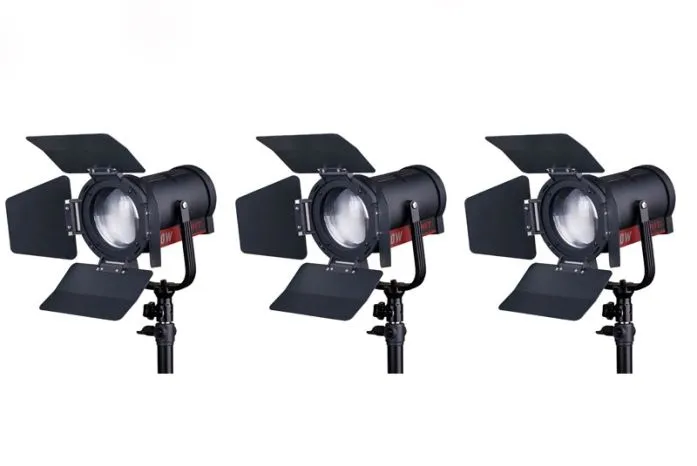

3 Light kit
