Swit 240Wh High Load GM Battery Pack

OVERVIEW
The S-8183A high-load battery is perfect for high draw power applications, with a maximum output of 250W and 20A constant power. This is ideal for cine cameras like the ALEXA, which require around 85W high draw. Normal Li-ion batteries are not suitable for these types of cameras, as they offer only 100W/8A output and may reduce battery life if used for long periods of time at full power. Additionally, when using multiple devices such as monitors and lighting, the total power may exceed 100W, making normal batteries inadequate.

With its 240Wh / 16.7Ah high capacity, the S-8183A battery can run for approximately 8 hours with a normal 30W ENG camera, or 2.5 hours with an ARRI Alexa camera. It also supports fast charging at 6A, reducing charging time by more than 50%. The battery also features a built-in D-tap DC output socket, allowing for easy connection to on-camera lights, monitors, and wireless transmitters with a maximum power of 120W and 10A.

SUMMARY
Battery Capacity: 240Wh
Battery Capacity: 150-300Wh
Battery Indicator: No
Battery Mount / Type: Gold Mount
Battery Technology: Li-ion
Voltage: 14.4v
INCLUDED IN BOX
240Wh High Load GM Battery Pack

About The Swit 240Wh High Load GM Battery Pack
Adopt High-Load Li-ion Cells

Max 250W, 20A constant power output Perfect for high draw power application

Normal Li-ion batteries offer 100W/8A output and suit- able for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries can not draw completely.Using S-8183A high-load battery, you can get MAX 250W/20A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.

240Wh / 16.7Ah High Capacity

Consists of 24pcs 18650 battery cells, and reaches 240Wh / 16.7Ah high capacity.Can run approx 8 hours for normal 30W ENG cameras; and approx 2.5 hours for ARRI Alexa camera

6A Fast Charging

S-8183A supports 6A fast charging, to save more than 50% charging time, can be charged from 0 to 80% after 2.5 hours, and fully charged within 3.8 hours.

Build-in D-tap DC Output Socket

A D-tap DC output socket is equipped on the top side of S-8183A battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.The Max Power from D-tap is 120W, 10A.

Nominal Voltage 14.4V
Capacity 240Wh/16.7Ah
Max output power In total:250W
Electrodes:250W,20A
D-tap:120W,10A

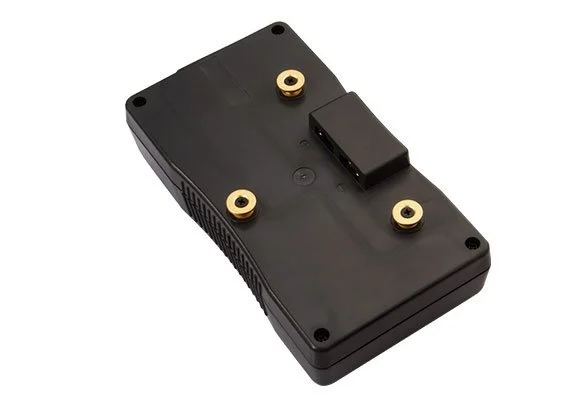

Mount Type Gold mount
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C（Capacity and Max Load may decrease when operating below 0°）
Net weight Approx 1.3kg
Dimensions 165×90×68mm

High-load Li-ion cells
At least 250W, 20A constant load
14.4V, 240Wh capacity
D-tap output socket

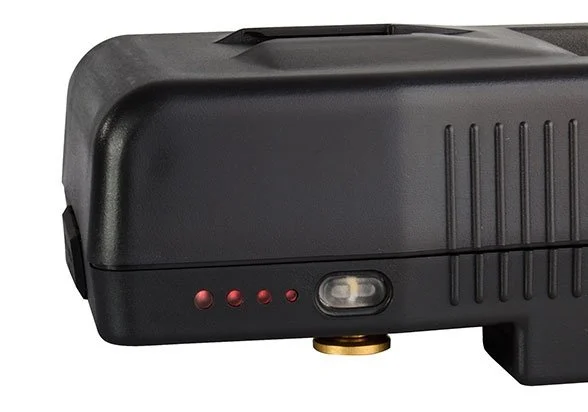

4-level LED power indicator
Gold mount type connection
Multiple circuit protections
