Overview
The demand for high quality audio is increasing in the video production industry as high resolution content becomes more prevalent. This poses a challenge for content creators who need to capture high-quality audio quickly, reliably, and with limited resources. To meet this demand, Sony offers the UWP-D series which provides superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception, and user-friendly features. This makes it an ideal partner for ENG and EFP, as well as documentaries and weddings.
The UWP-D series utilizes advanced digital audio processing technology to ensure high quality sound with improved transient response performance. It also offers a fast and easy frequency setting through its NFC SYNC feature, allowing for quick and intuitive secure channel setting between transmitter and receiver. Additionally, the series has a compact and lightweight design, making it easy to use with small camcorders and interchangeable lens digital cameras. With its high visibility OLED display, the UWP-D series is also suitable for indoor and outdoor use.
Summary
Battery Mount / Type: AA
Connectivity: Radio Frequency (RF)
Included in box

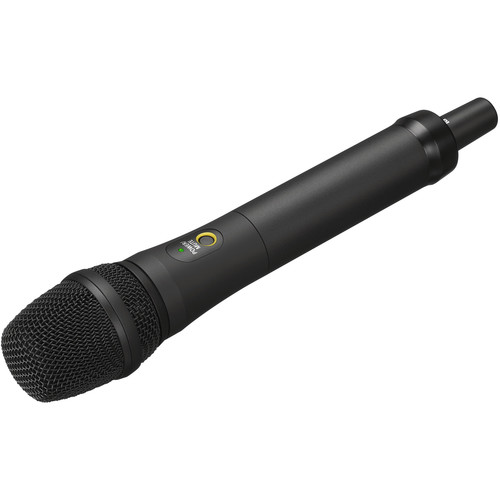

1 x UWP-D handheld microphone with unidirectional capsule (UTX-M40)
About the Sony UTX-M40/K33 Microphone TX
The demand for high quality audio is increasing as high resolution content becomes prevalent in the video production industry. Today’s content creators are faced with the challenge of capturing high-quality audio quickly, reliably and with limited resources.
Offering superb sound quality with digital processing, reliable RF transmission, true double tuner diversity reception and friendly features, the UWP-D series is an ideal partner for ENG (electronic news gathering) and EFP (electronic field production), as well as documentaries and weddings.
Digital audio processing for high quality sound
Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.
Fast, easy frequency setting
Sony’s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.
Light, compact design
Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver’s compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.
Oscillator Type Crystal-controlled PLL synthesizer
Antenna Type 1/4 λ wavelength wire antenna
Carrier Frequencies 14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA : 638.125 MHz to 697.875 MHz(UHF-TV channels 42 to 51)
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)
38CN : 710.025 MHz to 782.000 MHz(UHF-TV channels 38 to 46)
E : 794.125 MHz to 805.875 MHz
BJ : 806.125 MHz to 809.750 MHz
KR : 925.125 MHz to 937.500 MHz
RF Output Power 30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)
Capsule Type Dynamic
Directivity Uni-directional
Reference Audio Input level –55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
Maximum Audio Input Level 151 dB SPL (21 dB attenuation, using supplied microphone unit)
Audio Attenuator Adjustment Range 0 dB to 21 dB (3 dB steps)
Frequency Response 70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
70 Hz to 15 kHz (Typical) (J model)
Signal-to-Noise Ratio 60 dB (–60 dBV, 1 kHz sine wave input)
102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
Distortion 0.9% or less (–60 dBV, 1 kHz input)
Audio Delay Approx. 0.35 ms
Tone Signal Frequency In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz
Display OLED
Power Requirements DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)
Battery life* Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
Operating Temperature 0 °C to 50 °C (32 °F to 122 °F)
Storage/Transport Temperature –20 °C to +55 °C (–4 °F to +131 °F)
Dimensions ø48 × 258 mm (1 15/16 × 10 1/4 in.) (diameter / length)
Mass Approx. 255 g (9.0 oz) (excluding batteries)
High quality sound with Sony digital audio processing
NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D receivers)
Interchangeable head for wide choice of microphone capsules
Auto gain mode volume control
+15 dB gain volume boost mode for off-mic audio
Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
Variable muting function
Compatibility with Sony WL-800/UWP/UWP-D series
High visibility OLED display, ideal for indoor/outdoor use
Digital audio processing for high quality sound
Advanced digital audio processing technology by Sony assures high quality sound with improved transient response performance. A new [optional] digital audio interface enables direct digital sound recording with many Sony professional camcorders and Alpha interchangeable lens cameras via the SMAD-P5 Multi Interface MI shoe adaptor, bypassing A/D and D/A conversion stages to further ensure excellent sound quality.
Fast, easy frequency setting
Sony’s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel setting between transmitter and receiver.
Light, compact design
Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings and remote production. The receiver’s compact size and light weight make it an ideal partner for use small camcorders and interchangeable lens digital cameras.
