Sony URX-S03D/K33 Receiver

Overview
The UWP-D series wireless microphone transmission systems utilize a true diversity reception system to achieve highly stable reception. This is made possible by two receiving antennas, each with their own RF circuits. The system automatically selects the stronger signal from the two antennas for output, reducing interruptions in reception.

Sony Digital Audio Processing is used in the UWP-D series to improve sound quality and transient response performance compared to traditional analogue wireless systems. This technology allows for accurate reproduction of sounds such as bells, tee shots, and handclaps. The system also offers advanced features such as automatic channel setting, channel scanning, and compatibility with Sony camcorders for easy setup and wide frequency coverage.

About the Sony URX-S03D/K33 Receiver

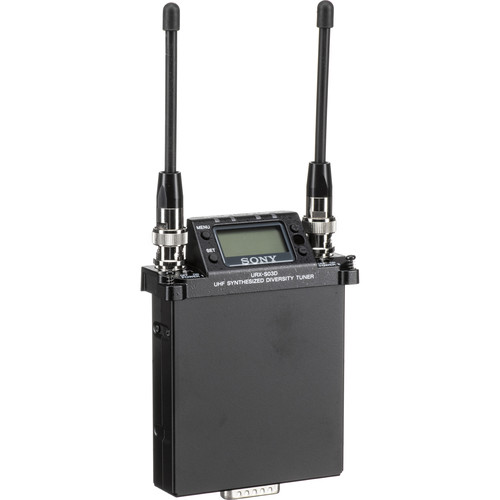

The URX-S03D is the first two-channel portable receiver in the UWP-D Series that fits directly in the slot of Sony XDCam and HDCam camcorders. Working with the UTX-B03HR belt-pack transmitter, the system features easy channel setting functions, advanced functionality for stable RF transmission and Digital Audio Processing technology ensures high-quality sound. With advanced usability with Sony XDCAM and HDCAM camcorders, it also works seamlessly with Sony 800 and UWP Series transmitters.

Digtal Audio Processing for high quality sound
Improves transient response performance between the UWP-D transmitter and receiver, providing impressive natural sound quality compared to conventional analogue wireless systems.

Stable RF transmission
True diversity reception system achieves highly stable reception from two adjustable receiving antennas, each with its own RF circuits.

Great usability with Sony XDCAM and HDCAM camcorders
System works with a wide range of Sony XDCAM, HDCAM and DVCAM camcorders, including the PXW-X320, PXW-X400 and PXW-X500.

Easy channel setting

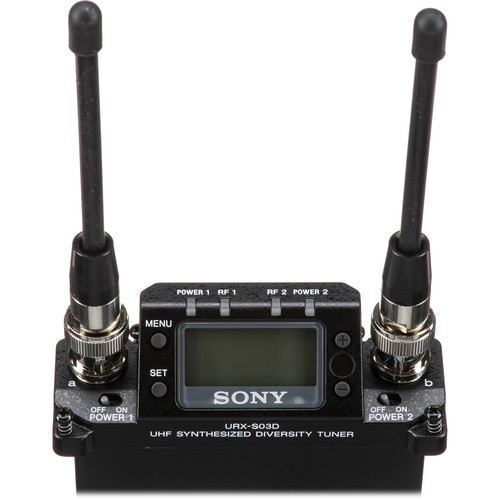

Large display, automatic channel setting function, USB connection for power supply and line input availability.

Wide frequency coverage with choice of channels available
The extra wide switching bandwidth covers a wide area, with a wide choice of channels available across multiple models – please refer to product specifications for more information.

Compatible with the following Sony camcorders:

PXW-X320
PXW-X400
PDW-850/750
PXW-X500
PMW-400/580
PDW-510/510P
PDW-530/530P
PDW-700/740/F800
PMW-TD300
PMW-500/350
PMW-320
(PMW-F5/F55 with CBK-55BK)
HDW-F900R
HDW-650/680/800P
MSW-930P
DSR-400/400P
DSR-450WS/450WSP

Important Notes: This product is available in a variety of different frequency range models to suit the regulatory requirements of individual countries. Please contact your Sony reseller for more information on which product will best suit your specific needs
Oscillator Type Crystal-controlled PLL Synthesizer
Reception Type True diversity
Antenna Type Detachable
Carrier Frequencies Americas14UC: 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25)
25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)
42LA: 638.125 MHz to 697.875 MHz (UHF-TV channels 42-51) (not available in US or Canada)
Carrier Frequencies: Europe, UAE, South Africa, Australia, Malaysia, Vietnam, New Zealand CE21: 470.025 MHz to 542.000 (not available in Australia, Malaysia, Vietnam or New Zealand)
CE33: 566.025 MHz to 633.000 MHz (not available in New Zealand)
CE42: 638.025 MHz to 694.000 MHz
Carrier Frequencies ChinaCN38: 710.025 MHz to 782.000 MHz
Carrier Frequencies Thailand, Taiwan, SingaporeE: 794.125 MHz to 805.875 MHz
Carrier Frequencies JapanJB: 806.125 MHz to 809.750 MHz
Carrier Frequencies South KoreaKR3: 925.125 MHz to 937.500 MHz
Frequency Response 23Hz to 18kHz (typical)
Signal-to-Noise Ratio 96dB (max deviation, A-weighted)
Distortion (T.H.D) 0.9% or less (-60dBV, 1kHz input)
Audio Delay Approx. 0.375 msec
Analog Output D-sub 15pin, unbalanced
Analog Output Level* -40dBu (at ±5kHz deviation)
Pilot Tone Signal 32 kHz/ 32.382 kHz/ 32.768 kHz
DisplayLCD
Power Requirements DC 7.0 V
Operating Temperature 0°C to 50°C
32°F to 122°F
Storage/Transport Temperature -20°C to +55°C
-4°F to +131°F
Dimensions 88 x 116.2 x 31.2mm (3 1/2 × 4 5/8 × 1 1/4 in.) (excluding the antennas) (W x H x D)
Mass Approx. 303g (10.7 oz.) (with supplied antennas attached)
Note
*0dBμV= 1μV EMF, 0dBu=0.775Vrms, 0dBV=1V, 0dB SPL=2×10-5 Pa

True diversity reception system for stable reception
Wireless microphone transmission systems are typically subject to interruptions in reception (RF signal dropout), but the UWP-D series reduces this to a minimum. Utilising a true diversity reception system, it achieves highly stable reception because of its two receiving antennas, each with RF circuits. RF signals from the two antennas are compared and the stronger signal is automatically selected for output.

Sony Digital Audio Processing for high quality sound
The UWP-D Series wireless microphone systems uses Sony Digital Audio Processing to improve sound quality and transient response performance compared to conventional analogue wireless systems. It provides superb transient response performance. Analogue companding systems cannot accurately reproduce sounds such as a bell, tee shot or handclap, but Sony Digital Audio Processing reproduces them faithfully.

Direct digital connection to camcorders

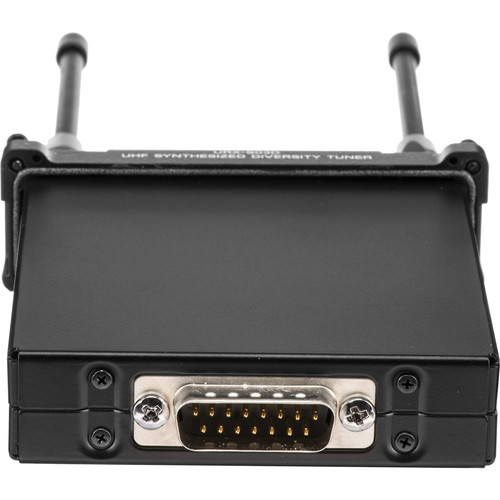

The URX-S03D provides two-channel (with XDCAM camcorders) and single-channel (with HDCAM camcorders) digital connection via a D-sub 15-pin interface. With HDCAM camcorders, two audio signals from two transmitters can be output in the single channel as a two-channel mixing function. Sony camcorders can also show each wireless microphone’s RF/AF level in the viewfinder.

Automatic channel setting mode
The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature.

Fast and easy channel scan
With its Clear Channel Scan, Active Channel Scan function and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically, for fast and easy system setup.

Compatibility with Sony 800 and UWP Series
DSP enables a digital compander to match Sony’s analogue wireless system. The The UWP-D Series transmitters and receivers are also compatible with Sony’s WL-800 Series and UWP Series, allowing users to switch between different companding modes.

Wide frequency coverage
The extra wide switching bandwidth covers a wide area, with a wide choice of channels available – please refer to product specifications for more information.
