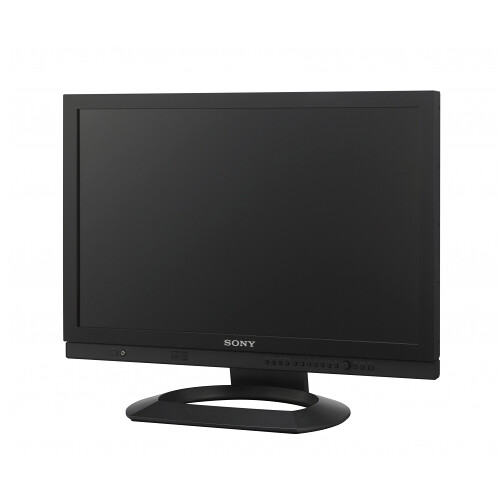

Sony LMD-A240 24in HD Monitor

Overview
The LMD-A240 is a high dynamic range monitor that supports various EOTFs, including ITU-R BT.2100(HLG), SMPTE ST2084, S-Log 3, S-Log3(Live HDR), S-Log2 and 2.4(HDR). When an HDR EOTF is selected, the backlight of the panel automatically adjusts to the maximum luminance. This monitor also has a wide color gamut, allowing for accurate color reproduction and seamless integration into HDR production workflows. It also features low-latency I/P conversion for live production, versatile computer input options, and displays waveforms, vector scopes, and audio level meters for precise monitoring. Additionally, the LMD-A240 has a user-friendly interface and consistent design with other Sony master monitors.

The LMD-A240 has several additional features, such as time code display, safety area markers, closed caption display, and 8-channel audio level meter display. It also has a line doubler mode for checking field dominance and time code function. The monitor can be calibrated for white balance using commercially available tools, and supports 2K input with an image-slide function. It also has an anamorphic image conversion function and Active Format Description (AFD) for displaying horizontally squeezed signals. The LMD-A240 allows for power-on settings and has a low power indicator for DC power supply. These features make this monitor a valuable tool for professional video production.

Summary
Screen Size: 24 Inch
Resolution: 1920 x 1200
Inputs:
HDMI
Stereo Mini Jack
Outputs: Stereo Mini Jack
Power Supply: AC
Recording: No
Included in box
1x LMD-A240 Monitor
1x AC power cord
1x AC plug holder
CD-ROM (1)

About the Sony LMD-A240 24in HD Monitor
Please note: V3 Firmware upgrades available here.

Lightweight and slim Full HD LMD-A Series monitor incorporates WUXGA (1920 x 1200) panel with an excellent cost-performance ratio

The LMD-A240 24-inch LMD-A Series LCD monitor offers Full HD resolution, along with a lightweight and compact design. There is more than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. The LMD-A Series offers the same user-interface design, convenient features, functions and operability as PVM-A Series OLED picture monitors. This consistency between the PVM-A and LMD-A Series brings great user benefits when both types of monitor are used in the same network. Furthermore, LMD-A Series monitors provide versatility for a wide range of user applications both in the studio and in the field. These include DC operation, VESA mount and yoke-mount holes.

Stylish lightweight and slim body with industry’s widest viewing angle

Robust double-coated paint finish and stylish sharp edges chassis. Perfect for group monitoring. More than a 12% to 22% reduction in mass, 30% reduction in depth, and more than 25% reduction in power consumption, compared to Sony’s previous models. It provides cost savings for transportation and power consumption. It also saves space and weight in digital galleries.

Latest camera-linkage functions

Includes camera and lens metadata display and a Picture and Picture function with side by side, wipe, blending, difference and auto input switching. Ideal for OnSet and live production monitoring.

User presets and password protection

Secure your monitor settings for greater peace of mind. Five user presets are available. One colour temperature memory USER1 can also be password protected.

2K format display and Dual-Link HD-SDI mode

This feature offers a cost effective 2K monitoring solution, ideal for OnSet digital cinematography. In addition, a Dual-link HD-SDI input is available.

Multiple monitors firmware upgrade utility

Save you time to upgrade simultaneously your monitors through your network.

Picture Performance
Panel a-Si TFT Active Matrix LCD
Picture Size (Diagonal) 24 inches
Effective Picture Size (H x V) 518.4 x 324.0 mm
20 1/2 x 12 7/8 inches
Resolution (H x V) 1920 x 1200 pixels (WUXGA)
Aspect 16:10
Pixel Efficiency 99.99%
Colors Approx.16.7 million colors
Normal Scan 0% scan
Over Scan 5% over scan
Input
Composite Input BNC (x1), 1 Vp-p ±3dB, sync negative
SDI Input BNC (x2)
HDMI Input HDMI (x1) (HDCP correspondence)
Audio Input Stereo mini jack (x1), -5 dBu 47 kΩ or higher
Parallel Remote RJ-45 Modular connector 8-pin (x1)
(Pin-assignable)
Serial Remote (LAN) RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input XLR-type 4-pin (male) (x1), DC 12 V to 17 V (output impedance 0.05 Ω or less)
Output
Composite Output BNC (x1), Loop-through, with 75 Ω automatic terminal function
SDI Output BNC (x2), output signal amplitude: 800 mVp-p ±10%, output impedance: 75 Ω unbalanced
Audio Monitor Output Stereo mini jack (x1)
Speaker (Built-in) Output 1.0 W (Monaural)
Headphone Output Stereo mini jack (x1)
General
Power Requirements 100 V to 240 V AC, 0.5 A to 0.2 A, 50/60 Hz
DC 12 V to 17 V, 3.6 A to 2.6 A
Power Consumption Approx. 51 W (max.)
Approx. 45 W (average power consumption in the default sattus)
Inrush Current (1) Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 58 A
peak, 0.3 A r.m.s. (240V AC)
(2) Inrush current after a mains interruption of five seconds (Voltage changes caused at zero-crossing): 46 A peak, 0.2 A
r.m.s. (240V AC)
Operating Temperature 0°C to 35°C (Recommended: 20°C to 30°C)
32°F to 95°F (Recommended: 68°F to 86°F)
Operating Humidity 30% to 85% (no condensation)
Storage/Transport Temperature -20°C to +60°C
-4°F to +140°F
Storage/Transport Humidity 0% to 90%
Operating/Storage/Transport Pressure 700 hPa to 1060 hPa
Dimensions (W x H x D) *1 566.6 x 397.8 x 64.4 mm (without monitor feet)
566.6 x 420.3 x 165.0 mm (with monitor feet)
22 3/8 x 15 3/4 x 2 5/8 inches (without monitor feet)
22 3/8 x 16 5/8 x 6 1/2 inches (with monitor feet)
Mass Approx. 7.6 kg (with monitor feet)
Approx. 16 lb 12 oz (with monitor feet)
Approx. kg (without monitor feet)
Approx. lb oz (without monitor feet)
Supplied Accessories AC power cord (1)
AC plug holder (1)
Before Using This Unit (1)
CD-ROM (1)
Optional Accessories SU-561 Monitor Stand
*1 The values for dimensions are approximate.

High Dynamic Range*

LMD-A240 supports EOTFs of ITU-R BT.2100(HLG)**, SMPTE ST2084, S-Log 3, S-Log3(Live HDR), S-Log2 and 2.4(HDR). When selecting one of the HDR EOTFs, the monitor automatically sets the backlight of its panel to the maximum luminance.(With its wide colour gamut, the LMD-A240 displays colour reproduction that is close to that of Sony master monitors such as BVM-HX310. This allows LMD-A240 to easily and smoothly integrate into HDR production workflows.)*Supported with LMD-A240**Refer to ITU-R BT.2100-2. System gamma only supports 1.2 and it applies to a Y signal.

Optimised low-latency I/P conversion

The I/P conversion system delivers automatically optimised signal processing according to input signals with low-latency (less than 0.5 field). This system helps users to edit and monitor for a live production.

Computer input versatility

Multiple computer signals can be received via an HDMI/DVI interface; the resolution range is from 640 x 480 to 1920 x 1200 pixels.

Waveform monitor, vector scope and audio level meter display

An input signal’s waveform and vector scope with an SDI‑embedded 2-channel audio level meter can be displayed on screen. Both the waveform monitor and vector scope have various modes, including a zoom function (in an area of 0 to 20 IRE) with the waveform monitor, and a zoom function (in the central black area) with the vector scope, for adjusting white balance. The waveform of a specified line can also be displayed. In conjunction with the Picture & Picture function*, the waveform monitor and vector scope display can monitor two camera signals. In addition, an audio level meter can display the embedded audio signal from the SDI or HDMI input. It can display on screen the ch1 to ch8 or ch9 to ch16

*Supported with V1.1.

User-friendly operability and user interface

The monitor has a number of additional features, including: Time Code display (LTC/VITC-supported); safety area markers, closed caption display (EIA/CEA-608 and EIA/CEA-708, SDI only), 8-channel audio level meter display, computer signal input capability via HDMI input and external remote control function.

Consistent design with PVM-A Series monitors

LMD-A Series monitors offer the same functions and operability as PVM-A Series monitors and share a consistent front control panel design. This means that both types of monitor can be operated and controlled in the same way.

Line doubler* mode for field dominance check and time code function

The LMD-A240 offers a line doubler mode, which is helpful when checking for field order and line flicker. In addition, LTC and VITC time code can be displayed at the top or bottom of the picture.

* Supported with V3.1

Auto white adjustment*

The LMD-A240 monitor employs a software-based colour temperature (white balance) calibration function, which is called Monitor_AutoWhiteAdjustment. Combined with a PC and commercially available calibration tools**, this function enables simple adjustment of the monitor’s white balance.

* The Konica Minolta CA-210/CA-310/CS-200, DK-Technologies PM5639/06, X-Rite i1 Pro/i1 Pro2, Photo Research PR‑655/670, Klein K-10, and JETI specbos 1211.

**Supported with V1.1.

2K (2048 x 1080) input and image-slide*

The LMD-A240 monitor can display 2K (2048 x 1080 resolution) input. The 2K signal is displayed in two ways – as a full 2K image scaled into a full-HD (1920 x 1080) screen, or as a 2K native display with an image-slide function.

* Supported with V1.1.

Anamorphic image conversion and Active Format Description (AFD) functions*

The monitor’s anamorphic image conversion function** correctly displays horizontally squeezed 3G/HD-SDI signals from an onset camera system. The signals include two major systems: 16:9 1920 x 1080 (1280 x 720) signals and 17:9 2048 x 1080 signals. These signals can be appropriately displayed on the monitor’s screen. The Active Format Description (AFD) function*** also reads the ancillary data flag on an SDI, and can upconvert the SD image to display automatically on the full HD resolution screen. This is achieved by adjusting the resolution and aspect ratio.

* Supported with V1.1

** Only 3G/HD-SDI and dual-link HD-SDI are supported.

*** Only SD-SDI signals are supported.

Power-on setting, DC Low Power indicator

Power-on setting allows users to make choice when the monitor starts up; this includes last memory, user preset, and factory preset settings. So, users can set the monitor accurately and quickly. This function is very useful for rental equipment. DC power supply is available in the range of 12V to 17V. The power indicator blinks when the DC power supply is low.

*Supported with V1.1ç

User Presets with password lock and short-cut to function key configuration*

When multiple users share the same monitor, each user can memorize his/her setting data and retrieve this data whenever required. This frees the user from time consuming and repetitive setting tasks. When multiple users share the same monitor, each user can register his/her own password for colour temperature and user preset data. This ensures the user correctly recalls previous user preset data, and keeps preset information safe from unauthorised use. For improving speed of the function key configuration, the user can take a short-cut to the settings menu screen by simply pressing the function key repeatedly.

*Supported with V1.1.

Wide colour gamut*

Thanks to Premium LCD technology**, Version 2.0 of the monitor supports ITU-R BT.2020, DCI-P3, S-GAMUT/S-GAMUT3/S-GAMUT3.cine, sRGB and Adobe RGB

*Supported with V2.0

**LMD-A240//C3 SYQ, or later – [LMD-A240//C2 CN2, or later, in China]

Lightweight and compact with lower power consumption

The LMD-A series monitors offer a design that is uniquely light and compact. Their weight is reduced by 12% to 22%, and depth by more than 30%, compared with predecessor models. Power consumption for these models is reduced by more than 25%. Users appreciate these convenient, cost-saving qualities.

Video input versatility

The LMD-A240 monitor is equipped with built-in standard input interfaces: 3G/HD/SD-SDI (x2), HDMI (HDCP) input (x1) and composite (x1).

In-Monitor Display (IMD) function

With an external remote function via Ethernet, image source names and tally information can be displayed on screen. LMD-A Series monitors support the TSL system protocol. The IMD system can display European language text including umlaut and accent mark

False colour function*

The monitor can display false colour according to the signal level from a camera. As the whole picture is changed, it is easy to see levels for over-exposure, under-exposure or appropriate exposure. You can adjust these levels and turn the scale** of false colour on and off, as required.

* Supported with V2.0

** False color scale itself only supports a 0.45 OETF signal.

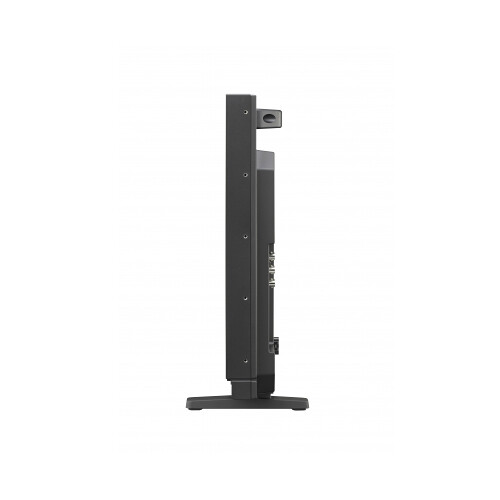

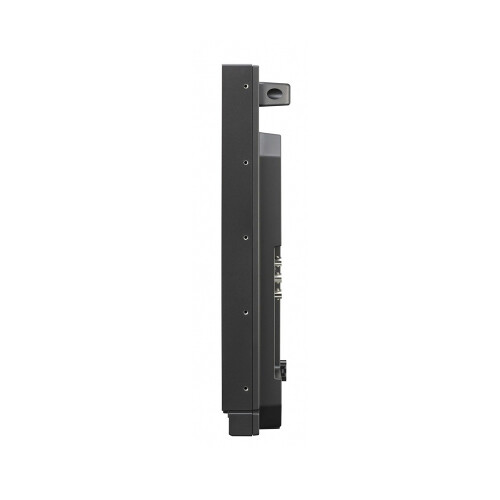

Yoke-mount and Wall-mount capability

The monitor includes screw holes on its side bezels for yoke mounting. This type of mounting is convenient when installing a monitor to a camera crane or monitor stand. There are also Wall-mount 100‑mm pitch holes on each monitor’s rear panel. The optional SU-561 monitor stand (available separately) providing height and tilt function is also available for this model.

Camera focus function

The LMD-A240 monitor can control the aperture level of a video signal, and display images on the screen with sharpened edges to help camera focus operation. Further to this, the sharpened edges can be displayed in user-selectable colours (white, red, green, blue, and yellow) for more precise focusing.

On screen Tally

The monitor is equipped with a three colours red, green and yellow On-screen Tally function.

Network control function

The LMD-A240 has the network control function that allows you to upgrade the monitor software by Ethernet very easily. The network capability will also be utilised for a central control of multiple units in a system environment.

Enhanced Picture & Picture function*

The unique Picture & Picture function of the LMD-A240 allows simultaneous display of two input signals on the monitor’s screen. This function helps with colour adjustment and setting of camera frames. Various modes are available: side by side, wipe, blending, difference and auto input switching. This function works when synchronous SDI signals are input.Sync-free side by side with low latency allows you to monitor two signals without synchronisation. You can configure each picture as HD or SD with different frame rates, taking them from both SDI and HDMI. This function works with the false colour function, camera focus function and metadata on the main picture of the two pictures.

* Supported with V2.0.

Camera/lens metadata display function and on-screen tally*

The LMD-A240 v2.0 monitor can display the camera and lens metadata** set of a camera system, according to the SMPTE RDD18*** document for Acquisition Metadata Sets for Video Camera Parameters. Further to this, these monitors also support a subset of Sony’s private metadata.*** The monitor is also equipped with a three-colours red, green and yellow on-screen tally function. The position of the tally display can be changed to either the upper or lower section of the screen.


* Supported with V1.1

**Lens metadata is supported by F65, PMW-F55, PMW-F5, PXW-FS7M2 and PXW-FS7 as well as equipment capable of SMPTE RDD18.

***Not all metadata is supported.

Flexible area marker*, Grid Display, two Center Markers and Flip functions

You can set two flexible area markers freely on the screen. As their line colours and thickness can be changed, these two markers are easily identified.Grid Display function displays arbitrary multiple vertical and horizontal lines to help when users check the composition of a picture. In addition to a standard Center Marker 1, Center Marker 2 is also available. This second marker enables easier checking of the centre portion’s focus. The Flip function turns the reversed image to a normal view, horizontally or vertically.

*Supported with V2.0.

Multiple monitors upgrade utility*

Multiple PVM-A and LMD-A Series monitors on the same Ethernet network can be upgraded by simple operation providing an efficient solution for large infrastructure.

*Supported with V1.1.High Dynamic Range*

Lightweight and compact with lower power consumption
These monitors offer a design that is uniquely light and compact. Their weight is reduced by 12% to 22%, and depth by more than 30%, compared with predecessor models. Power consumption for these models is reduced by more than 25%. Users appreciate these convenient, cost-saving qualities.

Optimised low-latency I/P conversion
The I/P conversion system delivers automatically optimised signal processing according to input signals with low-latency (less than 0.5 field). This system helps users to edit and monitor for a live production.

Time code and In-Monitor Display (IMD) function
With an external remote function via Ethernet, image source names and tally information can be displayed on screen. LMD-A Series monitors support the TSL system protocol. The IMD system can display European language text including umlaut and accent marks.

Waveform monitor and vector scope display
These features enable users to monitor sources using the internal waveform and vector scope. In addition, LMD-A Series monitors provide some of the same evaluation tools as larger, dedicated equipment. Both the waveform monitor and the vector scope offer zoom functions for very precise signal adjustment (from zero to 20% video level), and both have two-channel audio monitoring.

Yoke-mount and VESA-mount capability
The monitor includes screw holes on its side bezels for yoke mounting. This type of mounting is convenient when installing a monitor to a camera crane or monitor stand. There are also VESA-mount 100‑mm pitch holes on each monitor’s rear panel. The optional SU-561 monitor stand (available separately) providing height and tilt function is also available for this model.

User-friendly operability and user interface (UI)
The monitor has a number of additional features, including: Time Code display (LTC/VITC-supported); safety area markers, closed caption display (EIA/CEA-608 and EIA/CEA-708, SDI only), 8-channel audio level meter display, computer signal input capability via HDMI input and external remote control function.

Consistent design with PVM-A Series monitors
LMD-A Series monitors offer the same functions and operability as PVM-A Series monitors and share a consistent front control panel design. This means that both types of monitor can be operated and controlled in the same way.

Input versatility
LMD-A Series monitors are equipped with built‑in standard input interfaces: 3G/HD/SD-SDI (x2) with active loop outputs (x2), HDMI (HDCP) input (x1), and composite (x1) with analogue loop output (x1).

Computer signal input capability
Multiple computer signals can be received via an HDMI/DVI interface; the resolution range is from 640 x 480 to 1920 x 1200 pixels.

Camera focus function
The LMD-A240 monitor can control the aperture level of a video signal, and display images on the screen with sharpened edges to help camera focus operation. Further to this, the sharpened edges can be displayed in user-selectable colours (white, red, green, blue, and yellow) for more precise focusing.

On screen Tally
The monitor is equipped with a three colours red, green and yellow On-screen Tally function.

Network control function
The LMD-A240 has the network control function that allows you to upgrade the monitor software by Ethernet very easily. The network capability will also be utilised for a central control of multiple units in a system environment.

DC power operation
The LMD-A240 is equipped with a DC power connector, which allows operation within 12V to 17V power range.
