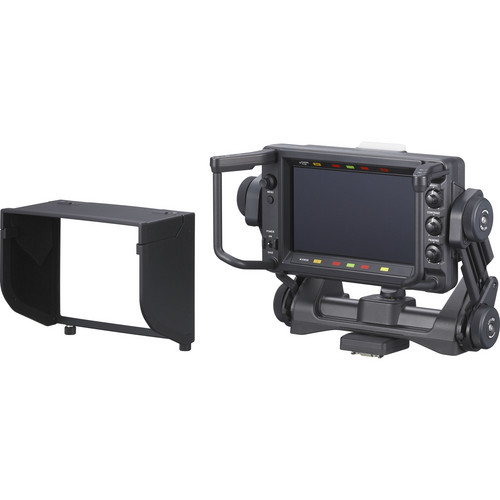

Sony HDVF-EL75 7.4in HD Colour OLED Viewfinder

Overview
The Sony HDVF-EL75 Viewfinder features a 7.4-inch quarter HD panel with advanced OLED display technology. This allows for quick response when tracking and focusing on moving objects, as well as high contrast and wide dynamic range. The OLED panel also creates smooth gradation from dark to bright portions and has stable long-term color reproduction thanks to Sonys unique feedback circuit.

In addition to these features, the HDVF-EL75 has a Focus Assist function for accurate focusing, an Image Magnification function for magnifying specific portions of the image, and a Peaking Plus function for enhancing object edges. It also has four assignable switches and a flexible position adjustment mechanism for comfortable use.

Summary
Resolution: Full HD
Power Connection: via Camera

About the Sony HDVF-EL75 7.4in HD Colour OLED Viewfinder
The 7.4-inch* HDVF-EL75 Viewfinder delivers strikingly high contrast, a wide dynamic range, and a fast response time thanks to the use of revolutionary Organic Light Emitting Diode (OLED) display technology.

OLED panels help prevent light emission when reproducing dark shades, resulting in very deep blacks and a contrast ratio of more than 1,000,000:1. The lack of a backlight allows the device to control all phases of light emission from zero to peak brightness. The innovative technology delivers exceptional colour expression and detail without wasting power, so it is also an exceptional energy-saver.

High Definition acquisition requires extremely precise focusing, so OLED image quality delivers significant benefits by allowing the operator to accurately see contrast and colour levels when framing a shot. A wide viewing angle aids operator comfort while an extremely fast response time is particularly useful for applications such as sports coverage.

In addition, the HDVF-EL75 is packed with a wide range of sophisticated, user-friendly features such as Focus Assist, four assignable switches and a position-adjustment mechanism with unprecedented flexibility.

This product comes with the full PrimeSupport package. That’s fast, hassle-free repairs and a helpline offering expert technical advice. Plus the peace of mind that Sony is looking after your equipment – and your business.

* 188-mm viewing area, measured diagonally.

General
Power requirements 10.5 V to 17.0 V DC (supplied by the camera)
Power consumption 19.5 W
Operating temperature –20C to +45C (–4F to +113F)
Mass 3.5 kg (7 lb 11 oz)
Display Unit
Panel 7.4-inch (188 mm) colour OLED panel
Effective picture size (H/V, 16:9 aspect ratio) 164 × 92 mm (6 1/2 × 3 5/8 inches)
Effective pixels 960 (H) × 540 (V) × 3 (RGB)
Performance
Brightness (peak brightness, typical) 350 cd/m2
Resolution 500 or more lines
Colour temperature D65
Supported Formats
1080 23.98PsF, 24PsF, 25PsF, 29.97PsF, 30PsF, 50i, 59.94i, 60i
720 50p, 59.74p, 60p
Connectors
Camera connector Round 20-pin (x1)
Supplied Accessories Indoor hood
Number plate
V-wedge shoe attachment
Hexagonal wrench
4 socket head cap screws
Cleaning cloth
Connecting cable
Operation manual

7.4-inch, quarter HD (960 x 540) panel with advanced Organic Light Emitting Diode (OLED) display technology.
Quick response for tracking and focusing on moving objects
High contrast and wide dynamic range, thanks to OLED panel characteristics such as deep black colour reproduction and high-peak brightness
Incorporating a 10-bit panel driver, the OLED panel creates smoother-than-ever gradation from dark to bright portions
Stable and long-term colour reproduction with Sony’s unique feedback circuit
Focus Assist function supports accurate focusing
Image Magnification function magnifies just the portion of the image that is in the viewfinder display
Peaking Plus function enhances the edge of an object by colour, area selected, or both
Four assignable switches
Waveform Monitor function
Flexible position adjustment mechanism makes it easy to place the viewfinder to suit the operator – or even fold downwards when not in use
