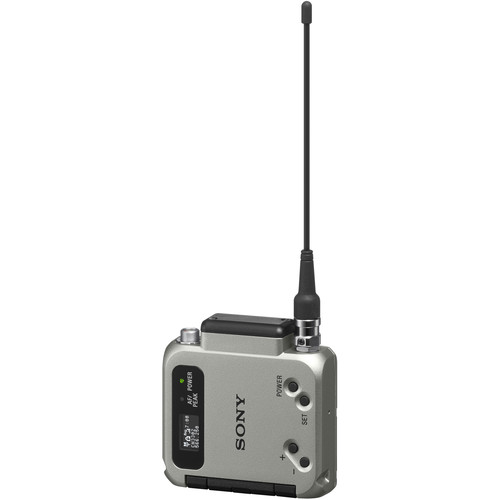

Sony DWT-B03R/H Transmitter

Overview
The Sony DWT-B03R Transmitter is a top choice for live sound applications, such as theatre and concerts, as well as TV production and ENG/EFP. It boasts a compact and durable magnesium body that can withstand rain, spray, and sweat. With advanced digital audio processing, encryption, and RF transmission technology, this transmitter ensures secure and high-quality audio with low latency. It can support up to 21 channels per 8MHz TV band, making it perfect for large-scale productions. The DWT-B03R is also compatible with Sony Wireless Studio control software, allowing for flexible remote operation of up to 82 transmitters.

The DWT-B03R features a small and lightweight bodypack design that is ideal for theatre, drama, and movie production. It offers a low audio latency of 1.2ms and operates on a wide bandwidth of up to 148MHz. The rechargeable Lithium Ion Battery NP-BX1 provides up to 7 hours of running time, making it a reliable choice for long events. With the addition of the Cross Remote for full RF control and the Lemo 3-Pin and OLED display, the DWT-B03R is a versatile and high-performing transmitter for professional use.

Summary
Battery Mount / Type: Li-ion
Connectivity: Radio Frequency (RF)
Connector type: 3-Pin Connector
Included in box
1x Belt Clip
1x Carrying case
1x NP-BX1
1x Scribble sheet
1x CD-ROM
1x DWT-B03R Transmitter

About the Sony DWT-B03R/H Transmitter
The Sony DWT-B03R Transmitter is an ideal choice for live sound applications including theatre and concerts, as well as studio based TV production and ENG/EFP.

Light and compact (27% smaller than its DWT-B01N predecessor), the DWT-B03R features a tough magnesium body that’s resistant to rain, spray and sweat.

Sony’s advanced digital audio processing, encryption and RF transmission technologies assure secure, stable transmission and reception of very high-quality audio with low latency.

The DWT-B03R is ideal for use in large-scale multichannel productions, supporting up to 21 simultaneous channels per 8MHz TV band.

The DWT-B03R is compatible with Sony Wireless Studio control software for PC (Ver 5.0 or later), allowing flexible remote operation. Remote control of up to 82 transmitters is possible using the Cross Remote™ function combined with the RMU-01 remote control unit (available separately).

The small, lightweight and sweat-proof bodypack transmitter is ideal for theatre, drama and movie production. It offers a remarkably low audio latency of 1.2ms1, with 148MHz wideband operation. It utilises a rechargeable Li-ion battery that equips users with many hours of battery operation time.

Wireless Interface WiDIF-HP
Oscillator Type Crystal-controlled PLL Synthesizer
Antenna Type λ/4 flexible wire
Type of Emission G1E or G1D
Frequencies H: 566.025 MHz to 714.000 MHz, 25 kHz steps
RF Power 2 mW/10 mW/25 mW (e.r.p) selectable
Input Connector Small 3-pin connector
Reference Input Level MIC: -60 dBV (-58 dBu), 1 kHz (at 0-dB attenuator level) / LINE: +4 dBu, 1 kHz
Maximum Input Level MIC: -22 dBu (with 0 dB attenuator), LINE: +24 dBu
Audio Attenuator Adjustment Range 0 to 48 dB (3 dB steps, MIC input mode only)
Frequency Response Transmission: 20Hz to 22kHz (typical)
Dynamic Range 106 dB typical (A-weighted, T.H.D=1%)
Distortion (T.H.D) MODE1, MODE2: 0.03% or less, MODE3: 0.3% or less
Audio Delay MODE1: 0.9 msec (total: 2.8msec) /MODE2: 0.7 msec (total: 1.2msec)/MODE3: 1.8 msec (total 3.7msec)
Wireless Remote Control Cross Remote (2.4-GHz IEEE802.15.4 compliant)
Display OLED
Power Requirements DC 3.6 V (with Rechargeable Battery Pack: NP-BX1)
Operating Temperature 0°C to 50°C / 32°F to 122°F
Storage/Transport Temperature -20°C to +60°C / -4°F to +140°F
Weight 0.09 kg (0.19 lbs)
Dimensions 5.3 x 6 x 1.7 cm (2 x 2.3 x 0.6 inches)

Up to 148MHz Bandwidth
2mW, 10mW & 25mW
Small, lightweight and robust magnesium body
Up to 7hour running time

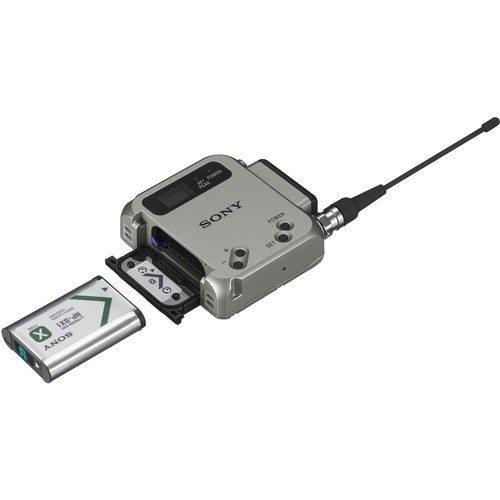

Rechargeable Lithium Ion Battery NP-BX1
Phase Change
Sony High Definition Sound Codec 4
Cross Remote for full RF control
Lemo 3-Pin
OLED display
