Sony BVM-E171 with HDR Licence

Overview

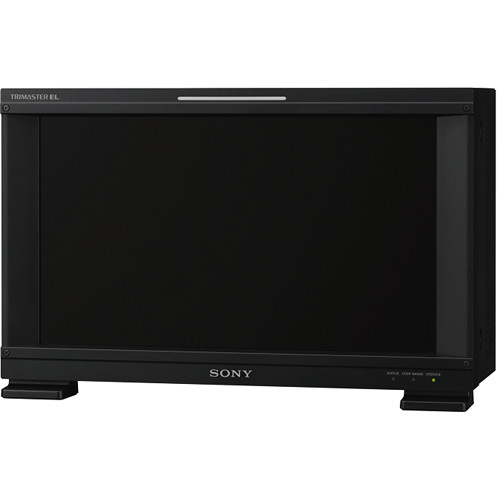

The BVM-E171 is a 16.5-inch TRIMASTER EL™ OLED critical reference monitor that is perfect for 4K production. It features a 2nd Gen OLED panel with a dramatically improved viewing angle, making it ideal for critical picture evaluation in both studio and on-set environments. This monitor is specifically designed for professional applications such as colour grading, high-end editing, broadcasting, and scientific research. It utilizes Sony’s cutting-edge Organic Light-Emitting Diode technology and advanced signal processing to deliver exceptional performance. The colour shift when viewing the monitor at different angles has been significantly reduced compared to the 1st generation OLED panel, allowing for accurate evaluation by multiple people at the same time.

The BVM-E171 also has the ability to support HDR images with the v1.1 update and included BVML-HE171 HDR licence. This activates a range of EOTF options and colour spaces, making it a state-of-the-art product. It also features a Flicker-free mode to remove visible flicker when displaying lower frequency signals. Additionally, the BVM-E171 is lightweight and slim, making it suitable for field applications. It also supports ITU-R BT.2020 colour space and transfer matrix for 4K production, and accepts various computer signals through its HDMI connector. Please note that some functions may require the purchase of licence keys.

Summary
Screen Size: 16.5 Inch
Video Resolution: 4K
Resolution: 1920 x 1080
Inputs: BNC
Outputs: BNC
Recording: No
Included in box
1x Sony BVM-E171 Reference TRIMASTER EL OLED Monitor with HDR Licence included [BVM-E171/HDR]

About the Sony BVM-E171 with HDR Licence
BVM-E171

16.5-inch TRIMASTER EL™ OLED critical reference monitor with wide viewing angle supports 4K production

16.5-inch TRIMASTER EL™ reference monitor, with 2nd Gen OLED. Dramatically improved viewing angle for critical picture evaluation in the studio and on-set

TRIMASTER EL™ reference monitor with 2nd Gen OLED panel. Dramatically improved viewing angle for critical picture evaluation in the studio and on-set For professional applications such as colour grading, high-end editing, broadcasting and scientific research, Sony’s leading edge Organic Light-Emitting Diode (OLED) technology and signals processing technology ensures absolutely outstanding performance with the BVM-E171. The colour shift depending on the viewing angle has reduced to less than half compared to the 1st generation OLED panel. It allows several people to evaluate the image with extreme accuracy at the same time, increasing the monitor’s versatility in top end monitoring solutions.

HDR images support

With v1.1 update and included BVML-HE171 HDR licence, the BVM-E171 supports fantastic HDR images. The HDR licence activates EOTF 2.2, 2.4, 2.6 CRT, S-Log3(HDR), S-Log3(Live HDR), S-Log2(HDR), ITU-R BT.2100(HLG), SMPTE ST2084, 2.4(HDR).

State-of-the-art product

Super Top Emission technology enhances OLED’s intrinsic benefits to deliver outstanding black performance, a quick response time with virtually no motion blur, and a wide colour gamut. A 12-bit output digital signal processing engine provides a nonlinear cubic conversion colour-management system that delivers precise colour reproduction, stunning picture uniformity, smoother-than-ever gamma performance, and picture quality consistency.

Flicker free mode

The TRIMASTER EL OLED panel’s superb quick response and scan-driving performance deliver stunning picture quality with virtually no motion blur. However, there is a possibility that flicker is just visible especially when a lower frequency signal is displayed (24p, 24PsF, and 50i). To remove visible flicker, the BVM-E171 is equipped with Flicker-free mode.DC operation with DC low power indicator*The BVM-E171 can be DC operated and features a DC low power indicator. Due to its lightweight and slim design, the BVM-E171 is ideal for field applications.

* Requires v1.1 update.

ITU-R BT.2020 support for 4K production

BVM-E171 is surely an HD monitor that conforms to ITU-R BT.709 colour space. Responding to an increase of the demand of using an HD monitor in a 4K production, BVM-E171 newly supports ITU-R BT.2020 colour space and transfer matrix.

Accepts computer signals via HDMI with RGB/YCC full range support*

The BVM-E171 accepts various computer signals input up to 1920 x 1080 through its HDMI connector. It is also equipped with Digital Cinema 2048 x 1080 signals.

*Requires v1.1 update.

This product contains pre-installed software and requires the purchase of licence keys to activate some functions.

Picture Performance
Panel OLED panel
Picture size (diagonal) 420.0 mm (16 5/8 inches)
Effective picture size (H x V) 365.8 x 205.7 mm (14 1/2 x 8 1/8 inches)
Resolution (H x V) 1920 x 1080 pixels (Full HD)
Aspect 16:09
Pixel efficiency 99.99%
Panel drive RGB 10-bit
Panel frame rate 48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)
Viewing angle (panel specification) 89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1)
Standard luminance 100 cd/m2 (preset1 to preset5 at EOTF 2.4)
48 cd/m2 (preset (DCI)) (1.0 Vp-p reference signal, 100% white signal input)
Colour temperature D55, D61, D65, D93, DCI*1, DCI XYZ and user 1-5 (5,000 k to 10,000 k adjustable)
Colour space (colour gamut) ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, BVM-E171 Native*3, S-Gamut/S-Gamut3*2, S-
Gamut3.cine*2
Transmission Matrix ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709
EOTF 2.2, 2.4, 2.6, CRT, S-Log3(SDR), S-Log2(SDR)

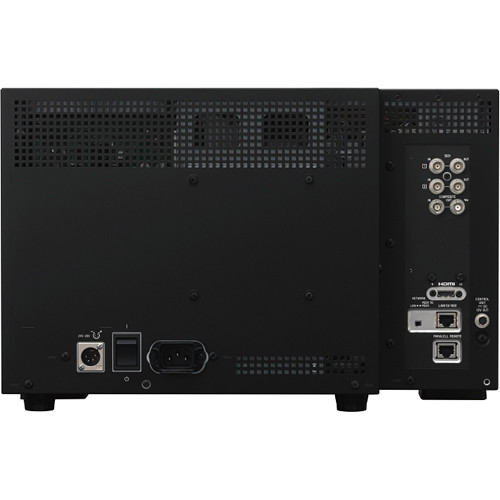

Input
SDI BNC (x2)
HDMI HDMI (x1) (HDCP correspondence, deep colour correspondence)
Composite Video BNC (x1)
Parallel remote RJ-45 modular connector 8-pin (x1) (Pin-assignable)
Serial remote (LAN) Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1)
DC Input XLR-4 pin (x1)
Output
SDI BNC (x2)
Composite Video BNC (x1)
DC 12V out Circle 4-pin (female) (x1)
General
Power requirement AC 100 V to 240 V, 0.9 A to0.5 A, 50/60 Hz, DC 24 V to 28 V, 3.3 A to 2.9 A
Power consumption Approx. 88 W (AC power supply) (max.)
Approx. TBA W (AC power supply) (average power consumption in the default status)
Dimensions (W x H x D) 436.0 x 282.4 (266.4)* x156.5 mm (17 1/4 x 11 1/4 (10 1/2)* x 6 1/4 inches)
* Height without legs
Mass Approx. 6.5 kg (14 lb5 oz)
Supplied accessories AC power cord (1), AC plug holder (1), CD-ROM (1), Before Using This Unit (Japanese, English 1), HDMI cable
holder(1), Handle(1), Rack mount brackets(L 1, R 1)
