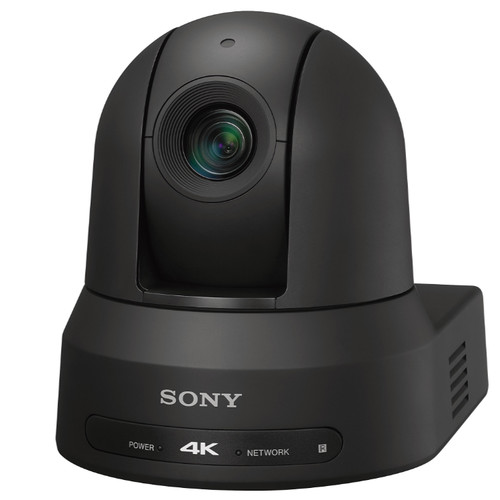

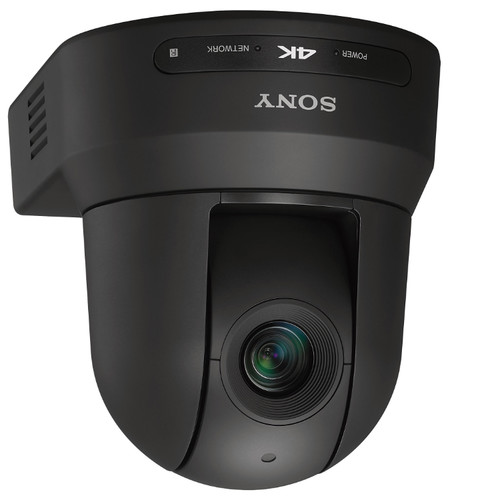

Sony BRC-X400 IP 4K Camera

Overview
The BRC-X400 PTZ camera is a versatile and efficient choice for capturing high-quality 4K images in a variety of environments. Its sensitive 1/2.5-type Exmor R sensor ensures low noise even in low light situations, while the powerful 80x zoom allows for detailed close-ups. With a wide viewing angle and support for NDI|HX compatibility, this camera is ideal for live production and can be controlled remotely using various protocols.

Installation and set-up are made simple with a single IP cable for power, video output, and control signals. The camera also offers features such as genlock support and a tally lamp for seamless multi-camera switching in live events. Additionally, the ability to review images remotely and the option for extended support make this camera a convenient and reliable choice for capturing every point of view in 4K.

Summary
Focal Length: 4.4-88mm
Max Aperture: f/1.8
Lens Zoom: 40x Optical Zoom
Resolution and Frame Rate: 4K
Sensor: CMOS
Video Outputs: HDMI
Weight: 0-2kg
Included in box
1x Sony BRC-X400 IP 4K Camera

About the Sony BRC-X400 IP 4K Camera
Please Note: Please see here and register your product within 90 days of purchase for 3 years of Sony PrimeSupport Elite at NO extra cost. A one or two year extension can also be purchased to extend your support to up to 5 years, contact us at +44 208 380 7400 for more information.

Capture every point of view in 4K with excellent picture quality and efficient IP production workflow. The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments – from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls.

The camera’s 1/2.5-type Exmor R CMOS sensor captures broadcast quality 4K images with excellent sensitivity, very low noise and rich, natural colour reproduction. It’s complemented by the integrated high-resolution lens that offers a powerful zoom capability up to 80x in Full HD (30x in 4K), with an expansive 70 degree wide angle coverage to capture every point of view.

Efficient IP-based live production is augmented with support for NDI®|HX (via optional license), allowing flexible configuration with other networked NDI-enabled devices.

Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) and RTMP* (Real Time Messaging Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.

Installation and set-up is easy, with a new Scene File function allowing the same settings to be applied to multiple cameras.

Convenient integration in multi-camera live events is also simplified with genlock support and an ‘on-air’ tally lamp. *Available through future upgrade planned in early 2020

Model Name BRC-X400
Video Output 3G-SDI/HDMI (4K output only via HDMI)
Zoom Ratio 30x (4K with CIZ)/40x (HD with CIZ), (Digital 12x)
Image Sensor 1/2.5 Exmor R CMOS
Minimum Illumination (50IRE) 1.6 lux (50IRE, F2.0 30fps)
Signal System (Max) 3840 x 2160 29.97p/1080 59.94p
Horizontal Viewing Angle (Wide) Approx. 70 degrees
Pan/Tilt Range P : ±170 T: +90, -20
Max Preset Speed [deg/s] 300°/sec (Pan), 126°/sec (Tilt)
Number of Preset 256 (CGI)
Picture Freeze Preset Yes
Body Colour Black and White
Control Interface VISCA, VISCA over IP, S700PTP, CGI
PoE+ Yes (IEEE802.3at compatible)
Audio 2ch
IP Streaming Yes
External Sync In Yes
AC adapter DC12V
Tally Lamp Yes (front)
Option NDI® / HX

Excellent 4K images, even in low light

The sensitive 1/2.5-type Exmor R sensor captures high-quality 4K images with very low noise, even in dimly-lit environments.

Up to 80x zoom

Powerful zoom up to 80x (in FHD) allows frame-filling close-ups with fine details seen clearly. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings.

Wide viewing angle

Cover the whole scene in sports arenas and lecture theatres with a horizontal viewing angle of approx. 70 degrees.

Support for NDI|HX

NDI|HX compatibility (via optional license) supports efficient IP-based live production, allowing flexible configuration with other networked NDI-enabled devices.

Multiple control protocols

PTZ and other camera functions can be controlled remotely via S700PTP, CGI and VISCA protocols.

Remote viewing

View pictures remotely over the Internet from a web browser, with support for RTSP (Real Time Streaming Protocol) and RTMP* (Real Time Messaging Protocol). *Available through future upgrade planned in early 2020

Simpler installation, lower costs

A single IP cable carries camera power, video image output and control signals to simplify installation and reduce cabling costs.

Ideal for live production

Genlock allows seamless multi-camera switching in live events. The camera’s inbuilt tally lamp is ideal for live productions and reality shows.

Fast, fuss-free set-up

The new Scene File* function can apply the same camera settings among multiple cameras for fast set-up. *Available through future upgrade planned in early 2020
