Sony AN-01//K UHF Antenna

Overview

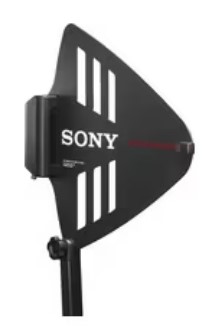

The AN-01 is a versatile uni-directional UHF Antenna specifically designed for use with Sony analogue or digital wireless microphone systems. It is capable of receiving a wide frequency range from 470 to 862MHz, making it suitable for a variety of applications.

For optimal reception, it is recommended to use two AN-01 antennas for diversity reception. The antenna features a log-periodic dipole array and can be powered by either DC 9V or 12V. It also comes with a hand grip for easy mounting onto a microphone stand. With selectable booster gain options of 0dB, 10dB, or 18dB, the AN-01 is a reliable and convenient choice for wireless microphone systems.

Included in box
1x Uni-Directional UHF Antenna

About the Sony AN-01//K UHF Antenna
The AN-01 is a uni-directional UHF Antenna, designed to be used with Sony analogue or digital wireless microphone systems.

This uni-directional UHF Antenna, the AN-01, can be used with either digital or Analogue wireless systems. While a single antenna can receive 470-862MHz, two antennas can be used for diversity reception.

The AN-01 can be powered by either DC 9V or 12V and comes with a selection of booster gains; 0dB, 10dB or 18dB.

A hand grip is supplied with the AN-01 that can be screwed directly onto a standard microphone stand.

Antenna Section
Antenna Type Log periodic dipole array
Directivity Unidirectional
Frequency Range 470 MHz to 862 MHz
Antenna Gain 5 dBi or more
Voltage Standing Wave Ratio 2.5 or less
Half Power Angle 150 degrees or less
Front To Back Ratio 12 dB or more
Booster Section
Frequency Range 470 to 862 MHz
Booster Gain 18 dB/10 dB/0 dB, switchable
Voltage Standing Wave Ratio 3.0 or less
Noise Figure 6 dB or less
Third Order Intermodulation 60 dB or more (95 dBμVEMF input)
Input/Output
Output Connector BNC-R, 50 Ω
General
Power Requirements 9 V/12 V DC
Power Consumption 100 mA or less
Operating Temperature 32°F to 122°F
0°C to 50°C
Storage/Transport Temperature -4°F to +140°F
‘-20°C to +60°C
Dimensions *[1] 343 x 341 x 36 mm (excluding microphone stand attachment pole/grip) (W x H x D)
13 1/2 x 13 5/8 x 1 7/16 inches (excluding microphone stand attachment pole/grip) (W x H x D)
Mass Approx. 530 g
Approx. 19 oz
Supplied Accessories Warranty card (1)
Warranty booklet (1)
Stand Adapter PF1/2 to W5/8 type (1)
Stand Adapter PF1/2 to W3/8 type (1)
Operating Instructions (1)
Microphone stand attachment pole/grip (1 set)
Notes
Note *[1] The values for dimensions are approximate.

The AN-01 is a uni-directional UHF Antenna, designed to be used with Sony analogue or digital wireless microphone systems.
Two AN-01 should be used for diversity reception.
A single AN-01 can receive a wide frequency range from 470 to 862MHz.
Either DC 9V or 12V can be used for powering.
Selectable booster gain (18 dB/10 dB/0 dB).
The antenna is a log-periodic dipole array.
It is supplied with a hand grip that supports screw mounting onto a microphone stand.
