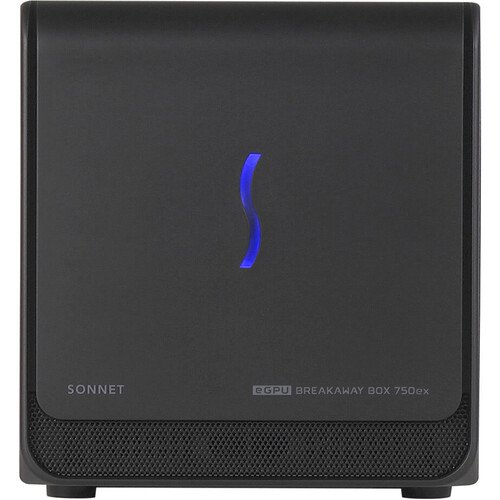

Sonnet EGFX Breakaway Box 750EX

Overview
The Sonnet eGPU Breakaway Box 750 and 750ex Thunderbolt 3 to GPU PCIe card expansion systems allow for a simple and effective way to boost your computers graphics performance. With a 750W power supply, it can support the highest power demands of the latest GPUs and is designed to accommodate future generations of GPU cards. It also includes two 8-pin auxiliary power connectors and provides 85W of upstream power for charging your notebook. It is AMD approved for air-cooled editions of the AMD Radeon RX Vega 64, Radeon Pro WX 8200, and WX 9100, and is also designed to support overclocked NVIDIA cards with high peak power requirements.

The eGPU Breakaway Box 750ex model includes an integrated hub with four USB 3.2 Gen 1 Type A ports and one Gigabit Ethernet port. It is designed to accommodate the most power-hungry double-width GPU cards, including Thunderbolt-compatible cards from popular GPU chipsets such as AMD Radeon RX series and NVIDIA GeForce series. It can also support pro cards like AMD Radeon Pro and NVIDIA Quadro GPUs. The Breakaway Box can significantly accelerate video production workflows and can even be connected to multiple boxes for even greater performance. It also features additional ports for basic connectivity and can support other demanding PCIe cards. With a single-port 40Gbps Thunderbolt 3 interface, it ensures the full 2750 MB/s of PCIe bandwidth is dedicated to the installed card, making it the coolest and quietest add-your-own-card eGPU system available.

Included in box
eGPU Breakaway Box 750ex enclosure
Power cord
0.7-meter Thunderbolt 3 (40Gbps) cable
Documentation

About the Sonnet EGFX Breakaway Box 750EX
TRANSFORM YOUR THUNDERBOLT COMPUTER INTO A GRAPHICS WORKSTATION

Whether you’re editing, rendering, color grading, animating or creating special effects, many of the pro applications you use rely on desktop and workstation graphics (GPU) cards to do the heavy lifting in processing data. Unfortunately, many popular computers are equipped only with integrated graphics or low-power discrete GPUs that bottleneck performance when performing these tasks. Happily, there’s a simple path to greater productivity—add a Sonnet external GPU (eGPU). The eGPU Breakaway™ Box 750 and 750ex Thunderbolt 3 to GPU PCIe card expansion systems boost your eGPU-compatible computer’s graphics performance by connecting a high-performance GPU card to your computer via a single cable.

FUTURE-PROOF UPGRADE

With each new generation of GPU cards, users can look forward to a step (or leap) forward in performance. Less predictable is how much power they will require to operate—better performance frequently requires increased power. For eGPU users, power consumption can be a concern. Don’t limit your future card choices—choose a Sonnet eGPU Breakaway Box 750 or 750ex. Equipped with 750W power supplies, these Sonnet chassis easily support the highest power demands of latest GPUs and have plenty of extra power to support GPU cards from generations to come.

eGPU Breakaway Box 750ex

Includes two 8-pin (6+2 pin) auxiliary power connectors
750W power supply; supports cards requiring up to 375W of continuous power plus an additional 100W peak power
Provides 85W of upstream power (useful for charging your notebook)
AMD approved for the air-cooled editions of the AMD Radeon RX Vega 64, Radeon Pro WX 8200, and WX 9100
Designed and qualified to also support overclocked NVIDIA cards with high peak power requirements
See the list of Supported GPU Cards (PDF)
750ex Model Includes: Integrated hub with four USB 3.2 Gen 1 Type A ports and one Gigabit Ethernet Port

EXPANSIVE GPU CARD COMPATIBILITY

NO COMPROMISE GPU CARD CHOICE

eGPU Breakaway Box 750 systems are designed specifically to accommodate the most power-hungry double-width GPU cards. They support Thunderbolt-compatible cards(1) with popular GPU chipsets—such as AMD Radeon™ RX series (including VEGA GPUs); and NVIDIA® GeForce® series and TITAN GPUs. Even the latest pro cards—AMD Radeon Pro and NVIDIA Quadro® GPUs—are supported! (Note that macOS® supports only AMD GPU cards in eGPU systems, while Windows® supports AMD and NVIDIA cards.) With a GPU card installed, a Breakaway Box functions as a simple plug-in upgrade to significantly accelerate the demanding needs of your video production workflow.

4K TO 8K WORKFLOWS – CONNECT TWO OR MORE BREAKAWAY BOXES

Many task times on supported applications—such as Adobe® Premiere® Pro, DaVinci Resolve™, and Maxon Cinema 4D™, to name a few—can be cut significantly with one eGPU Breakaway Box connected. But, for computers with multiple Thunderbolt ports, times can be slashed when two, three, or four Breakaway Boxes are employed. Connecting one or more eGPUs can multiply your computer’s graphics processing power, enabling it to handle 4K, 5K, 6K, and 8K workflows more efficiently. Plus, a computer’s onboard discrete GPU also contributes to the aggregate performance.

MORE PORTS, ADDITIONAL FUNCTIONALITY: EGPU BREAKAWAY BOX 750EX

Is your computer short on ports for basic connectivity? Step up to the eGPU Breakaway Box 750ex to add four 5Gb/s USB 3.2 Gen 1 Type A ports to connect peripherals, plus an RJ45 Gigabit Ethernet port for a wired network connection. The 750ex features a dual Thunderbolt controller design, enabling it to support both peripherals and GPU card through the single Thunderbolt connection to your computer.

DESIGNED FOR GPU CARDS, ALSO SUPPORTS OTHER DEMANDING PCIE CARDS

The Breakaway Box’s single x16 PCIe 3.0 slot accommodates full-length, double-width cards, and its 750W power supply supports trouble-free operation. Its single-port 40Gbps Thunderbolt 3 interface ensures the full 2750 MB/s of PCIe bandwidth(2) is dedicated to the installed card.

COOLEST & QUIETEST ADD-YOUR-OWN-CARD EGPU SYSTEM AVAILABLE

With its large variable-speed temperature-controlled fan that quietly and effectively cools the installed card, the eGPU Breakaway Box can be comfortably used in noise-sensitive working environments.

GRAPHIC-INTENSIVE GAMING SUPPORT

There’s no need for you to carry a heavy, loud, and hot-running gaming laptop to have a great gaming experience—just plug in a Breakaway Box and add the GPU power you want when you need it! A Breakaway Box is ideal for empowering graphic-intensive gaming on an Intel® processor-based MacBook Air® or 13-inch MacBook Pro®, Ultrabook™ and other thin/light notebook computers that otherwise would deliver a poor gaming experience. Accelerated graphics can either be displayed on one, two, or more external monitors, or on your notebook’s own display panel(4). Best of all, you can upgrade the GPU card in the Box to keep up with the latest in GPU technology (unlike with gaming laptops).

COMPATIBILITY
Mac Compatibility
macOS Big Sur compatible
Mac with Thunderbolt 3 ports and macOS 10.13.6+ Automatically accelerates AMD RX eGPU connected monitors, and games and select apps Run on those monitors(3)
macOS drivers for NVIDIA GPU cards are not compatible with Thunderbolt Technology
One eGPU Breakaway Box (WX 9100, for example) supports up to six external 4k monitors @60Hz
Mac with Thunderbolt 3 ports and macOS 10.14.6+ (Mac mini see Tech Note 10 below) Additional Features: Support added for AMD RX 560 and AMD RX 590 GPUs
Windows 10 support under Parallels Desktop for Mac(4)
Support for two eGPU Breakaway Box eGPUs and up to twelve external 4k monitors @60Hz
Mac with Thunderbolt 3 ports and macOS 10.15.7+ Additional Features: Support added for AMD RX 5500, 5500 XT, 5600, 5600 XT, 5700, 5700 XT
Apple® M1 Macs do not support eGPUs Supports VIVE and VIVE Pro with AMD Radeon RX 480 or better(5)
External GPUs not supported by Thunderbolt 2 or Thunderbolt equipped Macs(6)
External GPUs not supported on Windows 10 under Boot Camp
Certified with all generation Thunderbolt Macs to support Thunderbolt- compatible non-GPU cards, such as AVID HDX(7) and
Windows Compatibility Windows PC with a Thunderbolt 3 or Thunderbolt 4 port
GPU card use requires an eGPU-enabled Windows PC
Windows 10 (64-bit Edition, Version 1909 or greater)
Supports VIVE and VIVE Pro with NVIDIA GTX 1060 or AMD Radeon RX 480 or better(5)
Monitor Compatibility 1080P monitors using DP or HDMI ports
4K and 5K monitors using DP or HDMI ports
4K, 5K, and 6K Thunderbolt 3 monitors require a GPU card with USB-C output(11)
LG UltraFine 4K and 5K displays
Apple Pro Display XDR 6K
49” 5120×1440 Dual QHD monitors using a DP port: Dell Ultrasharp 49 Curved Monitor U4919DW
LG 49 inch 32:9 UltraWide Dual QHD IPS Curved LED Monitor 49WL95C-W
Philips Brilliance 32:9 Superwide Curved LCD Display 499P9H/27
Samsung 49” CRG9 Dual QHD Curved QLED Gaming Monitor LC49RG90SSNXZA
8K displays are compatible with Windows(10), but not currently compatible with macOS
HARDWARE
Warranty 2-year
Form Factor Desktop external GPU system
External Connectors
Part No. GPU-750WEX-TB3 One Thunderbolt 3 port
Power (C14-type)
Four USB Type A
One RJ45
Internal Connectors Two 8-pin (6+2 pin) power connectors
Expansion Slot One x16 mechanical (x4 electrical, Thunderbolt 3 spec) PCIe 3.0
PCIe Card Supported One full-length, full-height, double-width PCIe card
Controllers Thunderbolt/USB 3 – Intel JHL7440
Gigabit Ethernet – Realtek RTL8153B
Power Supply Universal 750W, 100-240V AC, 50-60 Hz
Supports cards requiring up to 375W of continuous power plus an additional 100W peak power
Power Delivery Provides laptop charging up to 85W
Standy Power(9) Consumes 8.5W (sleep) / 14W (idle)
Operating Temperatures 0˚C to 35˚C (32˚F to 95˚F)
Dimensions (WxDxH) 7.25 x 13.38 x 8 in. (18.5 x 34.0 x 20.2 cm)
Weight 7.1 lbs (3.2 kg)
Compliance RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2

Includes two 8-pin (6+2 pin) auxiliary power connectors
750W power supply; supports cards requiring up to 375W of continuous power plus an additional 100W peak power
Provides 85W of upstream power (useful for charging your notebook)
AMD approved for the air-cooled editions of the AMD Radeon RX Vega 64, Radeon Pro WX 8200, and WX 9100
Designed to also support overclocked NVIDIA cards with high peak power requirement
