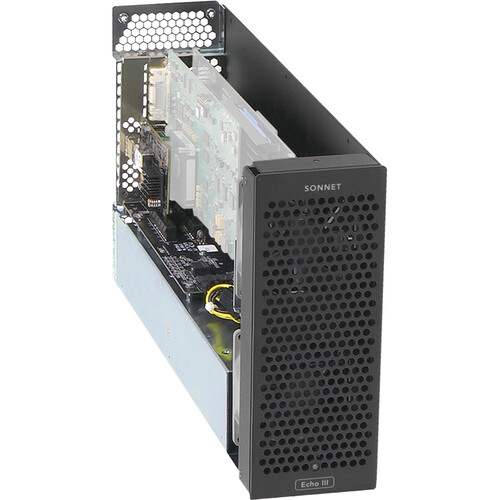

Sonnet DuoModo Echo III Module

Overview
The DuoModo™ Echo™ III Module is a versatile expansion module that allows users to connect up to three full-height, full-length PCIe cards to their computer. It features a built-in 400W power supply with a 75W auxiliary power connector, making it compatible with power-hungry, non-GPU cards such as Avid Pro Tools | HDX. The module also has quiet dual Noctua fans and a Thunderbolt 3 interface, providing 2750 MB/s of PCIe bandwidth to the installed GPU card. It is compatible with both Apple® M1 and Thunderbolt 4 computers and comes with a 2-year product warranty and free lifetime customer technical support.

If your work involves graphics-intensive tasks such as video editing, rendering, or special effects, the DuoModo eGPU Module is the perfect solution. It allows you to boost your computers graphics performance by connecting a high-performance desktop or workstation GPU card through a single cable. This eliminates the need for a desktop or workstation with a dedicated GPU, providing a simple and efficient way to increase productivity. Designed and made in the USA, the DuoModo eGPU Module is a reliable and powerful tool for any graphics workstation.

Included in box
Echo III Module
Power cord
0.7-meter Thunderbolt 3 (40Gbps) cable
ThunderLok 3 Thunderbolt Connector Retainer Clip
Mounting screws
Documentation

About the Sonnet DuoModo Echo III Module
The DuoModo™ Echo™ III Module connects up to three PCIe cards to computers without card slots. The module supports three full-height, full-length Thunderbolt™-compatible non-GPU PCIe cards; provides 400W of power for the most demanding of PCIe cards, including qualification from Avid for Pro Tools | HDX PCIe cards; features quiet, dual temperature-controlled Noctua fans rated at 17 dbA; and connects through super fast 40Gbps Thunderbolt interface.

GRAPHICS WORKSTATION POWER

If your workflow includes video editing, rendering, color grading, animating or creating special effects, many of the pro applications you use rely on desktop and workstation graphics (GPU) cards to do the heavy lifting in processing data. Unfortunately, many popular computers are equipped only with integrated graphics processors or low-power discrete GPUs that provide less than ideal performance. Happily, there’s a simple path to greater productivity—add a Sonnet external GPU (eGPU). The DuoModo eGPU Module Thunderbolt to GPU PCIe Card Expansion System boosts your eGPU-compatible computer’s graphics performance by connecting a high-performance desktop or workstation GPU card to your computer via a single cable.

Mac Compatibility Mac (Intel®) with Thunderbolt 3 ports
Mac (M1) with PCIe cards that have M1 compatible drivers
Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB-C) to
Thunderbolt 2 Adapter plus a Thunderbolt 2 cable (both sold separately)
macOS 10.12.6
macOS® 10.12.6+
macOS Big Sur compatible
Windows Compatibility PC with Thunderbolt 3 or Thunderbolt 4 ports
Windows 10 (64-bit Edition Version 2004 or greater, see note)
Important Note: Windows computers require the latest BIOS and Thunderbolt drivers to support this product.
Check with your computer manufacturer for update information.
Linux Compatibility Linux® computer with Thunderbolt 3 or Thunderbolt 4 ports
Linux Kernel 5.0+
Form Factor Expansion system module
External Connectors Two Thunderbolt 3 ports
Power (C14-type)
Internal Connector 6-pin Mini-Fit Jr (same type as on legacy Mac Pro motherboard;
provides up to 75W of power for PCIe cards that require supplemental power)
Expansion Slots (Facing Rear, Left to Right) One x8 mechanical (x8 electrical) PCIe 3.0
One x16 mechanical (x8 electrical) PCIe 3.0
One x8 mechanical (x4 electrical) PCIe 3.0
PCIe Cards Supported One full-length, full-height, double-width PCIe card, plus one single-width card or
Three full-length, full-height, single-width PCIe cards
Power Supply Universal 400W, 115-230V AC, 50-60 Hz(8)
Operating Temperature 0ºC to 35ºC (32ºF to 95ºF)
Dimensions (WxDxH) 3.3 x 16.6 x 8.5 in. (8.4 x 42.2 x 21.7 cm)
Weight 4.95 lbs (2.25 kg)
Compliance RoHS 3 (Directive 2015/863)
IEC62368-1 and IEC62368-2

3-slot Thunderbolt to PCIe Card Expansion Module
Three Versatile PCIe Slots
Supports Three Full-height, Full-length PCIe Cards
One x16 Plus Two x8 PCIe 3.0 Slots
Supports Every Thunderbolt-compatible non-GPU Card
AVID QUALIFIED – Supports up to Three Avid Pro Tools | HDX PCIe Cards
Built-in 400W Power Supply with 75W Auxiliary Power Connector
Supports Power-hungry, non-GPU Cards Including Avid HDX
Powers On and Off Automatically with Connected Computer
Quiet Fans
Dual Noctua Fans Offer Ultra-quiet Operation
Temperature-controlled, Variable-speed
Rated at 17 dbA
Thunderbolt 3 Interface
Two Thunderbolt 3 Ports
40Gbps Thunderbolt 3 Interface Offers 2750 MB/s of PCIe Bandwidth to the Installed GPU Card
Compatible with Apple® M1 and Thunderbolt 4 Computers
Thunderbolt 3 (40Gbps) Cable Included
ThunderLok 3 Thunderbolt Connector Retainer clip Included
2-year Product Warranty
Free Lifetime Customer Technical Support
Designed and Made in the USA
