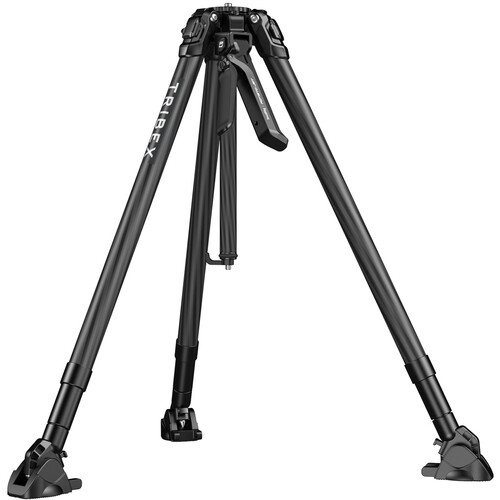

SmallRig x Potato Jet Tribex CF Tripod – No Tripod Head

Overview
The SmallRig x Potato Jet TRIBEX Hydraulic Carbon Fiber Tripod 4858 features X-Clutch hydraulic technology for instant single-action extension of all legs, allowing for leveling in seconds. The compact design fits perfectly in standard luggage and works with 3/8”-16 Threaded Flat Base Head. Please Note: This product does not include the tripod head, camera, or lens.

This tripod is designed for professional outdoor videography, offering swift and convenient operation. Constructed with carbon fiber, it ensures a lightweight design while providing exceptional stability and a high load-bearing capacity of 25kg (55lbs). The tripod also features a quick-lock design for easy height adjustments, detachable Allen wrench for camera equipment assembly/disassembly, and compatibility with various accessories for seamless adaptation to different terrains.

Summary
Tripod Head Type: Fluid Head
Max Payload: 20-30kg
Leg Section: 3 Section
Spreader Type: No Spreader
Head Fitting: 65mm
Material:
Aluminium
Carbon Fibre
Included in box
1x Tripod
1x Storage Bag
1x Smartphone Holder
1x Allen Wrench
1x Guarantee Card

About the SmallRig x Potato Jet Tribex CF Tripod – No Tripod Head
Please Note: This product does not include the tripod head, camera or lens.

SmallRig x Potato Jet TRIBEX Hydraulic Carbon Fiber Tripod 4858 is the SmallRig x Potato Jet TRIBEX Hydraulic Carbon Fiber Tripod Kit (ID:4259) without video head version, designed for professional outdoor videography, offering swift and convenient operation. Featuring X-Clutch hydraulic technology, squeezing a single clutch allows all legs to unfold rapidly, adjust the angle, and automatically lock in just one second, providing photographers with a seamless experience. The clutch can also be adjusted to 45° and 90° to accommodate various shooting scenarios. Constructed with carbon fiber, both the legs and centre column ensure lightweight design while delivering exceptional stability and high load-bearing capacity of 25kg (55lbs); it weighs only 2.6kg (5.7lbs).

The tripod operating altitude ranges from 15cm (5.9in) to 155cm (61.0in), and a compact storage length of 66cm (26.0in). The centre column features a quick-lock design for easy height adjustments, with a detachable Allen wrench built into the other side of the hook for convenient camera equipment assembly/disassembly, and the option for low-angle shooting at a minimum height of 15cm (5.9in). The compact design of the tripod allows it to fit in any standard luggage (28″). The tripod also features three 1/4″-20 threaded holes for attaching accessories like magic arms, along with a built-in flat head screw for convenient camera installation and removal. The tripod also includes quick-release rubber feet with integrated spikes, allowing for seamless adaptation to various terrains.

Innovative Patented X-CLUTCH Hydraulic Technology

Speed is Key
Patented Clutch Design with single-action leg deployment and self-locking system

Ultimate Portability
Designed to Fit a 28″ Luggage

66cm / 26in Tripod Storage Length

Precision Fit
Fits 3/8″-16 flat base fluid heads

Balancing in Seconds
Set up and level your camera in one smooth motion

The hydraulic structure remains stable from -20°C to 60°C / -4°F to 140°F. Data sourced from SmallRig lab

Quality Tested 20000+
Tripod leg extension and locking tests, maintaining secure load-bearing capacity

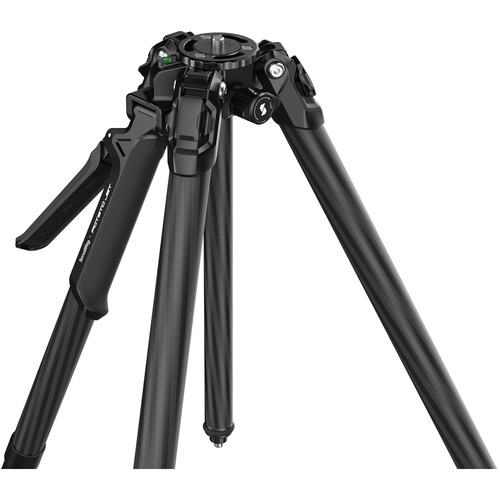

Intuitive CLUTCH Design
Ergonomically shaped X-Clutch ensures effortless control and comfortable one-handed operation

No Mounting Limits
Compatible with flat base mounts with 3/8″-16 threaded holes

45mm / 1.77in Video Head
65mm / 2.56in Head
75mm / 2.95in Head

Detachable Center Column for Ultra-Low Shooting

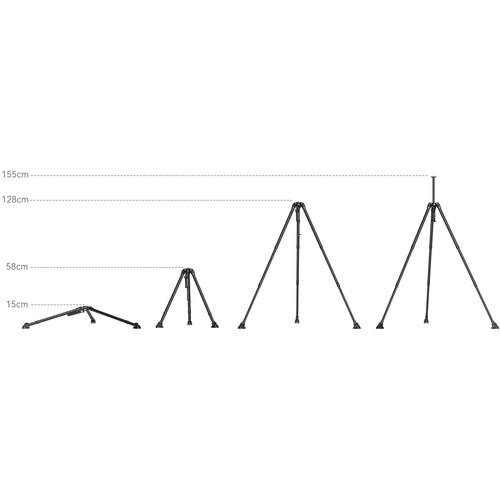

15cm to 155cm / 5.9in to 61in Working Height

Lightweight carbon fiber legs ensure stability and durability

Outstanding Combination

2-in-1 Quick Release Hook and Allen Wrench
Flat Feet with Built-in Metal Spikes
Backpack-Style Storage Bag

Note:
1. Before shooting, make sure the head and tripod locking status are in normal condition.

2. Avoid use in sandy environments to prevent the risk of damage.

3. After using the short centre column, mounted on the centre column, need to ensure that the locking status.

4. Max payload of centre column: 8kg / 16.6lb (centre column raised, leg angle at 23°, height at 155cm / 61.0in).

5. Max payload of tripod: 25kg / 55lbs (centre column not raised, leg angle at 23°, height at 128cm / 50.4in. The weight capacity of the tripod is not the absolute limit; it varies depending on the type of equipment, lenses used, accessories attached, and changes in the centre of gravity).

6. After soaking in water, it needs to be dried before use.

Product Dimensions 660.0 × 140.0 × 120.0 mm / 26.0 × 5.5 × 4.7 in
Package Dimensions 880.0 × 175.0 × 175.0 mm / 34.6 × 6.9 × 6.9 in
Product Weight 2.6 ± 0.1 kg / 5.7 ± 0.2 lbs
Package Weight 4.3 ± 0.1 kg / 9.5 ± 0.2 lbs
Working Height 15.0 – 155.0 cm / 5.9 – 61.0 in
Storage Length 66.0 cm / 26.0 in
Legs Diameter 29.5 mm – 25.5 mm – 22 mm / 1.16 in – 1.0 in – 0.86 in
Head Base Diameter 60.0 mm / 2.36 in
Leg Angles 23°, 55°, 81°
Material(s) Carbon Fiber, Aluminium Alloy, POM, Stainless Steel, Silicone
Important Notes
Ensure all leg locks are fully secured before shooting.
Avoid use in sandy environments (e.g., deserts, beaches) to prevent damage.
When using the centre column for ultra-low angle shooting, confirm the lock is engaged.
Centre column max load 12kg / 26.4lb (extended column, 23° leg angle, 155cm / 61in height, vertical load).
Tripod max load 25kg / 55.1lb (non-extended column, 23° leg angle, 128cm / 50.4in height, vertical load).
Reminder Load capacity varies based on equipment type, attached lenses, accessories, and center of gravity.
Specified limits are not absolute extremes.
Dry the tripod thoroughly after exposure to water.

The X-Clutch hydraulic technology for instant single-action extension of all legs.
Leveling in seconds.
The compact design fits perfectly in standard luggage.

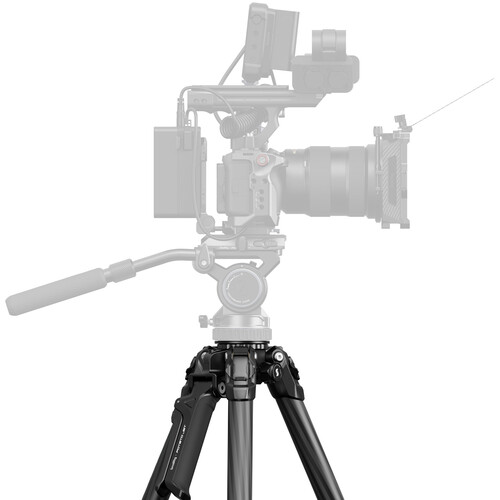

Work With 3/8”-16 Threaded Flat Base Head
