SmallRig VB99 Pro Mini V Mount Battery

Overview
The SmallRig VB99 Pro mini V Mount Battery 4292 is a powerful and portable option for charging your camera equipment. Its BMS intelligent chip supports 100W (Max.) fast charging, allowing for a fully charged battery in just 2 hours. The imported top-class large-capacity LG battery cell ensures durability and stability through repeated charging and discharging. With its highly integrated design, this battery is about 70% the size of a normal V-mount battery, making it lighter and more portable.

Featuring 2 USB-C, 1 D-Tap, 1 USB-A, 1 DC 8V, and 1 DC 12V interfaces, this battery is equipped with a shunt design that allows for simultaneous fast charging of both USB-C and USB-A devices. Made of sturdy aluminum alloy and fireproof PC, it is also drop-proof and features a durable, scratch-resistant PC and acrylic cover on the front. The TFT color screen displays battery status clearly and accurately, while the customized intelligent BMS system provides multiple protections against over-current, short-circuit, and other potential hazards. Overall, the SmallRig VB99 Pro mini V Mount Battery 4292 is a safe and powerful option for powering all your camera equipment without the need for a V-mount plate.

Summary
Battery Capacity: 99Wh
Battery Capacity: 99-150Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Voltage: 14.8v
Included in box
1x VB99 Pro mini V Mount Battery
1x 100W USB-C Charging Cable
1x User Manual
1x SmallRig Sticker

About the SmallRig VB99 Pro Mini V Mount Battery
SmallRig VB99 Pro mini V Mount Battery 4292 is about 70% the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / PPS etc.), bi-directional 100W (Max.) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc. Such interfaces as D-tap / USB-C / USB-A / DC 8V / DC 12V / BP electrode are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / LED video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and a TFT digital display for you to keep track of the battery’s status at all times. Built-in premium high-performance battery (no inflated capacity), which is rechargeable and stable, and meets MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards. Its shell is made of sturdy, drop-proof aluminum alloy and fireproof PC and features durable, cratch-resistant PC and acrylic cover on the front, with a TFT color screen displaying battery status clearly and accurately. Overall, this item is safe and powerful enough for you to capture every moment without burden!

Material(s) Aluminum Alloy, Fireproof PC
Capacity 14.8V 6.7Ah 99.16Wh
Rated Power 100W
BP / D-tap Input 8A (Max.)
BP / D-Tap Output 14.8V / 14A (Max.)
USB-A Output QC2.0 / QC3.0 5V / 3A, 9V / 3A, 12V / 2.5A（Max.）
USB-C1 Input / Output
Input / Output: 100W (Max.)
PD3.0 / QC2.0 / QC3.0 / PPS 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.)
USB-C2 Output
Output: 100W (Max.)
PD3.0 / QC2.0 / QC3.0 / PPS 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 5A (Max.)
DC1 Output 8V / 3A (Max.)
DC2 Output 12V / 3A (Max.)
Size of the DC connectors DC 8V port: 5.5mm*2.1mm
DC 12V port: 5.5mm*2.5mm
Cut-off Voltage 11V
Optional Charging Method 16.8V D-TAP charger, USB-C charger
such as GaN charger with PD fast charging tech (up to 100W)

BMS intelligent chip supports 100W (Max.) fast charging, fully charged in 2 hours;
Imported top-class large-capacity LG battery cell endures repeated charging and discharging, safe and stable;
Highly integrated design, about 70% the size of a normal V-mount battery, lighter and more portable;

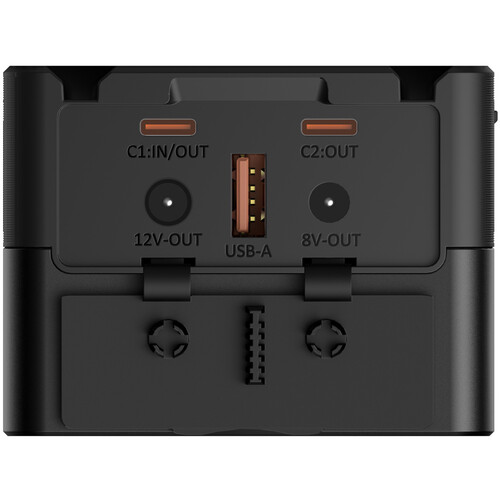

Interfaces: 2 USB-C, 1 D-Tap, 1 USB-A, 1 DC 8V, 1 DC 12V, each with a shunt design to allow simultaneous USB-C and USB-A fast charging;
Aluminium alloy and fireproof PC, sturdy and drop-proof;
Durable, cratch-resistant PC and acrylic cover on the front;
TFT colour screen displays status clearly and accurately.
