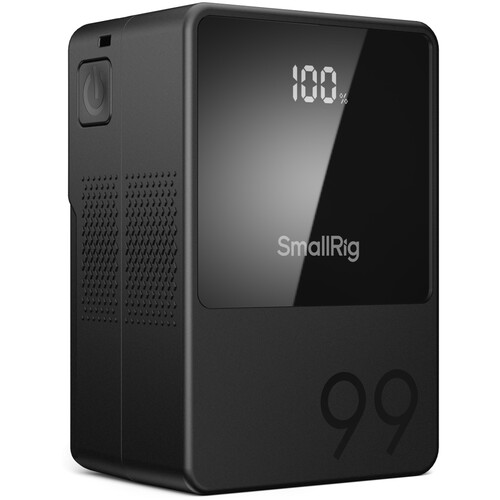

SmallRig VB99 Mini VM Battery

Overview
The VB99 mini V Mount Battery is designed to be compact and lightweight, making it easy to carry around. It is approximately 30% smaller than traditional V-mount batteries, making it a great choice for the film industry. It features an intelligent BMS chip for safe and efficient use, supporting various fast-charging protocols and bi-directional 45W (Max) USB-C PD fast charging. This battery is compatible with a range of devices such as cameras, camcorders, monitors, wireless video transmitters, and video lights. It also has a practical OLED display for precise control, allowing you to keep track of its working status at all times. With a premium li-battery and built-in BMS chip, this battery offers both quality and safety.

The VB99 mini V Mount Battery is significantly smaller than traditional V-mount batteries, making it lightweight and portable. Its highly integrated design includes a fast charging protocol chip, MCU, and voltage boost control, allowing for a wide range of fast charging protocols and bi-directional 65W (Max) USB-C PD fast charging. It also has multiple protections against over-current, short-circuit, over-temperature, and over-voltage. This battery offers various interfaces for efficient charging and powering of devices, without the need for a V-mount plate. Its BMS chip has a 16bit ADC and power meter algorithm, along with an OLED digital display for easy monitoring. With a built-in premium li-battery that meets international standards, the VB99 mini V Mount Battery is a reliable and safe choice for capturing every moment without any burden.

Summary
Battery Capacity: 99Wh
Battery Capacity: 99-150Wh
Battery Indicator: Yes
Battery Mount / Type: V Mount
Battery Technology: Li-ion
Voltage: 14.8v
Included in box
1 x VB99 Mini V-Mount Battery
1 x User Manual

About the SmallRig VB99 Mini VM Battery
VB99 mini V Mount Battery is about 70% of the size of a normal V-mount battery, given its highly integrated design which takes up less space, making it lighter and more portable! The highly integrated (fast charging protocol chip + MCU + voltage boost control) BMS chip supports a wide range of mainstream fast charging protocols (PD / QC / SCP / PPS / APPLE-2.4A etc.), bi-directional 65W (Max) USB-C PD fast charging, as well as adaptive voltage boost/ adaptive current regulation etc.! In addition, its customized intelligent BMS system ensures faster and safer charging by providing multiple protections against over-current / short-circuit / over-temperature / over-voltage etc.

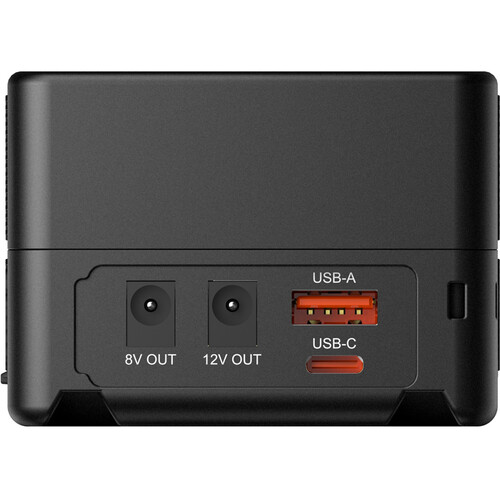

Such interfaces as USB-A / USB-C / D-tap / DC 8V / DC 12V / V Mount are also included for efficient charging / powering of camera / camcorder / monitor / wireless video transmitter / video light / mobile phone / laptop etc., without using a V-mount plate to convert! The BMS chip has a 16bit ADC / power meter algorithm, together with an MCU and an OLED digital display for you to keep track of the battery’s status at all times. Built-in premium high-performance battery (no inflated capacity), which are rechargeable and stable, meet MSDS / UN38.3 / IEC62133 / UL2054 / UL62368 and other internationally recognized standards, allowing you to capture every moment without burden!

Material Fireproof PC Material
Capacity 14.8V 6.7Ah 99Wh
Rated Total Power Discharge: 99W
Charge: 65W
V-Mount / D-Tap Input 8A (Max)
V-Mount / D-Tap Output 14.8V / 14A (Max)
USB-A Output QC2.0 / AFC/FCP: 5V/3A, 9V/3A, 12V/2A
QC3.0: 4.2-9V/3A, 9-12V/2A
SCP: 4.5V/5A, 5V/4.5A
DCP-1.5A: 5V/1.5A
APPLE-2.4A: 5V/2.4A
USB-C Input/Output PD3.0: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/2.25A
QC2.0/AFC/FCP: 5V/3A, 9V/3A, 12V/2A
QC3.0: 4.2-9V/2A, 9-12V/2A
SCP: 4.5V/5A, 5V/4.5A
DCP-1.5A: 5V/1.5A
PPS: 3.3-16V/3A
APPLE-2.4A: 5V/2.4A
DC1 Output 8.0V/Max3A
DC2 Output 12V/Max3A
Size of the DC connectors DC 8V port: 5.5mm*2.1mm
DC 12V port: 5.5mm*2.5mm
Discharge Cut-Off Voltage 11V
Optional Charging Methods 16.8V D-Tap Charger, USB-C Charger (Works with USB-C chargers that support PD fast charging, such as GaN chargers, up to 65W)
Product Dimensions 107.0 × 73.0 × 53.0 mm
Net Weight 550 g ±10 g

Compact and lightweight to be carried around

Designed to lighten the burden of the film industry, the VB series are approximately 30% smaller than traditional V-mount batteries!

Intelligent BMS chip for efficient and safe use

A built-in highly integrated BMS chip takes up less space while supporting varied fast-charging protocols and bi-directional 45W (Max) USB-C PD fast charging!

Various interfaces for high compatibility

Compatible with camera/ camcorder / monitor / wireless video transmitter / video light, etc.

Practical OLED display for precise control

keeps track of the battery’s working status at all times!

Premium li-battery with guaranteed quality and safety

Built-in high-capacity premium li-battery, a double guarantee of quality and performance!
