SmallRig NP-F Battery Adaptor Mount Plate Kit

Overview

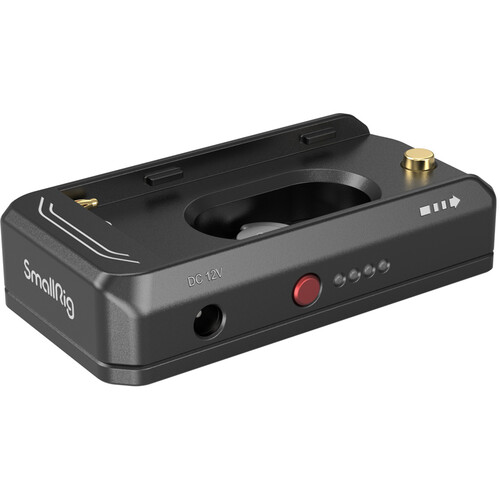

The SmallRig NP-F Battery Adapter Mount Plate Kit is a versatile accessory that allows for external power supply for various mirrorless cameras, including the Canon EOS R5/R5C and BMPCC 4K/6K/6K Pro. It is compatible with NP-F type batteries and comes with a DC to LP-E6NH dummy battery power cable. The plate is made of durable aluminium alloy and has gold-plated electrical contacts for better conductivity.

With its dual output of 7.4V and 12V, as well as a USB-C port with 36W power, this adapter provides efficient and long-lasting power supply. It also features automatic wake-up and sleep modes to protect the camera from damage. Each output port has short circuit and high current protection for added safety. The kit also includes LED indicators for easy monitoring of charging and battery status.

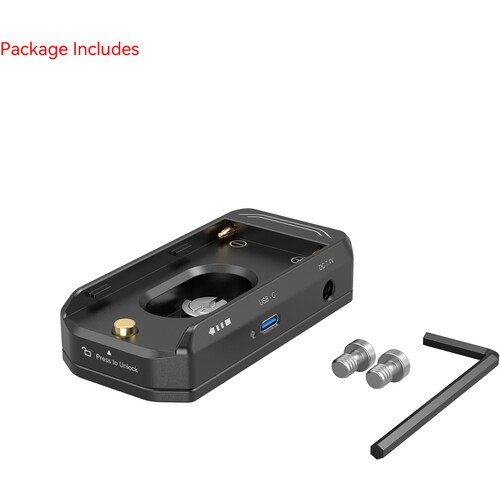

Included in box
1 x 3168B NP-F Battery Adapter Mount Plate
1 x DC5521 to LP-E6NH Dummy Battery Power Cable
1 x 1/4”-20 Screw
1 x Allen Wrench
1 x User Manual

About the SmallRig NP-F Battery Adaptor Mount Plate Kit
SmallRig NP-F Battery Adapter Mount Plate Kit for Canon EOS R5 / R5C and BMPCC 4K / 6K (Advanced Edition) 4340 is designed to enable NP-F batteries on the market (including Sony original and third-party batteries) to power BMPCC 4K/6K, Canon R5 C, and various mirrorless cameras, the set can achieve long-lasting power supply. The NP-F Battery Plate is made of aluminum alloy with gold-plated electrical contacts to be more durable and conductive. The plate has a self-locking button for quick and secure battery installation and a 1/4”-20 threaded hole for easy attachment to the cage. There are 36W 7.4V / 12V DC output on its sides and a 36W USB-C port, which can output current or charge an NP-F battery. All ports have short circuit protection and automatic wake-up and sleep functions. In addition, this item features LED lights indicating USB charging and discharging state, battery connection, and battery life.

Compatibility:

3168B NP-F Battery Adapter Mount Plate: Sony NP-F battery
LP-E6NH Dummy Battery Power Cable: Canon EOS 5D Mark II / 5D Mark III / 5D Mark IV / 6D / 6DMark II / 7D / 7DMark II / 60D / 60Da / 70D / 80D / 90D / XC10 / XC15 / 5DS / 5DSR / R / R5 / R6 / R5C / R7 / R6 Mark II 和BMPCC 4K / 6K

Product Dimensions 94 x 47 x 23mm（3168B)
105 x 38.4 x 21mm(DC5521 to LP-E6NH Dummy Battery Power Cable)
Package Dimensions 101 x 66 x 55mm
Product Weight 150 ± 5g
Package Weight 189.2 ± 5g
Material(s) CNC+ABS

Compatible with NP-F type batteries, paired with DC to LP-E6NH dummy battery power cable, providing external power supply for Canon EOS R5 / R5C, BMPCC 4K / 6K / 6K Pro and various mirrorless cameras
Aluminium alloy and gold-plated electrical contacts make it more durable and conductive
Allows to access two devices with DC 7.4V and 12V dual output Maximum DC and USB-C output: 36W
The USB-C interface supports bi-directional input and output with 36W power
Features automatic wake-up and sleep modes to avoid damage to the camera
Comes with USB-C mode and power indicators for easy viewing of charging and state of charge
Each output port features short circuit and high current protection to ensure safety during using
