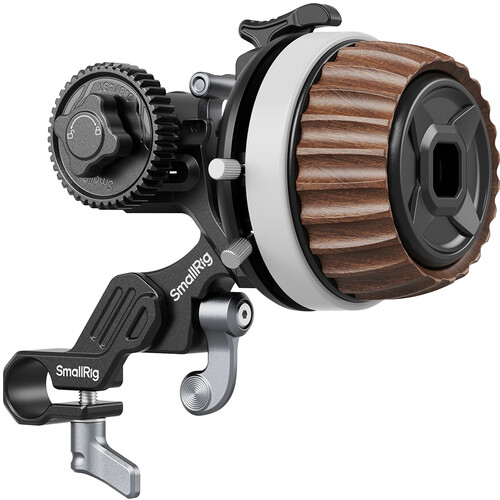

Smallrig Modular Follow Focus F60

Overview
Wide-Range Stepless Damping Adjustment: Customizable damping (0.6kgf-1.8kgf) for smooth, cinematic focus control. Zero-Backlash Sync Drive: Ensures precise focus accuracy for professional results. 3-Step Quick Switch for Reversible Rotation: Easily switch rotation directions for flexible shooting. Classic Wooden Texture Design: Combines functionality with a timeless, professional aesthetic. Essential for Cinematographers: Enhance your workflow with this precision focus gear unit.

SmallRig Modular Follow Focus F60 5163 is engineered for precise and smooth lens focus control during video shooting. Notably, its optimized core drive mechanism ensures zero-backlash focus tracking for exceptional accuracy. The innovative stepless damping adjustment allows dynamic damping control within a range of 0.6kgf-1.8kgf, catering to users preferences for different lens damping levels. It also supports 3-step quick lens reversal switching and 2-step A / B stops setting and release, along with 360° quick push-pull zoom. This modular follow focus includes a silicon gear (ID: 3852) that directly drives focusing on mirrorless camera lenses through friction. Redesigned for a refined appearance, it offers improved damping adjustment and a wider range of focus angles, significantly enhancing the overall user experience.

Included in box
1x Modular Follow Focus F60
1x Φ15mm Rod
1x 15mm Single Rod Clamp
1x Snap-on Gear Ring
1x Allen Wrench
1x Carrying Bag
1x Operating Instruction
1x User Manual
1x Guarantee Card

About the Smallrig Modular Follow Focus F60
SmallRig Modular Follow Focus F60 5163 is engineered for precise and smooth lens focus control during video shooting. Notably, its optimized core drive mechanism ensures zero-backlash focus tracking for exceptional accuracy. The innovative stepless damping adjustment allows dynamic damping control within a range of 0.6kgf-1.8kgf, catering to users’ preferences for different lens damping levels.

It also supports 3-step quick lens reversal switching and 2-step A / B stops setting and release, along with 360° quick push-pull zoom. This modular follow focus includes a silicon gear (ID: 3852) that directly drives focusing on mirrorless camera lenses through friction. Redesigned for a refined appearance, it offers improved damping adjustment and a wider range of focus angles, significantly enhancing the overall user experience.

Precautions

1.Variations in wood grain colour may occur compared to promotional images.
2.Ensure the silicone gear fits tightly with the lens ring. If slippage occurs with high-damping zoom lenses, check for looseness between the silicone gear and the lens.
3.The silicone gear is compatible only with DSLR and mirrorless lenses. Please remove it before using cinema lenses.

Product Dimensions 132.0 x 85.0 x 67.0mm / 5.2 x 3.3 x 2.6in
Package Dimensions 180.0 x 129.5 x 75.0mm / 7.1 x 5.1 x 2.9in
Product Weight 335.0 ± 5.0g / 11.8 ± 0.2oz
Package Weight 464.0 ± 5.0g / 16.4 ± 0.2oz
Material(s) AL6061, ABS, PC, POM9044, Wood, Silicone, Stainless Steel 304

Wide-Range Stepless Damping Adjustment: Customizable damping (0.6kgf-1.8kgf) for smooth, cinematic focus control.
Zero-Backlash Sync Drive: Ensures precise focus accuracy for professional results.
3-Step Quick Switch for Reversible Rotation: Easily switch rotation directions for flexible shooting.
Classic Wooden Texture Design: Combines functionality with a timeless, professional aesthetic.
Essential for Cinematographers: Enhance your workflow with this precision focus gear unit.
