SmallRig Follow Focus F50

Overview

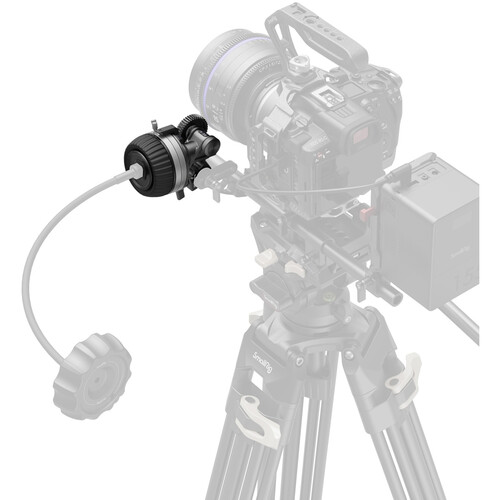

SmallRig Follow Focus F50 4745 provides precise focus control for video production with its stepless damping lever adjustment ranging from 0.3kgf to 1.0kgf. The zero-backlash sync drive ensures accurate focus control, while the compact silicone handwheel offers a non-slip grip for smooth operation. The friction and gear-driven dual-drive focus system enhances versatility, making it ideal for various shooting scenarios.

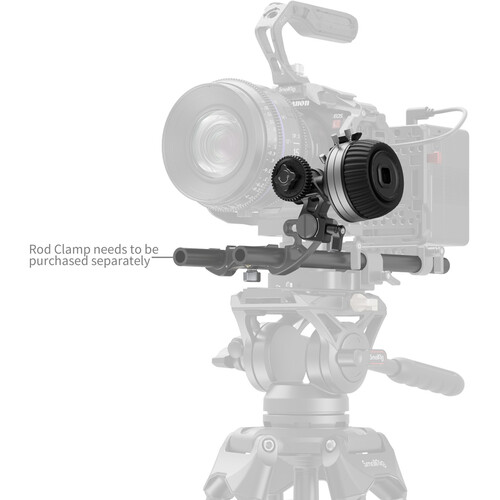

The follow focus comes with a silicone gear for friction-driven focus on mirrorless lenses and can be mounted using a Φ15mm rod and a single rod clamp. It is important to ensure a tight fit between the silicone gear and the lens ring to prevent slippage, especially with high-damping zoom lenses. Additionally, the silicone gear is only compatible with DSLR and mirrorless lenses, so it should be removed before using cinema lenses.

Included in box
1x Follow Focus F50
1x Φ15mm Rod
1x 15mm Single Rod Clamp
1x Snap-on Gear Ring
1x Allen Wrench
1x Carrying Bag
1x Operating Instruction
1x User Manual
1x Guarantee Card

About the SmallRig Follow Focus F50
SmallRig Follow Focus F50 4745 delivers precise focus control for video production. Its ingenious adjustable driving gap design eliminates backlash, ensuring a seamless focus experience. The one-touch stepless damping lever allows dynamic damping control within a range of 0.3kgf–1.0kgf, catering to diverse lens damping preferences, while 2-step A/B stop switching and 360° swift push-pull zoom enhance versatility.

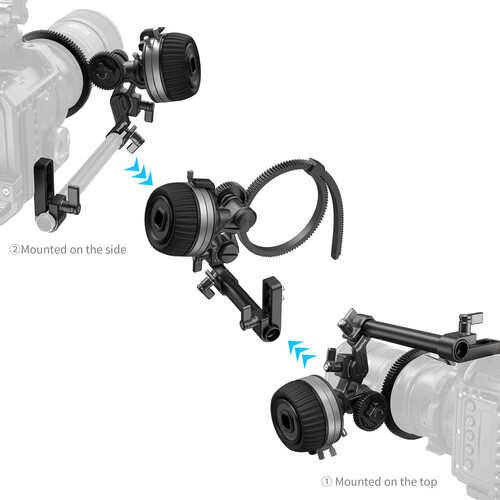

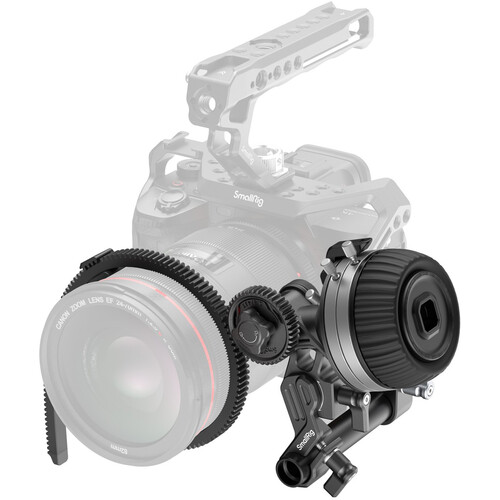

Included is a silicone gear (ID 3852) that enables friction-driven focus for mirrorless lenses, along with a compact silicone handwheel for a non-slip grip and fine-tuned control. This follow focus mounts using a Φ15mm rod and a single rod clamp (ID 1549) on the left or top of the lens, with adjustable angles for flexible configurations. Its modular design ensures a quick and precise setup for handheld, tripod, and various shooting scenarios.

Precautions

Ensure the silicone gear fits tightly with the lens ring. If slippage occurs with high-damping zoom lenses, check for looseness between the silicone gear and the lens.
The silicone gear is compatible only with DSLR and mirrorless lenses. Please remove it before using cinema lenses.

Product Dimensions 117.0 x 80.5 x 62.5mm / 4.6 x 3.2 x 2.5in
Product Weight 290.0 ± 5.0g / 10.2 ± 0.2oz
Material(s) AL6061, ABS, PC, POM9044, Silicone, Stainless Steel 304

Stepless damping lever adjustment: 0.3kgf-1.0kgf
Zero-backlash sync drive for precise focus control
Compact silicone handwheel for non-slip control
Friction and gear-driven dual-drive focus system
