SmallHD Indie 5 RCP2 Control Kit

Overview
Introducing the Indie 5 RED® RCP2™ Kit, the newest addition to our Smart 5 Series of monitors. Despite its compact size and lightweight design, the Indie 5 packs a powerful punch with its advanced features. The hyper-responsive touchscreen display boasts a brightness of 1000 nits and 1080p resolution, providing stunning visuals. With our intuitive PageOS 5 operating system, navigating through your favorite tools has never been easier.

Take full control of your camera with the Indie 5s RED® RCP2™ camera-control functionality. This kit includes a RED® RCP2™ software license and control cables, allowing for real-time configuration of RED® RCP2™ cameras like KOMODO®, DSMC3™, and V-RAPTOR™. The user-friendly controls and essential camera settings are easily accessible on the touchscreen, making it the central command hub for your camera. Whether youre a professional on a budget or just starting out, the Indie 5 is the perfect entry-level monitor with integrated tools for accurate exposure and color control, Look-Around Camera Control, EL Zone, Advanced Teradek RT overlays, and more. Upgrade your filmmaking game with the Indie 5 – the premium 5-inch touchscreen monitor that delivers big on features and performance. Please note, additional Individual Camera Control software licenses are sold separately.

Summary
Screen Size: 5 Inch
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Inputs:
3G-SDI
HD-SDI
HDMI
SD-SDI
Outputs:
3G-SDI
HD-SDI
HDMI
Included in box
1 x Indie 5 16-0525
1 x Camera Control Kit for RED® RCP2™ Cameras (Indie 5) 18-2016
1 x Locking Micro-USB to Locking 5-Pin Adapter (Female) (3.3in / 8.5cm) 17-4308
1 x RED® CTRL 4-pin to SmallHD 5-pin USB Cable CBL-CNTRL-RED-CTRL-36

About the SmallHD Indie 5 RCP2 Control Kit
Introducing the Indie 5 RED® RCP2™ Kit, the latest addition to our Smart 5 Series of monitors. As our smallest and lightest monitor, the Indie 5 packs a punch with its powerful features and sleek design.

With its hyper-responsive touchscreen display, the Indie 5 delivers stunning visuals with a brightness of 1000 nits and 1080p resolution. It also comes equipped with our intuitive PageOS 5 operating system, which provides quick access to all your favorite tools for effortless navigation.

Take control of your camera with the Indie 5’s RED® RCP2™ camera-control functionality. This kit includes our RED® RCP2™ software license and control cables, which enable real-time configuration of RED® RCP2™ cameras such as KOMODO®, DSMC3™, and V-RAPTOR™. Quickly access essential camera settings with our user-friendly controls, and transform your touchscreen into the central command hub of your camera.

Whether you’re a professional on an indie budget or just starting out, the Indie 5 is the perfect entry-level monitor for you. Its integrated tools provide more accurate exposure and color control, Look-Around Camera Control, EL Zone, Advanced Teradek RT overlays, and so much more.

Upgrade your filmmaking game with the Indie 5 – the premium touchscreen 5-inch monitor that delivers big on features and performance.

*Additional Individual Camera Control software licenses are sold separately.

Environmental
Item Weight (oz) 14.4
Height (in) 3.39
Width (in) 5.28
Length/Depth (in) 1.52
Mount Points 6x 1/4-20 Mounting Points
Display
Panel Type Touch-Screen
Resolution 1920 x 1080
Aspect Ratio 16:9
Max Brightness 1000nits
Backlight Type Edgelit
Input Signal
3G-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Input Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Input Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Input Types YCC 4:2:2 @ 12 bits, 8 bit colour in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit colour in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Input Types HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal
3G-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI Output Types YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI Output Types YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI Output Types YCC 4:2:2 @ 12 bits, 8 bit colour in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit colour in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio Output Types HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type

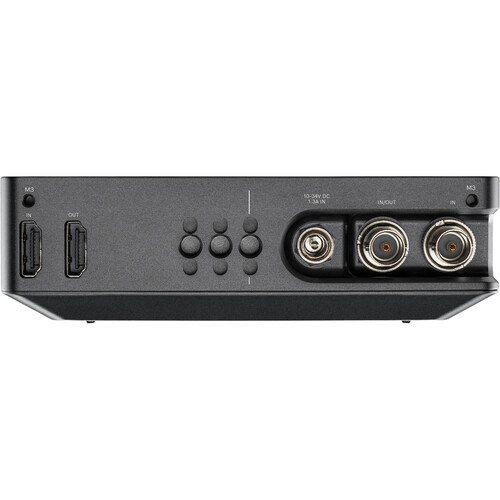

SDI 1x 3G-SDI (In), 1x 3G-SDI (In/Out)
HDMI 1x HDMI 2.0 (4Kp30) [In], 1x HDMI 2.0 (4Kp30) [Out]
Audio 1x 3.5mm Stereo Headphone Jack
Data I/O
Storage Media 1x SD Card Slot
USB 1x Micro USB
Power
Input Barrel Power Input
Software
Pixel Zoom Yes
Focus Assist Yes
Peaking Yes
False Colour Customizable False Colour Overlays
Waveform Customizable 4K Waveform w/Region of Interest Highlighting (Coming Soon)
Custom LUTS 17pt 3D-LUT on Output/Input 33pt 3D-LUT on Output/Input
