SmallHD Cine 7 ARRI Kit

OVERVIEW
The Cine 7 is a top-of-the-line 7-inch on-camera monitor designed specifically for cinematographers. With its high-quality display, wide color gamut, and integrated Teradek RT and Bolt functionality, it offers everything a professional filmmaker needs. It also features ARRI camera control and the ability to display critical follow focus information, making it an essential tool for any production.

The Cine 7 is built to withstand the demands of the industry, with a lightweight aluminum frame and multiple mounting options. It offers various inputs and outputs, including 3G-SDI and HDMI, and can be powered through a 2-pin connector or interchangeable battery brackets. Additionally, its OS3 software provides a user-friendly interface and a range of powerful tools, such as waveform, vectorscope, and 3D LUTS, giving filmmakers the confidence they need to create their best work.

SUMMARY
Screen Size: 7 Inch
Resolution: 1920 x 1200
Inputs:
HDMI Type A
SD/HD/3G-SDI
Outputs:
HDMI Type A
SD/HD/3G-SDI

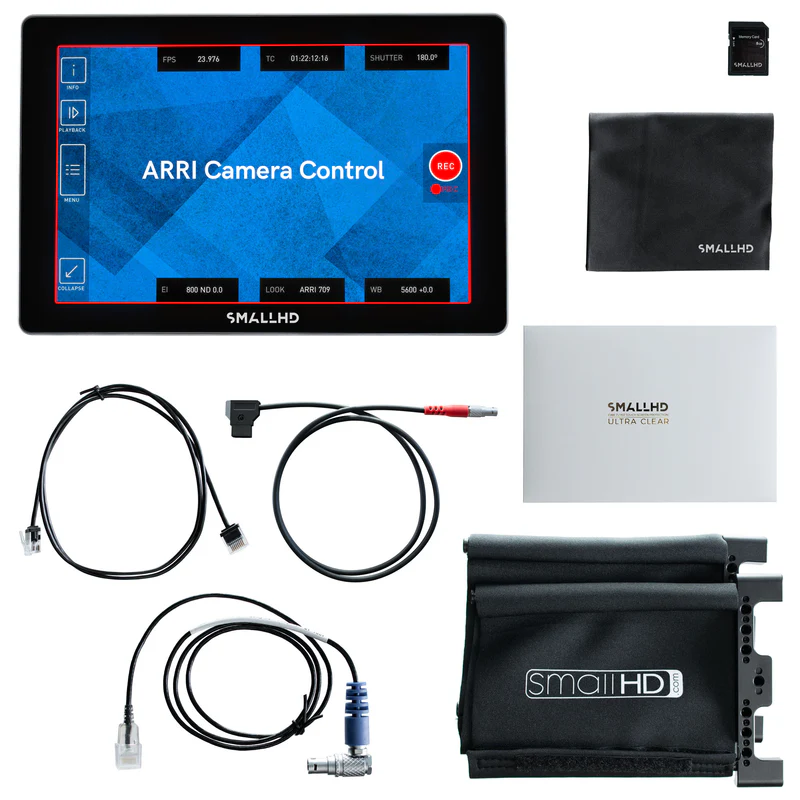

INCLUDED IN BOX
1x Cine 7 Monitor
1x Sony L Series Battery Bracket (Smart 7 Monitor Series) PWR-ADP-C7T-SONY
1x UltraClear Screen Protector ACC-SP-702TOUCH-ULTRACLEAR
1x 7 inch Sun Hood (Smart 7 Monitor Series) ACC-HOOD-C7T
1ARRI Alexa Camera Control Cable (Right Angle) CBL-ETH-ARRI-R-ANGLE-39IN/1M
1x D-Tap to 2pin Power Cable 36in 17-3000
1x Slim Ethernet Cable – 36in CBL-ETH-36
1x Camera Control for ARRI (Software Only) SW-ARRI-CONTROL
1x 8GB Card ACC-SD-CARD-8GB-C10
1x SmallHD Cleaning Cloth ACC-CLOTH-SMALLHD
1x Smart 7 Sunhood ACC-HOOD-SMART7

About The SmallHD Cine 7 ARRI Kit
Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a colour accurate wide-gamut display, cinema camera control, and integrated Teradek RT and Bolt functionality.

Teradek RT Lens Data Overlays

Get critical follow focus information directly on your monitor, including lens focal distance, focal length, iris, zoom and more with CTRL.1 and CTRL.3 controllers.

Industry-leading software toolset

OS3 Software gives creative professionals powerful, data-driven tools at their fingertips. Easily customize and organise tools like Waveform, Vectorscope, False Colour and 3D LUTS, using the revolutionary PageBuilder interface.

Premium Display Quality

Cine 7’s 1800nit, 1080p display with 100% DCI-P3 colour gamut make it the perfect professional monitor for critical eyes.

Built for Professionals

The Cine 7 offers the durability and flexibility required by demanding professionals. With a lightweight milled aluminium frame and several 1/4″-20 mounting points, the 7inch monitor is ready to perform on any rig and in any environment. Cine 7 includes several 3G-SDI and HDMI inputs and outputs, as well as signal cross conversion. Power options include a locking 2-pin connector and interchangeable battery brackets (Gold, V, and Sony L series). An Ethernet port allows for camera control connectivity.

Powered by OS3 Data Driven Confidence

SmallHD OS3 software gives directors and camera operators industry leading imaging tools and a simplified user experience. Customize Scopes, Waveforms, and False Colour how you desire. Apply real-time 3D LUTs quickly and easily. Save time and be more confident creating with this powerful, data-driven tool set.

Display
Panel Type IPS LCD
Size Diagonal 7.02
Resolution 1920 x 1200
Pixel Density (PPI) 322
Aspect Ratio 16:10
Active Area 5.95 x 3.72
Contrast 1000:1
Colour Gamut 100% DCI-P3 Coverage
Colour Depth 8-b Panel with 10-b Scopes
Viewing Angle 8-b Panel with 10-b Scopes
Backlight Type LED
Adjustable Backlight Yes
Input Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30,
1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60,
720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8/10/12/16-bit colour in RGB & YCC 4:4:4: 1080p60, 1080p59.94,
1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100,
720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240,
480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240,
480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30,
1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97,
720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8-bit colour in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25,
2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100,
1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type
SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Power In 2-pin Locking
USB 1x USB 2.0 Micro-B receptacle
Controls
Primary Control Interface Touch Screen
Record/Capture Capture Tool
Power
Connector Type Lemo
Voltage DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max
Recommended Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Overload Protection DC input: Reverse polarity
Battery Types L-Series, V Mount, Gold Mount
Battery Chemistry Li-ion
Battery Charging Time (hours) Monitor does not support the charging of batteries
Environmental
Compliance FCC, IC, CE, RoHS
Operating Temperature 30F to 100F
Storage Temperature 0F to 120F
Height 4.67″ (11.86cm)
Width 1.32″ (3.35cm)
Depth/Length 7.09″ (18.01cm)
Weight (Item Only without battery) 20oz (566.99g)
Weight (Packaged) 32oz (907.18g)
Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Software
Pixel Zoom (type) 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate (Manual/Automatic) Automatic or Manual Control
Image Flip (Manual/Automatic) Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colours) User Adjustable Colour Style and Intensity
Peaking User Adjustable Intensity
False Colour Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual – User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Colour Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Image Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channels

Professional On-Camera Monitor with ARRI Camera Control Kit
Full HD 7-inch Touchscreen Monitor and
DCI-P3 Colour
1800 nits brightness
HDMI: 1x HDMI In, 1x HDMI Out
SDI: 1x 3G SDI IN, 1x 3G SDI In/Out
Power: 2-Pin Power Input (10 to 34v, 2A DC), Sony Battery Bracket
Mounting: 4x ¼-20 thread points
Camera Control: ARRI
