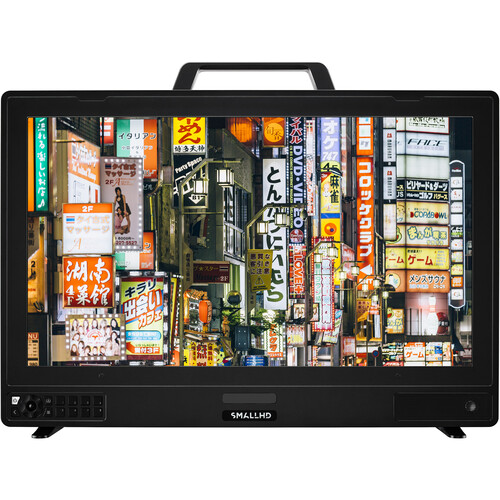

SmallHD Cine 24 Inch High Bright Monitor

OVERVIEW
Cine 24 is the ultimate production workhorse from SmallHD, offering a full suite of exposure tools for precise control of HDR cinematography. With 1350 nit panels, this monitor is daylight viewable and eliminates the need for a sun hood or viewing tent. It also boasts a 100% DCI P3 wide colour gamut, providing accurate and vibrant colours for a true-to-life viewing experience.

Equipped with 4x independent 12G-SDI inputs, Cine 24 offers a total 4K input/output workflow and PageOS 4 Quad-View for multiple 4K-input viewing. Its lightweight design allows for faster setup and tear down, making it the perfect solution for director’s monitors or production and broadcast video villages. With Cine 24, 4K monitoring is now possible anywhere, thanks to its impressive 1350 nit sustained brightness.

SUMMARY
Screen Size: 24 Inch
Video Resolution: 4K
Resolution: 3840 x 2160
Panel Type: LED
Inputs: HDMI 2.0
Outputs: HDMI 2.0
Monitor Location: Studio
NITs: 1350
Power Supply: 3-pin XLR
Recording: No
INCLUDED IN BOX
1 x SmallHD Cine 24 Monitor
1x Basic Acrylic Screen Protector
1x 3ft 4K HDMI Cable
2x 1/4-20 Cheese Stick Mounting Accessory
2x Combo Cheese Stick (1/4-20 + 3/8″)
1x Monitor Feet
1x Monitor Handle
1x 3-pin XLR Power Supply
1x 8GB SD Card
1x Microfibre Cleaning Cloth

About The SmallHD Cine 24 Inch High Bright Monitor
Cine 24 brings 4K monitoring everywhere. 1350nits of sustained brightness enables clear viewing in bright daylight environments, which eliminates the need for a sun hood or viewing tent. Small 4K Video Processing Architecture offers a total 4K Input / Output workflow with 4x 12G-SDI hardware and PageOS 4 Quad-View for multiple 4K-input viewing. Lightweight for faster setup & tear down, this monitor is the all-around solution as a director’s monitor or for production & broadcast video villages. Cine 24 is SmallHD’s ultimate production workhorse.

Screen Size 23.8in / 60cm
Resolution 3840 x 2160
Contrast Ratio 1000:1
Colour Space 100% DCI-P3
Colour Depth 10-bit (8+2)
Brightness 1350nits
Backlight Type Edgelit
Backlight Zones n/a
SDI Video Inputs 4x 12G/6G/3G/HD-SDI
SDI Video Outputs 4x 12G/6G/3G/HD-SDI
HDMI Video Input 1x HDMI 2.0 (4K60)
HDMI Video Output (coming soon) 1x HDMI 2.0 (4K60)
Multiview (coming soon) Dual-View & Quad-View
Power Inputs 1x 3-pin XLR (12-34V/12A), 1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
Power Outputs 2x 2pin (12V / 2A combined), 2x USB (5V / 2.4A) (Front/Rear), 1x USB-C (5V / 1.5A)

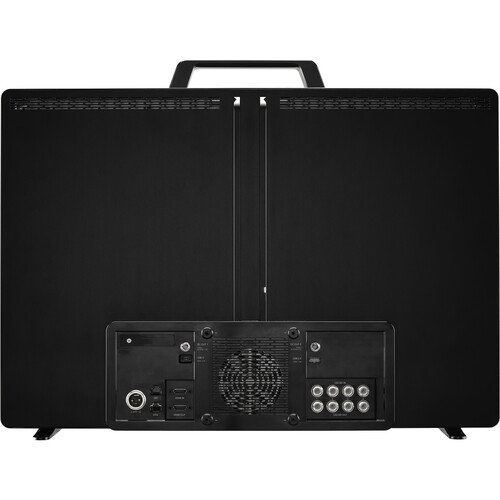

Data I/O 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI
LUTs 17pt 3D-LUT on output/input, 33pt 3D-LUT on output/input (coming soon)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Mounting Points 1x 110mm VESA-compatible rear mount, 36x 1/4-20 mounting points (top/sides)(3/8″ mounting points avail. as accessory)

Daylight viewable with 1350 nit panels
100% DCI P3 wide colour gamut
4x independent 12G-SDI inputs
Full suite of exposure tools for precise control of HDR cinematography
