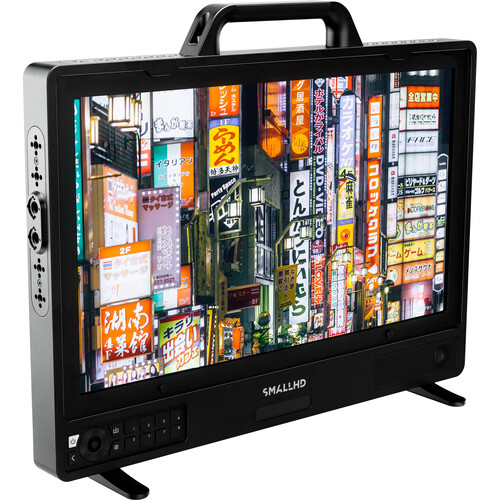

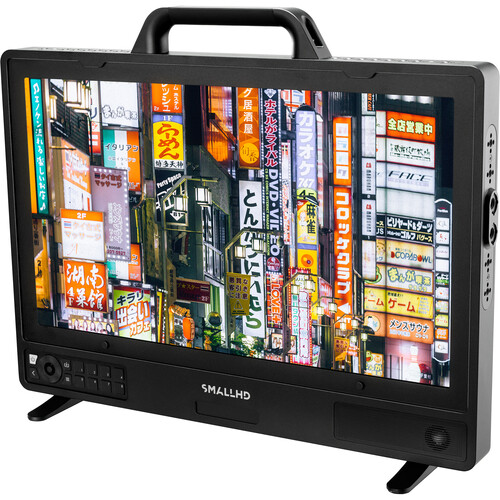

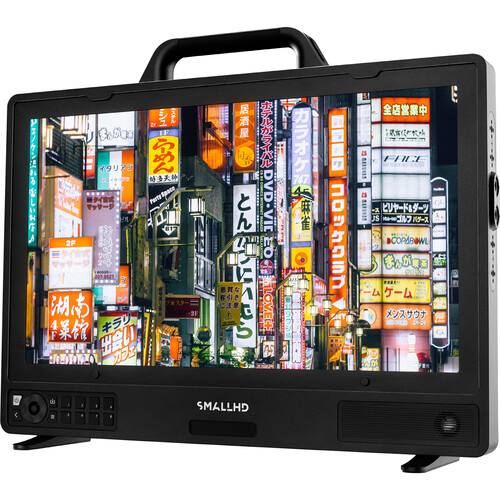

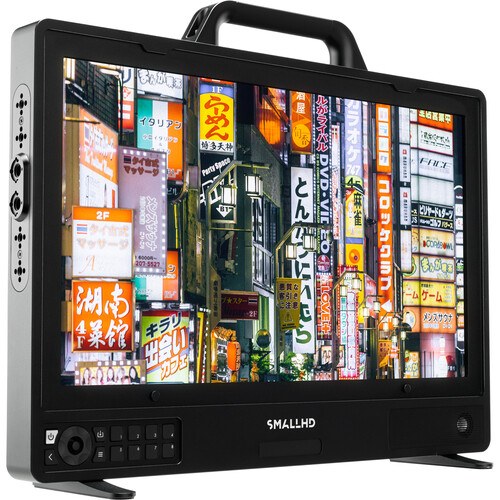

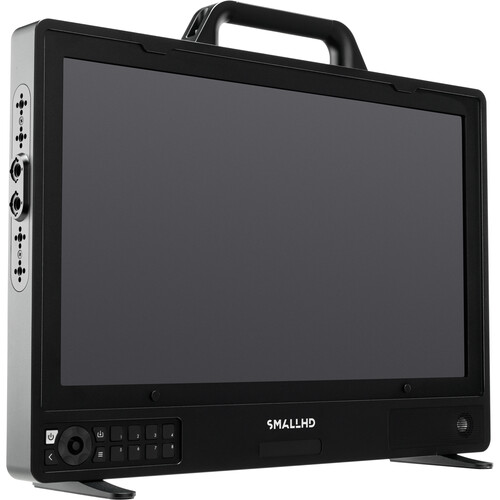

SmallHD Cine 18 Reference Monitor

OVERVIEW
The Cine 18 is a versatile and durable 4K monitor, perfect for any production scenario. It offers features such as 1100nits brightness, exceptional image quality, and 4x 12G-SDI Inputs/Outputs for workflows up to 4K resolution. It is lightweight and ideal for use by various production roles, making it a valuable asset on set.

The monitor runs on the PageOS software platform, which is designed for simplicity and speed. It includes tools like Frame Guides, Focus & Exposure Assist, and 3D LUTs to streamline workflow. With its powerful 4K HDR toolset, easy calibration, and intuitive color pipe, the Cine 18 is a production workhorse that offers a high-quality viewing experience.

SUMMARY
Screen Size: 18 inch
Resolution: 3840 x 2160
Inputs:
HDMI
SDI
Outputs:
HDMI
SDI
NITs: 1000
Power Supply: 4-pin XLR
Recording: No
INCLUDED IN BOX
1x SmallHD Cine 18 (16-1801)
1x SmallHD Cleaning Cloth (ACC-CLOTH-SMALLHD)
1x 4K HDMI to 4K HDMI Cable – 90cm (CBL-SGL-HDMI-4K-36)
1x Cine 18 Basic Acrylic Locking Screen Protector (17-1056)
1x 8GB SD Card (ACC-SD-CARD-8GB-C10)
1x Premium Monitor Handle for 4K Monitors (17-5413)
1x 24V Power Supply (17-3200) – Excludes regional power cable to wall outlet

About The SmallHD Cine 18 Reference Monitor
The Cine 18 offers a perfect blend of screen size, brightness, color-accuracy, and portability, making it the most flexible High-Bright 4K Monitor for any production scenario. It’s big enough for Video Village, bright enough for daylight viewing, and its ultra-lightweight aluminum unibody construction is the result of years of real-world, on-set testing. Features include 1100nits brightness, exceptional image quality, 1000:1 contrast ratio, and 4x 12G-SDI Inputs/Outputs for workflows up to 4K resolution. Ideal for Video Village, ACs, DPs, DITs, or as a director’s monitor.

The New Monitor for Everywhere

The latest 4K high-bright, lightweight, rugged, production monitor featuringeverything you need for the modern 4K workflow.

The Production Workhorse

Big enough for Video Village. Bright enough for daylight viewing.Lightweight and durable enough for challenging locations.

Image Quality Brighter. Sharper.4K Ready.

Brightness: 1100nits

Screen Size: 18.4in / 46.7cm

Bit Depth: 10-bit (8+2)

Colour: 100% REC. 709 / 98% DCI-P3

Resolution: 3840 x 2160

Designed for Production – Lightweight. Versatile. Rugged.

Rugged and flexible enough forchallenging productions, lightweight forquick company moves, and energy-efficient for longer battery life.

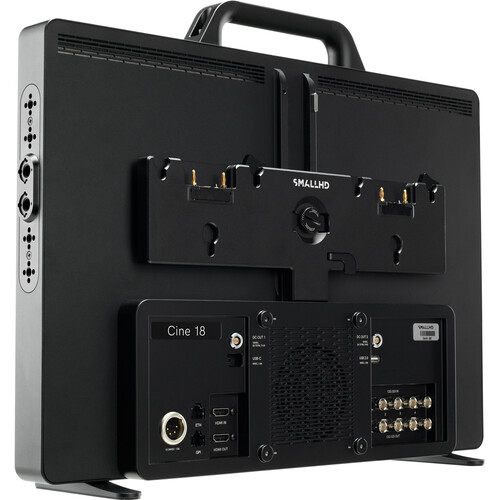

Cine 18 Hardware Overview – Unibody Smart Chassis

Mounting Options: Interchangeable cheese stick mounting points
Accessory Power: 2x 2-pin power outputs
Power Input: 1x 4-pin XLR
Dovetail Mounting Rail: Seamlessly mount batteries and other accessories

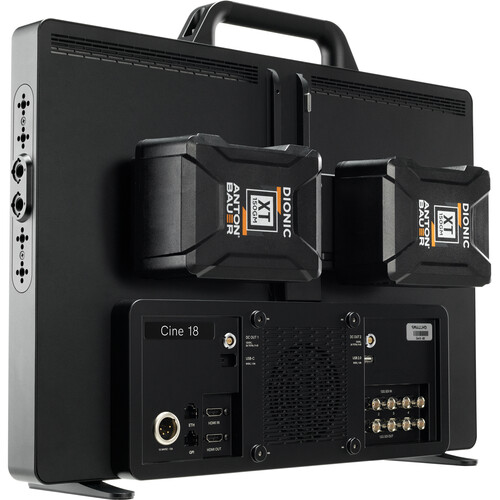

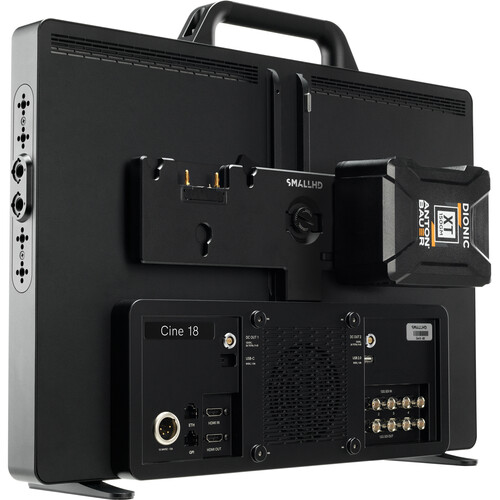

Battery Power: Hot-swappable dual Gold Mount or V-Mount Battery Plate
Small4K Video Processing Architecture
Inputs: 4x 12G-SDI, 1x HDMI 2.0
Outputs: 4x 12G-SDI, 1x HDMI 2.0
PageOS Software Platform

SmallHD 4K Production Monitors are powered by the trusted PageOS software platform. PageOS was designed for simplicity and speed– featuring tools like Frame Guides, Focus & Exposure Assist, and 3D LUTs to help streamline your workflow. PageOS includes our Livegrade integration and improvements on many of the features you know and love.

Powerful 4K HDR Toolset
Easy Calibration
Intuitive Colour Pipe
Preset Custom Page Options

SmallHD 4K Monitor Specifications
SKU MON-CINE18
Description Cine 18″ 4K High-Bright Monitor
Resolution 3840 x 2160
Contrast 1300:1
Colour Space (gamut) 100% Rec.709
Colour Depth 10-bit (8+2)
Brightness 1000nits
Backlight Type Edgelit
Backlight Zones n/a
Viewing Angle TBA
SDI Video Inputs 4x 12G/6G/3G/HD-SDI (multiplex coming soon)
SDI Video Outputs 4x 12G/6G/3G/HD-SDI (multiplex coming soon)
HDMI Video Input 1x HDMI 2.0 (4K60)
HDMI Video Output (coming soon) 1x HDMI 2.0 (4K60)
Multiview (coming soon) Dual-View & Quad-View
Power Inputs 1x 4-pin XLR
1x Dual-GM/VM Batt.Plate (14/26V) (sold as accessory)
Power Outputs 2x 2pin (12V / 2A combined) (Rear)
1x USB (5V / 2.4A) (Front)
1x USB (5V / 1.5A) (Rear)
1x USB-C (5V / 1.5A) (Rear)
Data I/O 1x SD Card Slot
1x RJ45 Ethernet
1x RJ45 GPI
LUTs 17pt 3D-LUT on output/input
33pt 3D-LUT on output/input (coming soon)
Audio 1x 3.5mm Stereo Headphone Jack (coming soon)
1x 1W Speaker (coming soon)
Mounting Points 1x 110mm VESA-compatible rear mount 26x 1/4-20 mounting points
4x 3/8 mounting points
Software Key Features in all-new OS4.6:
Internal Calibration Wizard
Colour Pipe colour-space formatting
Settings Dashboard for easy access to common settings
Preconfigured Pages
Page Tabs
Customizable False Colour Overlays
Customizable 4K Waveform w/Region of Interest Highlighting (coming soon)
Improved Function Buttons
Pixel Zoom, Focus Assist, Peaking
Total UI overhaul
Weight (w/handle+feet) 11.15lbs
UPC 811786033201

Small4K Video Processing Architecture

Inputs: 4x 12G-SDI , 1x HDMI 2.0
Outputs: 4x 12G-SDI, 1x HDMI 2.0

PageOS Software Platform

4K HDR waveform and scopes
Simplified HDR Color Pipe set up
Monitor Calibration Wizard S

Cine 18 is a rugged, portable, daylight-viewable, color-accurate, 4K monitor–with a versatile screen size that can fit any production. It’s big enough for Video Village, bright enough for daylight viewing, and its ultra-lightweight aluminum unibody construction is more than durable enough for challenging shoots.
