SmallHD 702 Touch Monitor

OVERVIEW
The 702 Touch is a top-of-the-line touchscreen monitor that offers a stunning display with its 1500 nits brightness, DCI-P3 colour, and 1920 x 1200 resolution. It is perfect for use in any setting, including studios and outdoor environments. The monitor is also highly versatile, with flexible signal and power options, making it suitable for various workflows. Powered by SmallHD OS3 software, it provides industry-leading imaging tools and a simplified user experience, making it a powerful and data-driven tool for operators, ACs, DITs, and directors.

Constructed with a milled aluminium unibody, the 702 Touch is both durable and portable. It features a 7-inch full HD screen with 10-bit colour processing and 100% DCI-P3, ensuring accurate colour representation. It also has a high brightness level of 1500 nits, making it easy to view even in direct sunlight. The monitor comes with two 3G SDI inputs, HDMI input and output, and a Sony L-Series battery bracket, with the option to add on a Gold Mount or V-Mount battery plate attachment. With SmallHD PageOS software, users can customize their profiles and access features such as frame guides, focus and exposure assist, 3D LUT overlays, and more. The 702 Touch is also compatible with the Bolt RX Monitor Module and can be upgraded to include camera control for RED DSMC2 and KOMODO cameras.

SUMMARY
Screen Size: 7 Inch
Resolution: 1920 x 1200
Inputs:
3G-SDI
HDMI
Outputs:
3G-SDI
HDMI
INCLUDED IN BOX
1x 702 Touch Monitor (MON-702-TOUCH)
1x Sony L Series Battery Bracket for 702 Touch and CINE 7 Series (PWR-ADP-C7T-SONY)
1x 702 Touch/Cine 7 UltraClear Screen Protector (ACC-SP-702TOUCH-ULTRACLEAR)
1x 8GB SD Card (ACC-SD-CARD-8GB-C10)
1x SmallHD Cleaning Cloth (ACC-CLOTH-SMALLHD)

About The SmallHD 702 Touch Monitor
The 702 Touch is the smart, ruggedly built SDI/HDMI touchscreen monitor designed for full-time creative professionals. The 702 Touch is extremely durable without adding bulk and daylight viewable without consuming enormous amounts of power. With flexible signal options, world-class software tools, and intuitive touchscreen controls, the 702 Touch offers ultimate versatility. Built with an aluminum chassis, this monitor is rugged, designed to be packed, transported, and used in the field.

The seven-inch screen is full HD and has a resolution of 1920×1200. And thanks to 10-bit colour processing in 100% DCI-P3, you’ll get a colour accurate look at your production. And for the creative with an ever-changing schedule and location, the 702 Touch’s 1500 nits of brightness ensure that your monitor can be viewed no matter the time of day, offering a glare-free, colour-accurate look even in direct sunlight.

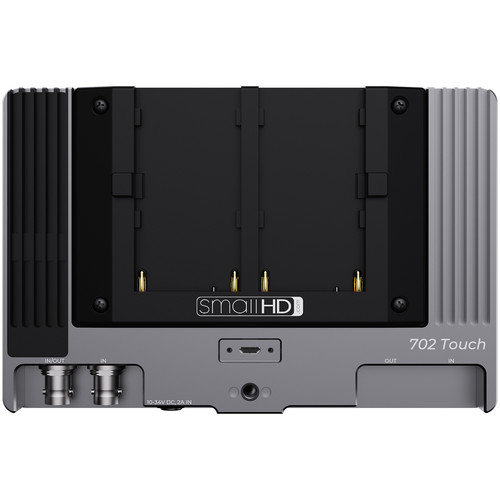

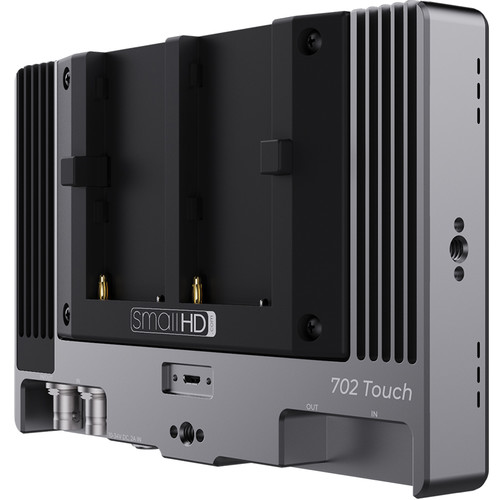

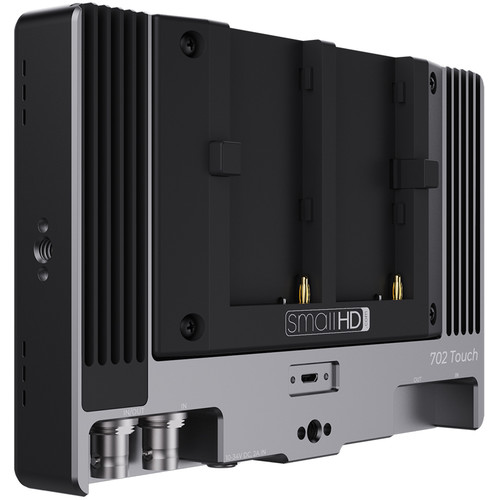

The 702 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.

Smart PageOS Software
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.

702 Touch Compatibility
The 702 Touch is compatible with the Bolt RX Monitor Module. Improve your handheld monitoring workflow with this optional hardware addition to your 702 Touch monitor. Receive cable-free 4K and HDR wireless video from any Bolt 4K series transmitter at a distance of up to 750ft (228m).

Upgrade to Camera Control for RED DSMC2 & KOMODO*
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2 & KOMODO camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Colour Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.

Display
Panel Type IPS LCD
Size Diagonal 7.02
Resolution 1920×1200
Pixel Density (PPI) 322
Aspect Ratio 16:10
Active Area 5.95 x 3.72
Brightness 1500 Nits
Contrast 1000:01:00
Color Gamut 100% DCI-P3 Coverage
Color Depth 10-bit Processing (8-bit panel)
Viewing Angle 160
Backlight Type LED
Adjustable Backlight Yes
Input Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25,
1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97
1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24,
720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120,
480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i50
Audio HDMI & SDI – Monitor through Speakers in Front Bezel or Through Headphone Jack – Metering up to 8 channels
Output Signal Types/Formats
3G-SDI YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100
HD-SDI YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25,
1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98
SD-SDI YCC 4:2:2 @ 10-bits: 480i59.94, 576i50
HDMI YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120,
1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200
Audio HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection
Connector Type

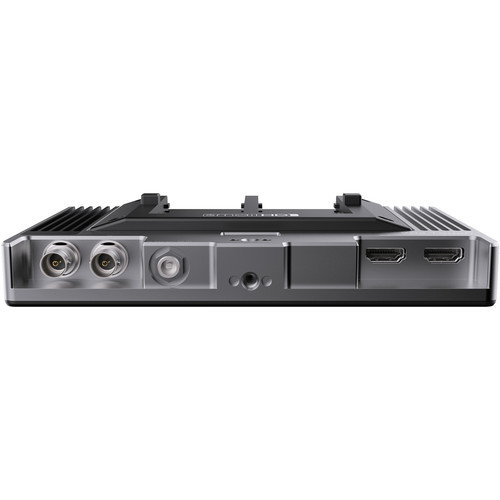

SDI 1x BNC 3G input and 1x BNC 3G selectable input/output
HDMI 1 input and 1 output: HDMI Type-D Receptacles (full size)
Audio 1x 3.5mm 3-pin Stereo Headphone Jack
Power In Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
USB 1x USB 2.0 Micro-B receptacle
Controls

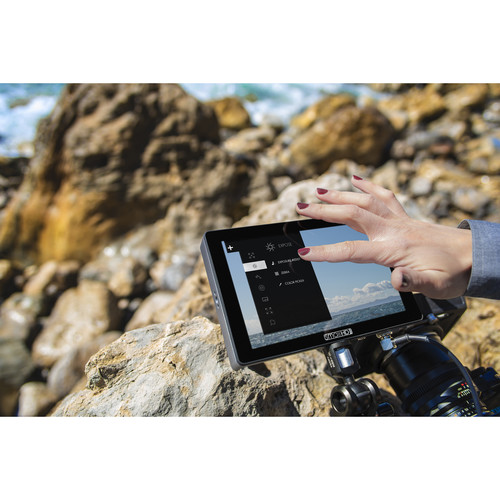

Primary Control Interface Touch Screen
Record/Capture Image Capture Tool
Power
Connector Type Barrel, 2.0mm ID, 5.5mm OD (center pin positive)
Voltage DC in – 10V minimum to 34V maximum, Battery terminals – 6.0V minimum to 16.8V max
Power Consumption 17.3 watts (2160p30, 100% bright, tools enabled), (2.4A @7.2V battery, 1.4A @12V barrel, 0.7A at 24V barrel)

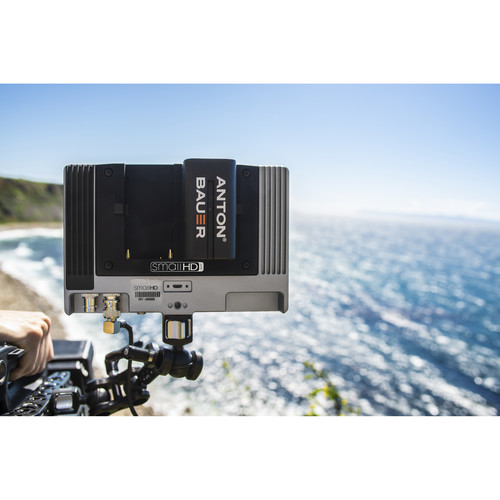

Battery Plate Included L-Series standard (V Mount or Gold Mount optional accessories)
Recommended Power Supply Recommend DC 12~15V at ~2.5 amp or greater
Overload Protection DC input: Reverse polarity
Battery Types L-Series, V Mount, Gold Mount
Battery Chemistry Li-ion
Battery Charging Time (hours) Monitor does not support the charging of batteries
Environmental
Compliance FCC, IC, CE, RoHS
Operating Temperature 30F to 100F
Storage Temperature 0F to 120F
Height 4.67″ (11.86cm)
Width 1.32″ (3.35cm)
Depth/Length 7.09″ (18.01cm)
Weight (Item Only without battery) 18.9oz (535.81g)
Weight (Packaged) 26oz (737.09g)

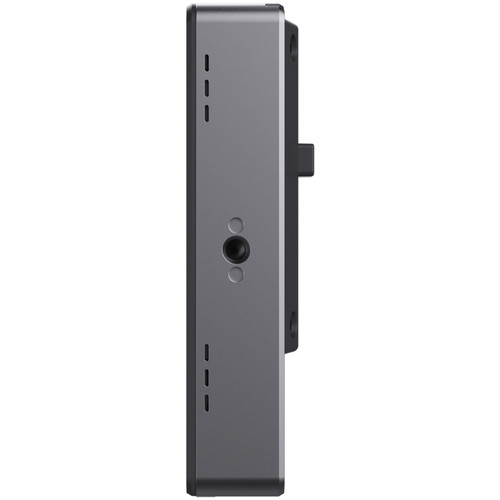

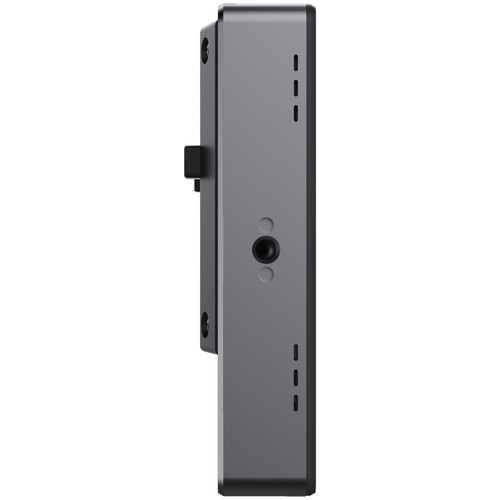

Mount Points Four ¼-20 Mount Points (Left, Right, Bottom, and Back)
Software
Pixel Zoom (type) 1.1-2.0x & 2.0-8.0x via swipe up/down. Infinitely adjustable via pinch & zoom
Frame Guides Preset Aspect Ratios & Customizable
DSLR Scale Canon 5DMkii & Canon 7D
Custom Scale Yes (Underscan Only)
Anamorphic De-Squeeze 0.75x, 1.33x, 1.5x, 1.66x, 2.0x, 2.5x
Image Rotate(Manual/Automatic) Automatic or Manual Control
Image Flip (Manual/Automatic) Automatic or Manual Control
Cross Conversion Yes: HDMI → SDI & SDI → HDMI
Focus Assist (Colors) User Adjustable Color Style and Intensity
Peaking User Adjustable Intensity
False Color Rainbow, Arri Style, Custom with up to 10 nodes
Zebra Dual – User Configurable
Waveform Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope Yes
RGB Parade Fully User Customizable
Histogram Luma & RGB Style
Image Capture Yes
Custom LUTS Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Downstream Available on SDI or HDMI Out. Applied on Output Preview Page.
LUT Import via SD Card or USB Storage Device
Image Overlay With Opacity Slider and Blink Setting
Audio Meters HDMI & SDI up to 8 channel

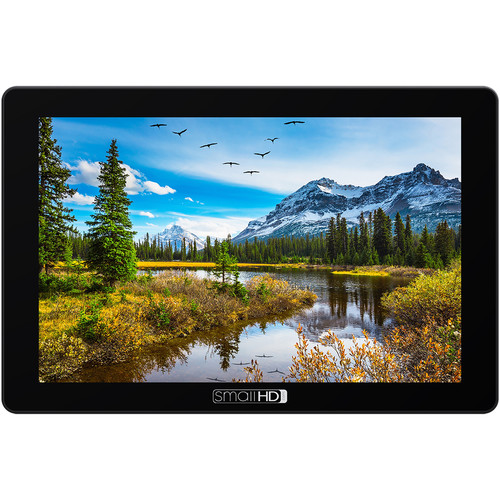

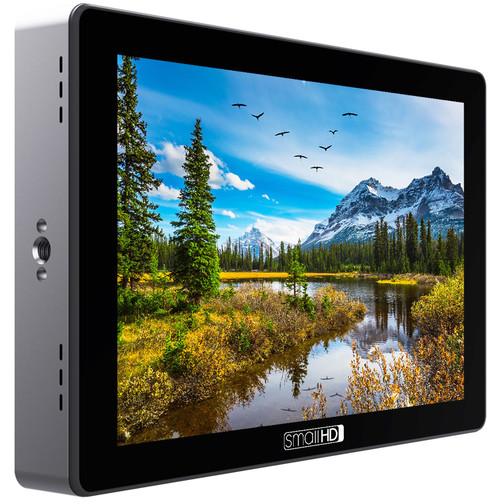

Simply Stunning Display

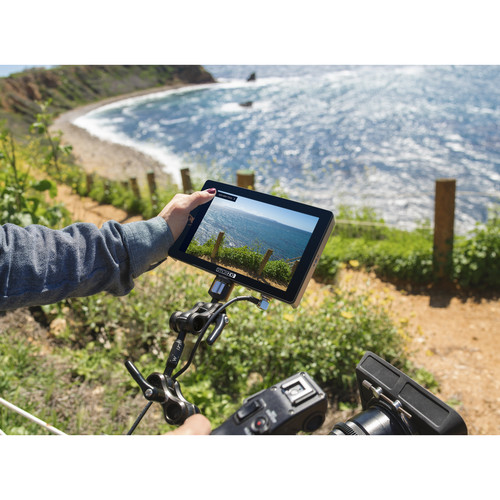

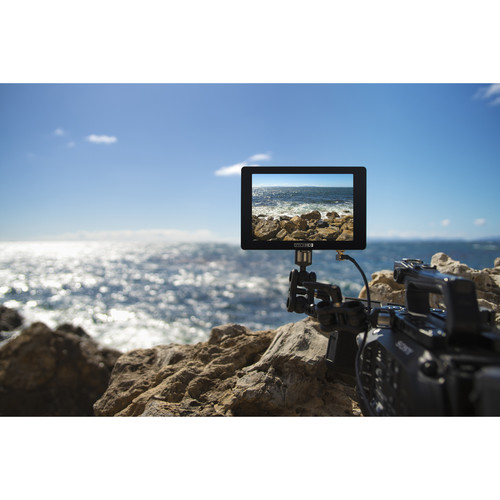

The 702 Touch is the perfect blend of brightness, resolution, colour reproduction, and power efficiency. Whether in studio or in full sun, the image on this 7-inch touchscreen monitor is simply beautiful.

1500 nis (bright) DCI-P3 Colour, 1920 x 1200 resolution 7-inch Touchscreen.

Flexible Signal and Power Options

With two 3G SDI inputs, HDMI/SDI cross-conversion, DC power input, and Sony L Series battery bracket (Gold and V-Mount available), the 702 Touch is adaptable to any workflow, large and small.

Powered by SmallHD OS3 Data-Driven Confidence

SmallHD OS3 software gives Operators, AC’s, DIT’s and Directors industry leading imaging tools and a simplified user experience. Customize Scopes, Waveforms, and False Colour how you desire. Apply real-time 3D LUTs quickly and easily. Save time and be more confident creating with this powerful, data-driven tool set.

Milled aluminium unibody (space gray)
Interchangeable battery plates (Sony L-Series Included)
7-inch 1920 x 1200p JPS LCD
1500 nits bright
HDMI: 1x HDMI In, 1x HDMI Out
SDI: 1x 3G SDI IN, 3G SDI In/Out
Power: 10v to 34V, 2A DC barrel power input
Mounting: 4x ¼-20 thread points
