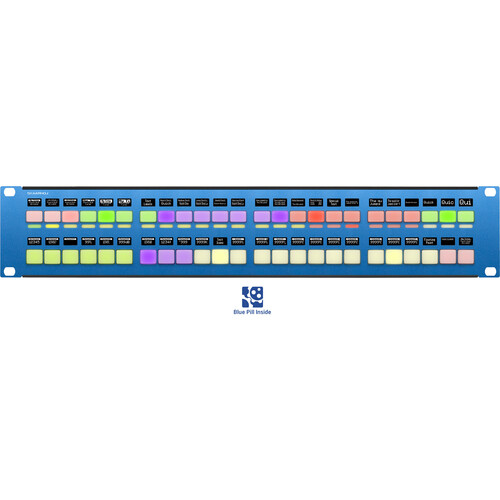

SKAARHOJ Rack Fly Duo w/Blue Pill Inside

Overview
The Rack Fly Uno and Duo are compact control units with programmable four-way buttons and RGB multilevel metering LEDs. The Duo has 48 buttons, all with customizable OLED displays, making it a versatile choice for universal control needs. Both units are made in Denmark and have Ethernet with PoE capabilities.

One unique feature of these units is the Blue Pill Inside, which combines the hardware of a Blue Pill into the controller itself. This allows for a more streamlined and cost-effective solution, but means that the features of UniSketch are no longer available. These units are compatible with various devices, including BlackMagic Design VideoHub, AJA KUMO, and Unity Intercom.

Included in box
Rack Fly Duo With Blue Pill Inside
12V Power Supply

About the SKAARHOJ Rack Fly Duo w/Blue Pill Inside
Rack Fly Duo has 48 programmable four-way buttons all with RGB color and customizable OLED displays.

Rack Fly Uno, Duo, and Trio are raw muscle. All programmable four-way buttons. All RGB color coRack Fly Uno, Duo, and Trio are raw muscle. All programmable four-way buttons. All RGB color coded. Far from all too much though – you deserve this for your universal control needs whether it’s a video router, your VSM system or an AUX bus.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit – but you can’t enjoy the features from UniSketch anymore.

Outstanding differences from previous or similar versions

Blue Pill Inside added

Devices the product connects with Notably, but not limited to:

BlackMagic Design VideoHub
AJA KUMO
Unity Intercom

Hardware specs
4-way Buttons 48
Customizable OLED screen 48
Product W x D x H (mm) 483 x 88 x 46
Weight (g) 880
Shipping box W x D x H (mm) 500 x 110 x 150
Shipping box Weight (g) 1504
Country of Origin Denmark
In the box 12V power supply
Connectivity
Programming Port Ethernet (or Micro USB for setting manual IP)
Networking Port RJ45 Ethernet
Power Supply 12V
Recommended cables (not in the box) LAN Cat 6 S/FTP or better
Operation
Power Consumption 7.68 Watt
Operating System skaarOS (Blue Pill)
Universal Control Check our website for Device Core to what can be controlled

Blue Pill Inside
Four-way buttons
Programmable four-way buttons with OLED legends (Rack Fly Uno has 24, Rack Fly Duo has 48)
RGB multilevel metering LEDs
Compact form factor
Rack unit or desktop console in one
Ethernet with PoE (IEEE802.3at)
Made in Denmark
