SHAPE V2PWC V-Mount Battery Charger

Overview
The SHAPE FULL PLAY Intelligent 2-Bay Vertical V-Mount Battery Charger is a compact and efficient way to charge two V-Mount batteries at the same time. With a 2.5A charging current and a 4-pin XLR output, this charger is compatible with SHAPE FULL PLAY batteries and can also be used as a DC power supply for cameras or lights. It comes with a 2-year limited manufacturers warranty for any defects.

The chargers vertical design makes it easy to transport and takes up minimal space when not in use. It has LED charging indicators and a 4-pin XLR male-female cable for powering accessories. The charging process is simple and can be done by plugging in the power cable, sliding the battery onto the charger, and turning on the charging switch. The charger also has an adapter function for powering devices with the 4-pin XLR cable.

Summary
Battery / Mount Compatibility: V-Mount
Charging Ports: 2
Included in box
1x V2PWC V-Mount Battery Charger

About the SHAPE V2PWC V-Mount Battery Charger

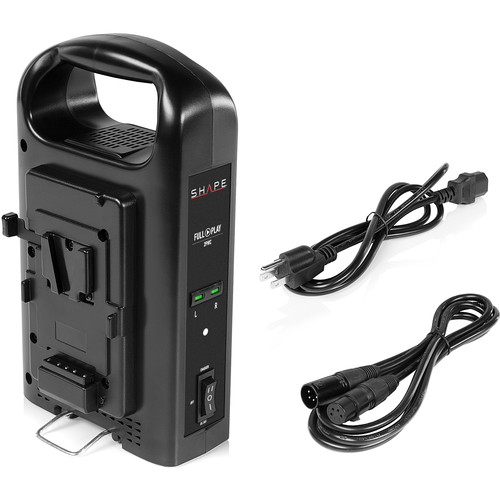

The SHAPE FULL PLAY Intelligent 2-Bay Vertical V-Mount Battery Charger can charge two V-Mount batteries simultaneously. Having a vertical profile means this charger takes up a minimum of space when not in use. Connect the 4-pin XLR to your camera or light with the included 4-pin XLR cable and use the charger as a DC power supply, up to 60 watts. The compact vertical design is easy to transport using the top handle and the internal power supply can handle worldwide AC voltages.

Simultaneous Dual V-Mount Lithium-Ion Battery Charger
16.8V 2.5A Charger Output
60W, 15V, 4.0A

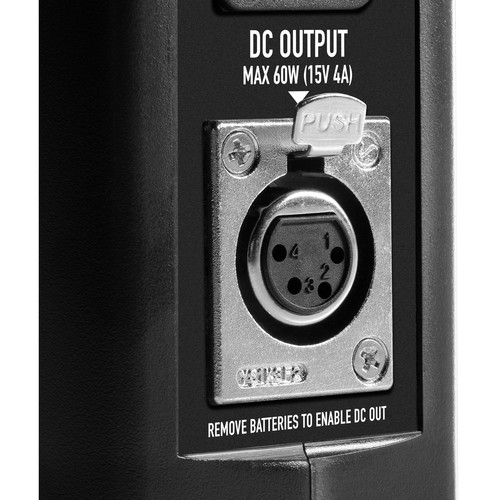

4-Pin XLR DC Power Output
Battery Release Lever
Lightweight Portable Design with Carry Handle
Light Indicators for Battery Charge Status
Charge/DC Out/Off Mode Switch
90-242 V, 47-63 Hz, 3.8A AC Power Input

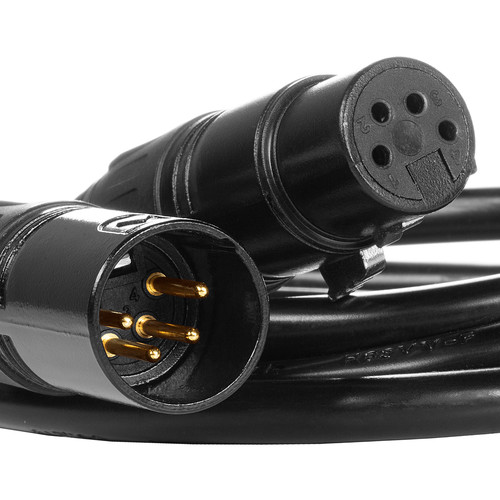

4-Pin XLR Male-Female Cable Included for Powering Accessories

CHARGING INSTRUCTIONS

Plug the power cable into the charger.
Slide the battery that requires charging onto the charger, ensuring the V-Mount studs are aligned in the corresponding slots. The battery is fully engaged when the latch makes an audible “click” sound.
Turn on the charging switch on the charger and the indicator light will turn red. The charger will begin charging the battery automatically.
When the indicator light turns orange, the charging is almost finished.
When the indicator light turns green, the charging is completely finished.
Remove the battery by depressing the latch and sliding the battery off the charger. Turn off the charger.

ADAPTER INSTRUCTIONS

Plug the 4-pin XLR cable into the charger.
Turn on the adapter switch. When the indicator light turns red, the charger will begin charging the device automatically.

Product Dimensions 24.5 x 15 x 10 cm ( 9.65 x 5.91 x 3.94 in)
Product Weight 1.06 kg ( 2.34 lbs)
Output 16.8V 2.5A
AC Power Input 90-242V, 47-63Hz, 3.8A

V-Mount Lithium-Ion Battery Charger.
Charges 2 Batteries simultaneously.
2.5A Charging Current.
4-Pin XLR Output.
LED Charging Indicators.
Compact Vertical Design.
Compatible with SHAPE FULL PLAY batteries (May not be compatible with other brands).
2-year limited manufacturer’s warranty on all manufacturer defects.
