SHAPE Canon C500 Mark II cage w/ EVF Mount

Overview

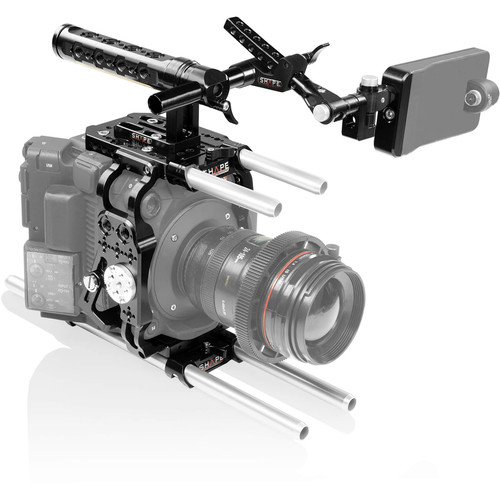

The SHAPE rig kit is the perfect accessory for your Canon EOS C500 Mark II camera. Made of CNC aluminium, it includes a formfitting cage with Arri rosette, a baseplate with 15mm rods, a top plate with 15mm rods, and a top handle with viewfinder rod clamp. This kit also comes with a lifetime warranty, giving you peace of mind while using it.

Specifically designed for the Canon EOS C500 Mark II, the baseplate features two attachment points for securely mounting the camera body. The top plate is also compatible with the cameras native handle, making it easy to add accessories and create a handheld rig. With the included push-button viewfinder mount and 15mm rods, you can adjust and customize your rig to fit your needs.

Included in box
1x Cage
1x Handle with Viewfinder Mount
Baseplate with 15 mm 12” rods
Top plate with 15 mm 4” rods

About the SHAPE Canon C500 Mark II cage w/ EVF Mount
Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this rig kit from SHAPE. It includes a baseplate and top plate with 15mm rod system, a form fitting cage with Arri rosette, a top handle with several threaded holes, and a viewfinder rod clamp with 19mm push-button. The baseplate match the Canon EOS C500 Mark II optical centre and can also be tripod-mounted. The 15mm 12” and 4” rods allow you to mount additional accessories.

Canon C500 Mark II camera cage (C52CAGE)

Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this kit made of CNC aluminium. It includes a form fitting side plate with Arri rosette, a top plate and a rear insert plate connecting together to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with anti rotating holes. The top plate is also designed to fit the native Canon EOS C500 Mark II handle.

Canon C500 Mark II 15mm lightweight baseplate (B15C52)

The lightweight baseplate with 15 mm rod system is designed to match the Canon EOS C500 Mark II optical centre. It features two attachment points (1/4-20 and 3/8-16) for securely mounting the Canon EOS C500 Mark II body. The baseplate also comes with a pair of 15 mm rods that are 12” long through the length of the baseplate. The bottom of the plate feature several 1/4″-20 and 3/8″-16 mounting holes for mounting and balancing your camera on equipment like a tripod.

Canon C500 Mark II Push-button viewfinder mount (C52VF)

The Push-Button Viewfinder Mount is designed with a 15mm rod with push-button and a L-bracket viewfinder clamp with ratchet knob. The 15mm rod is compatible with the Canon EOS C500 Mark II camera handle or any 15mm mounting hole. It features two points of articulation for horizontal, vertical, and transversal adjustment of your viewfinder. By simply pressing the SHAPE patented push-button, you are allowed a 360-degree rotation to place your view finder in the best position for your use. Push, adjust, release, and then its lock.

15 mm 12″ rods (15TUBE12)

This pair of SHAPE 15 mm aluminium rods (12″) connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 15 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch. The rods are each 15 mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

15 mm 4″ rods (15TUBE4)

This pair of SHAPE rods are each 15 mm in diameter, 4 inches long, and are also hollow, non-threaded, and made of reliable aluminium coated with a clear finish.

Weight 3.59 lbs / 1.63 kg
Dimensions 9.49 x 5.83 x 6.40 in
Compatibility Canon C500 Mark II

Compatible with the Canon EOS C500 Mark II
Formfitting cage with Arri rosette and mounting options
Baseplate with 15 mm 12” rods
Top plate with 15 mm 4” rods
Top handle with viewfinder rod clamp with 19mm push-button
Made of CNC aluminium
Lifetime Warranty
