Shape B-Mount Li-ion Battery for ARRI Alexa 35

Overview

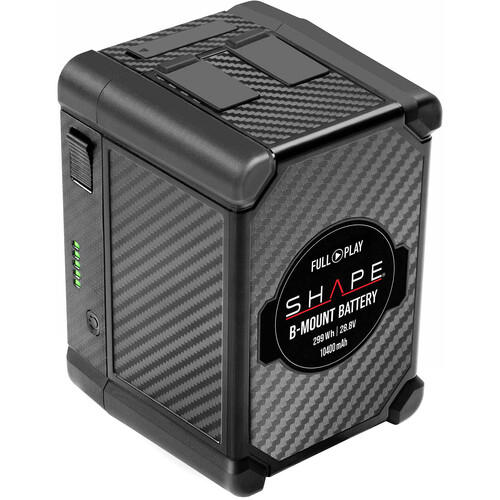

The SHAPE Full Play B-Mount Battery has a capacity of 10400 mAh / 299 Wh and a rated dual voltage of 14.4/28.8V. It is designed with impact proof rubber padded corners and supports the PD fast charging protocol. The battery also features 4 D-tap ports, 1 USB-C input/output, and 1 USB-A 5V port. It is recommended to use only SHAPE batteries on a B-mount charger and to not mix different brands at the same time. The battery has a 5-step LED fuel gauge and a battery release lever.

The SHAPE Full Play B-Mount Battery is designed to power B-mount devices such as the ARRI Alexa 35 and other 24 or 12V cameras or lights. Its dual-voltage output is safe to use with devices as the B-mount will not allow higher voltage to flow to a device designed for 12/14.4 volts. The battery also has an intelligent control and protection circuit to prevent overheating, over-charging, over-discharging, and over-current. It can be charged with a B-mount charger or via the USB-C port with a USB-C charger. Its four corners are rubber padded for impact protection and it comes with a 2-year limited warranty against manufacturer defects.

Summary
Battery Capacity: 299Wh
Battery Capacity: 150-300Wh
Battery Indicator: Yes
Battery Mount / Type: B-Mount
Battery Technology: Li-ion
Voltage: 28.8v

About the Shape B-Mount Li-ion Battery for ARRI Alexa 35

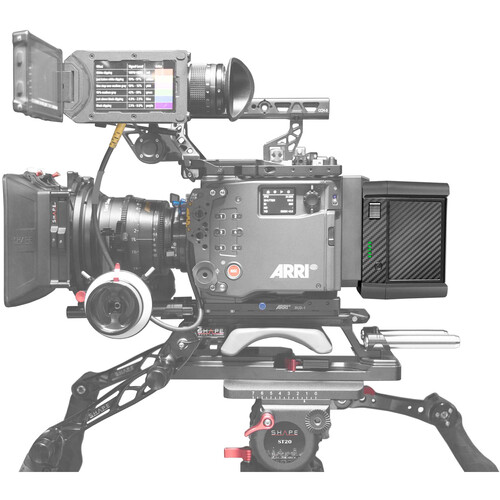

The SHAPE Full Play B-Mount Battery features a sturdy design and is meant to power B-mount devices such as the ARRI Alexa 35, and other 24 or 12V cameras or lights, with the correct voltage, which is determined by the device’s B-mount plate. The dual-voltage output is safe to use with your device, as the B-mount will not allow the higher voltage to flow to a device designed to handle 12/14.4 volts, and it will not allow you to underpower your 24V device. Its internal system will automatically detect the load, if there is no load, the battery will switch to any power mode. If there is a load, the battery starts to work. The internal modular design is simple, stable and reliable. It effectively reduces the static power consumption of the battery and prolongs its life cycle. It is recommended to use only SHAPE batteries on B-mount charger, as a full set. Do not mix different brands at the same time

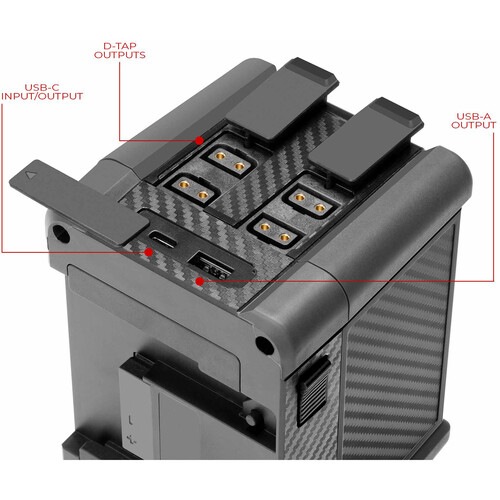

Equipped with 4 D-tap ports, one USB-C (input/output), and one 5V USB-A output, this battery is a powerful tool on set. The battery’s capacity can quickly be checked via the 5-segment LED meter. The battery can be charged with a B-mount charger or via the USB-C port with a USB-C charger. Its four corners are rubber padded to protect the unit from impacts.

299Wh/28.8V B-Mount Lithium-Ion Rechargeable Battery.
Built-in USB Interface (5V, 2.1A )for charging electronic and mobile devices
High-capacity, reliable quality, long operating time.
2-year limited warranty against all manufacturer defects.
Intelligent Control and Protection Circuit:
Over-heating, over-charge, over-discharge, over-current.
No Memory Effect, Environmental Protection.
D-Tap and USB Ports made of PPS Aircraft-Grade Materials.
Standard working time on full charge is approximate.

Capacity: 10400 mAh / 299 Wh
Rated Dual Voltage: 28.8V
Output power: B-mount 28.8V, 10A (max), D-tap: 16V, 3A (max), USB-A: 5V, 2.1A (max), USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.5A
Input power: B-mount: 33.6V, 3A (max), USB-C: 65W (max)
Weight: 3.65 lbs
1.66 kg
Dimensions: 5.25 x 3.75 x 4.00 in
13.34 x 9.53 x 10.16 cm

Capacity: 10400 mAh / 299 Wh.
Rated Dual Voltage: 14.4/28.8V
Impact proof rubber padded corners.
Supports PD fast charging protocol.
4 D-tap ports.
The battery requires to be turned on for D-tap ports to work without the camera.
1 USB-C input/output.
1 USB-A 5V Port.
Battery release lever on battery.
It is recommended to use only SHAPE batteries on B-mount charger, as a full set. Do not mix different brands at the same time.
5-Step Led Fuel Gauge.
