Sennheiser XSW-D Instrument Set

Overview
XS Wireless Digital is a wireless audio solution that offers one touch ease-of-use, a 2.4 GHz digital transmission for worldwide operation, and a 75 m range (250 ft) in optimal conditions. It also has a battery life of up to 5 hours on a single charge and allows for switching between multiple transmitters linked to one receiver. Additionally, it offers the ability to mix and match different connector types and mute from either the transmitter or receiver.

XS Wireless Digital is essentially a cable replacement that uses a 2.4GHz transmission to create a wireless peer-to-peer connection. This allows for freedom of movement on stage or in the rehearsal room, empowering creativity and interaction with the audience. With only one button for easy use, this digital solution eliminates the hassle of setting frequencies and offers a reliable connection wherever and whenever needed.

Summary
Battery Mount / Type: Li-ion Battery Pack
Connector type: XLR

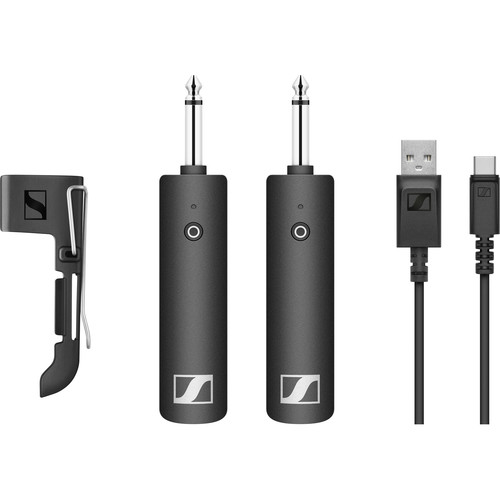

Included in box
1 XSW-D 6.3mm (1/4″) transmitter
1x XSW-D 6.3mm (1/4″) receiver

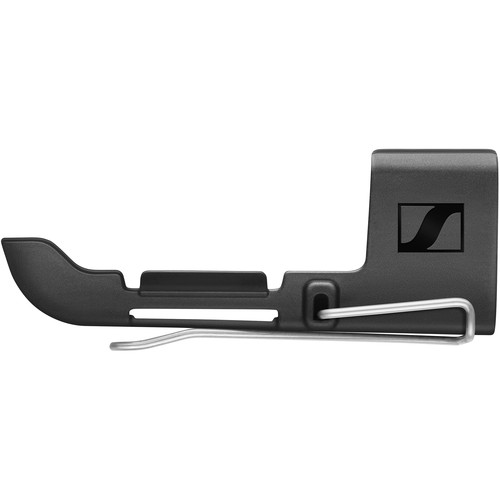

1x Belt clip

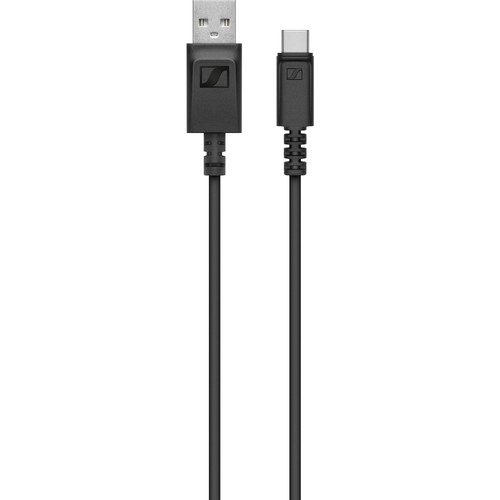

1x USB-A to USB-C charging cable
1x Coloured stickers for labelling
1x Quick guide
1x Safety guide

About the Sennheiser XSW-D Instrument Set
XS Wireless Digital. Like any classic romance, it’s elegant to see, complex in theory, but intuitive in action. These might sound like strong words for a wireless solution to your audio needs, but like any love story, you know it when you experience it. It’s an instant connection.

XS Wireless Digital is essentially a cable replacement. It works digitally, using a 2.4GHz transmission to create a wireless peer-to-peer connection.

Freedom. With a simple touch of a button, step away from the cables and maintain a faithful connection. As a liberating solution for the musician moving about on stage, or a convenient approach to practicing in the rehearsal room, XS Wireless Digital empowers your inner creativity by allowing you to roam free. It means interacting with the crowd like you never have before and enables you to take your performance to the next level. It’s the power to turn audio limitations into audio opportunities. Frankly, it’s a simple but versatile tool that means more than Sennheiser had the time to discover. It works, and if you’re looking to change your relationship with cables and frequencies, then you need to try it out.

A good connection doesn’t require being tied down. Wireless means no obstacles, no distractions, just effortless audio, every time. As a liberating solution for the musician moving about on stage, or a convenient approach to practicing in the rehearsal room, XS Wireless Digital empowers your inner creativity by allowing you to roam free. Lose the cables but keep the connection.

One touch ease-of-use
It’s simple, each XS Wireless Digital has only one button. Press to power up and link simultaneously, click once to mute, and hold to power down. It’s as easy as plugging in a cable, minus the cable part.

Digital for worldwide operation
Your sound should be as boundless as your ideas. Forget about having to set frequencies and step into the world of digital. Using a 2.4 GHz transmission, sync and go anywhere, anytime – effortlessly.

One-touch ease-of-use wireless audio set that utilises a digital transmission to seamlessly link audio sources. This elegant solution makes going wireless with instruments easier than ever before while maintaining a reliable connection.

USB C interface for charging
Input voltage typ. 5.0 V
Charging temperature 0 °C – 60 °C (32 °F – 140 °F)
Charging time typ. 3 h
Battery pack
Cell type Li-Ion
Nominal voltage 3.7 V
Cell capacity 850 mAh
Operating time up to 5 h
AF characteristics
Codec aptX® Live
Audio frequency response 3.5 mm Jack/XLR:
80 – 18,000 Hz
6.3 mm Jack:
10 – 18,000 Hz
Audio output max. 12 dBu
Signal-to-noise ratio ≥ 106 dB
THD < 0.1 % Audio latency < 4 ms Frequency range 2,400 - 2,483.5MHz Transmission power (EIRP) max. 10 mW Modulation GFSK with TDMA Environmental conditions Operating temperature -10 °C to +55 °C (14 °F to 131 °F) Relative humidity 95 % (non-condensing) One touch ease-of-use 2.4 GHz digital transmission for worldwide operation 75 m range (250 ft) in optimal conditions Up to 5 hours battery life on a single charge Switch between multiple transmitters linked to one receiver Mix and match different connector types Mute from either transmitter or receiver
