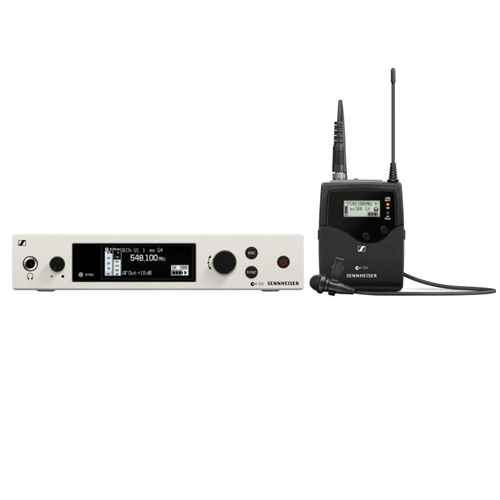

Sennheiser Wireless G4 Lavalier Set – EW 300 G4-ME2

Overview
The G4 300 Series offers an easy to use and fast setup time, making it a convenient choice for users. It also comes with an integrated network port that allows for control, monitoring, and setup through Sennheiser Control Cockpit and WSM Software. With a broad range of products and accessories, including microphones, it can be used in any type of environment. It has a bandwidth of up to 88 MHz and can support up to 32 channels. Additionally, it has an increased RF output power of 10/30/50 mW and a transmission range of up to 100 meters/330 feet. It is also compatible with the wireless speaker system LSP 500 PRO and has an RC (remote control) switch available for the bodypack transmitter.

It is important to note that this product supports the UK Frequency Range, so it is essential to check the frequency range before purchasing. The G4 300 Series is designed to operate reliably, even in multi-channel setups with dozens of channels, thanks to its increased switching bandwidth of up to 88 MHz. It also comes with a powerful clip-on mic package that is easy to operate and ensures hands-free operation during long events like congresses or lectures. A remote mute switch is also available for the bodypack transmitter, adding to its convenience and functionality.

Summary
Battery Mount / Type: AA
Connector type: 3.5mm jack
Number of Channels: 32
Included in box
1x EM 300-500 G4 true diversity receiver
1x SK 300 G4 bodypack transmitter
1x ME 2 clip-on microphone
1x GA 3 rackmount set
1x power supply
2x AA batteries
2x rod antennas
1x quick guide
1x safety guide
1x manufacturer declaration sheet

About the Sennheiser Wireless G4 Lavalier Set – EW 300 G4-ME2
Please Note: This product supports UK Frequency Range. Please check your frequency range before purchasing.

The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation – despite digital dividend.
The powerful clip-on mic package. Easy to operate, reliable while transmitting – G4 does the job. The 300 series lavalier mic set ensures hands-free operation even during the longest congress or lecture. Remote mute switch available for the bodypack transmitter.

The G4 300 Series has an integrated newtwork port allowing control, monitoring and setup via Sennheiser Control Cockpit and WSM Software. It also comes equip with 88 MHz bandwidth, up to 32 channels, an increased RF output power, and a transmission range of up to 100 metres, making it completely compatible with a broad range of products and existing accessories including the LSP 500 PRO.

EM 300 G4
Frequency Range 606-678MHz
Dimensions Approx. 202 x 212 x 43 mm
Compander Sennheiser HDX
THD (Total Harmonic Distortion) ≤ 0.9 %
Weight Approx. 980 g
Audio Output 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Signal-to-noise Ratio ≥ 115 dBA
Switching Bandwidth up to 88 MHz
Peak Deviation ±48 kHz
Nominal Deviation ±24 kHz
Modulation Wideband FM
Power Supply 12 V DC
Antenna Connector 2 BNC sockets
Current Consumption 350 mA
Adjacent Channel Rejection Typically ≥ 75 dB
Intermodulation Attenuation Typically ≥ 70 dB
Receiving Frequency Max. 3520 receiving frequencies, adjustable in 25 kHz
steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up
to 32 programmable channels
RF Sensitivity < 2.5 μV for 52 dBA eff S/N Squelch 5 to 25 dBμV in steps of 2 dB Equaliser Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) Temperature Range -10 °C to +55 °C Receiver Principle True diversity Blocking ≥ 75 dB SK 300 G4 Dimensions Approx. 82 x 64 x 24 mm Compander Sennheiser HDX THD (Total Harmonic Distortion) ≤ 0.9 % Weight (incl. batteries) approx. 160 g Signal-to-noise Ratio ≥ 115 dBA RF Output Power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW Switching Bandwidth up to 88 MHz Peak Deviation ±48 kHz Nominal Deviation ±24 kHz Operating Time Typically 8 h Modulation Wideband FM Power Supply 2 AA batteries, 1.5 V or BA 2015 accupack Current Consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA Input Impedance 40 kΩ, unbalanced / 1 MΩ Max. Input Voltage 3 Veff Powering 3 V battery / 2.4 V rechargeable battery Transmission Frequency Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels AF Frequency Response Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz Temperature Range -10 °C to +55 °C Frequency Stability ≤ ±15 ppm ME 2 Connector 3.5 mm jack Frequency Response 50 to 18,000 Hz (ME 2-II) Max. Sound Pressure Level 130 dB Cable Length approx. 1.60 m Transducer Principle pre-polarized condensor microphone Pick-up Pattern omni-directional Sensitivity in free field, no load (1kHz) 20 mV/Pa Equivalent Noise Level 36 dB Easy to use, fast setup time Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment Up to 88 MHz bandwidth, up to 32 channels Increased RF output power (10/30/50 mW) Transmission Range: up to 100 meters / 330 feet Compatible with wireless speaker system LSP 500 PRO RC (remote control) switch available for the bodypack transmitter
