Sennheiser Wireless G4 Combo Base Set

Overview
The G4 300 Series from Sennheiser offers an easy to use and fast setup time, making it a convenient choice for users. With an integrated network port, it allows for control, monitoring and setup via Sennheiser Control Cockpit and WSM Software. The series also boasts a broad range of products and accessories, such as microphones, making it suitable for any kind of environment. It has a bandwidth of up to 88 MHz and can support up to 32 channels, with increased RF output power and a transmission range of up to 100 meters. Additionally, it is compatible with the wireless speaker system LSP 500 PRO and has a remote control switch available for the bodypack transmitter.

The G4 300 Series is the perfect choice for those in need of bodypack and handheld transmitters with maximum flexibility. The base set includes a stationary receiver, a bodypack, and a handheld transmitter, allowing users to simply add their preferred capsule and clip-on or headset microphone. It also has an integrated network port for easy control and setup, an increased bandwidth for multi-channel setups, and complete compatibility with the LSP 500 PRO wireless speaker system. Please note that the microphone head is not included and is for display purposes only.

Summary
Battery Mount / Type: AA
Connectivity: Radio Frequency (RF)
Connector type: XLR

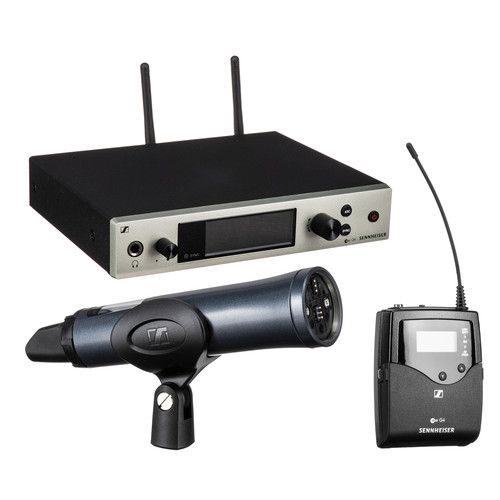

Included in box
1x EM 300-500 G4 true diversity receiver
1x SKM 300 G4-S handheld transmitter
1x SK 300 G4-RC bodypack transmitter
1x MZQ 1 microphone clamp
4x AA batteries
1x power supply
2x rod antennas
1x GA 3 rackmount set
1x quick guide
1x safety guide
1x manufacturer declaration sheet

About the Sennheiser Wireless G4 Combo Base Set

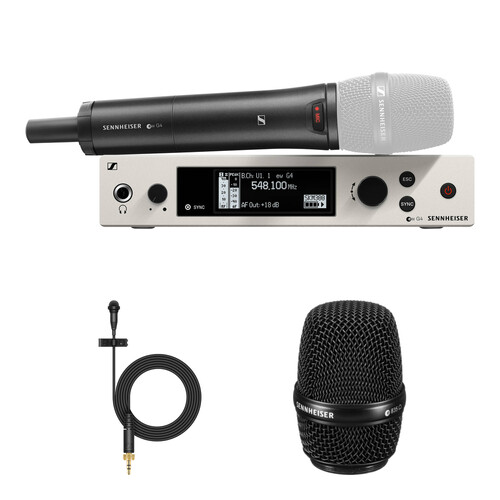

PLEASE NOTE: Microphone head not included. For display purposes only.

The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation – despite digital dividend.
The best choice if you need bodypack, handheld transmitters and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack and a handheld transmitter. Just add your favorite capsule and clip-on or headset microphone.

The G4 300 series has an integrated network port allowing control, monitoring and setup via Sennheiser Control Cockpit and WSM Software, with a broad range of products and exisitng accessories (such as microphones), the series allows usage in any environment. Some extra features include up to 88 MHz bandwidth, up to 32 channels, increased RF output power, transmission range of up to 100 metres, and complete compatibility with the LSP 500 PRO wireless speaker system.

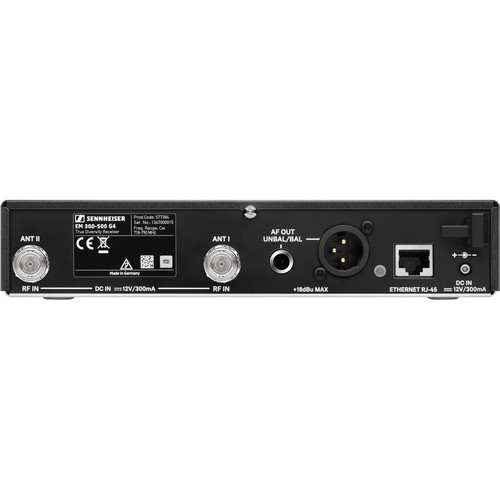

EM 300 G4
Frequency 606-678MHz
Dimensions Approx. 202 x 212 x 43 mm
Compander Sennheiser HDX
THD (Total Harmonic Distortion) ≤ 0.9 %
Weight Approx. 980 g
Audio Output 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Signal-to-noise Ratio ≥ 115 dBA
Switching Bandwidth up to 88 MHz
Peak Deviation ±48 kHz
Nominal Deviation ±24 kHz
Modulation Wideband FM
Power Supply 12 V DC
Antenna Connector 2 BNC sockets
Current Consumption 350 mA
Adjacent Channel Rejection Typically ≥ 75 dB
Intermodulation Attenuation Typically ≥ 70 dB
Receiving Frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks,
each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF Sensitivity < 2.5 μV for 52 dBA eff S/N Squelch 5 to 25 dBμV in steps of 2 dB Equaliser Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) Temperature Range -10 °C to +55 °C Receiver Principle True diversity Blocking ≥ 75 dB SKM 300 G4 Dimensions Approx. Ø 50 x 265 mm Compander Sennheiser HDX THD (Total Harmonic Distortion) ≤ 0.9 % Weight (incl. batteries) approx. 450 g Signal-to-noise Ratio ≥ 115 dBA RF Output Power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW Switching Bandwidth up to 88 MHz Peak Deviation ±48 kHz Nominal Deviation ±24 kHz Operating Time Typically 8 h Modulation Wideband FM Power Supply 2 AA batteries, 1.5 V or BA 2015 accupack Current Consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA Powering 3 V battery / 2.4 V rechargeable battery Transmission Frequency Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels AF Frequency Response 80 – 18,000 Hz Temperature Range -10 °C to +55 °C Frequency Stability ≤ ±15 ppm Easy to use, fast setup time Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment Up to 88 MHz bandwidth, up to 32 channels Increased RF output power (10/30/50 mW) Transmission Range: up to 100 meters / 330 feet Compatible with wireless speaker system LSP 500 PRO RC (remote control) switch available for the bodypack transmitter
