Sennheiser SK 6212 Mini-bodypack Transmitter

Overview
The SK 6212 is a compact, ultra-small digital mini-bodypack designed for maximum performance in musicals, theatrical performances, and broadcast applications. It features an ergonomically optimized construction measuring 63 x 47 x 20mm and is made with an ultra-light robust metal housing weighing only 112 grams. The bodypack is resistant to moisture and sweat and comes with two detachable clips (0°/90°) for a secure fit in any position. It also has an exchangeable antenna and battery and can be used with a variety of lavalier microphones and headsets.

The SK 6212 operates on Link Density Mode (LD mode) with an efficiency-optimized Audio Codec (SePAC) that allows for up to 5 channels per MHz bandwidth. It also utilizes the Sennheiser Digital Audio Codec (SeDAC) and long-range mode, found in the Digital 9000 series, for superb sound and higher dynamic range. With a battery life of 12 hours, the SK 6212 is designed for continuous operation and is intermodulation-free, making it reliable and discreet for performances. Its small size and high-quality performance make it a popular choice for professionals in the world of theatres and music venues.

Summary
Battery Mount / Type: BA 62 lithium-polymer
Connectivity: Radio Frequency (RF)
Connector type: 3-Pin Connector
Included in box
SK 6212 bodypack transmitter
Antenna
Clip, vertical
Clip, horizontal
Quick guide
Safety guide
Specification and manufacturer declaration sheet

About the Sennheiser SK 6212 Mini-bodypack Transmitter
Description

Ultra-light, digital mini-bodypack for discreet but maximum performance on stages during musicals or theatrical performances and broadcast applications. The metal housing is water and sweat-resistant; the exchangeable battery guarantees 12 hours of continuous operation. State-of-the art transmission technology provides reliable performance and an equidistant frequency grid for highly demanding HF conditions.

SK 6212

Size matters – Performance counts

Now, the digital SK 6212 heralds a new era.

This mini bodypack complements the Digital 6000 family, benchmark for challenging digital transmission technology in modern audio productions.

Developed and designed hand in hand with key customers around the globe, the all-new entirely digital SK 6212 meets the highest requirements and so much more.

For performers, stylists and directors, the SK 6212 is neither heavy nor conspicuous. It is as small as a matchbox and conveniently lightweight, has no sharp edges or corners and is discreet and easy to conceal.

Furthermore, engineers appreciate exchangeable batteries and antennas, as well as direct operability and a dependable transmission.

The SK 6212 operates intermodulation-free and utilises an equidistant frequency grid that enables more efficient use of the constantly shrinking available frequency spectrum.

And even when things are taking a bit longer, don’t worry… the 6212’s operating time lasts unbelievable 12 hours.

The SK 6212 combines high expectations with the smallest possible design. It encapsulates hundreds of stories which we have heard from professionals in the world of theatres and music venues, large or small. Developed for today’s shows and equipped for the challenges of the future.

It keeps going. And going. And going.

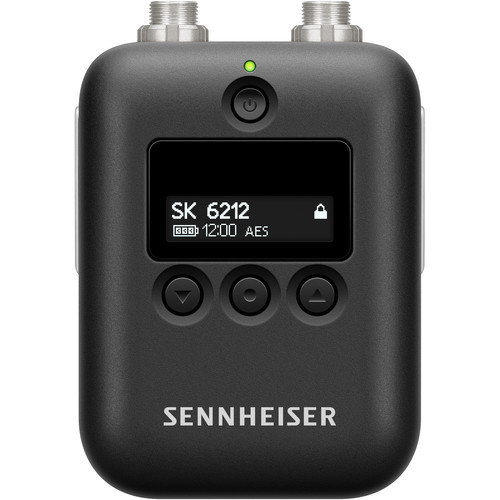

Regardless of the type of musical performance, the SK 6212’s operation is secure, reliable and discreet. With 12 hours of battery life, the battery is designed for even the longest day of rehearsals. Weighing only 112 grams and with dimensions of just 63 x 47 x 20 mm, the SK 6212 is easy to conceal and has no annoying corners or edges. The antenna and battery are exchangeable, and an intuitive control concept with display and control buttons enables direct adjustments on the device.

Size: mini. Spectral efficiency and audio quality: maxi.

The newest member of the Digital 6000 series is also intermodulation-free in its transmission. Even in really difficult RF environments, the equidistant frequency grid permits easy and highly efficient channel configuration. It can also be combined with Digital 9000 and the EK 6042 in long-range mode. The legendary Sennheiser Digital Audio Codec (SeDAC) guarantees clear, artifact-free sound and optimum dynamics. In Link Density mode up to 5 links per 1 MHz bandwidth are possible.

The sum of all its nuances: A good show

The best show is and will remain the sum of its finest details. This is an idea which the SK 6212 has taken from professionals on the world’s stages, big and small. For example; the easy operation, or the easy-to-read display. The multiple attachment options or its seal against moisture. The fact that the display glass has been lowered by 0.3 millimeters – and several other details which make everyday life easier for both technicians and performers. Developed for high expectations, not for compromises

Specifications

Compatibility 6000 series receivers – including the analogue/digital EK 6042 camera receiver, receiver of the Digital 9000 series when in Long Range Mode
Battery BA 62 lithium-polymer
Battery Life up to 12 hours
Dimensions approx. 63 × 47 × 20 mm
THD, total harmonic distortion typ. 0.002%
Weight Approx. 112 g (with BA 62 battery pack, antenna and beltclip)
Audio input 3-pin audio socket
Signal-to-noise ratio typ. 113 dB(A)
RF output power standard mode: 15 mW rms
low power mode: 3.5 mW rms
Switching bandwidth up to 88 MHz
Operating time typ 12 h at 25° C (with BA 62 accupack)
Frequency range A5-A8 (550.000 – 638.000 MHz)
Audio codec SeDAC (Sennheiser Digital Audio Codec)
SePAC (Sennheiser Performance Audio Codec)
Frequency stability < 5 ppm Tunability 25 kHz steps Lower cut-off-frequency adjustable: 30 Hz, 60 Hz, 80 Hz, 100 Hz, 120 Hz Encryption AES 256 Audio frequency response 30 Hz to 20 kHz (-3 dB) Audio Gain Mic: adjustable in 3 dB steps from −6 dB to +42 dB Modulation scheme Digital modulation Long Range Mode Digital modulation Link Density Mode Antenna Output Coaxial socket Features Compact, ultra-small design with ergonomically optimized construction (63 x 47 x 20mm) Designed for 12 hours of continuous operation Made with ultra-light robust metal housing weighing only 112 grams Link Density Mode (LD mode) with efficiency-optimized Audio Codec (SePAC) ensures up to 5 channels per MHz bandwidth Superb sound and higher dynamic range thanks to Sennheiser Digital Audio Codec (SeDAC) and long-range mode, also found in the Digital 9000 series Resistant to moisture and sweat Two detachable clips (0°/90°) for secure fit in any position Exchangeable antenna and battery Can be used with a variety of lavalier microphones and headsets Benefits The Sennheiser SK 6212 Mini-bodypack Transmitter is an ideal choice for any broadcast, theatre, musical or live audio show that requires an inconspicuous, ultra compact and lightweight package with the same reliable and spectrum-efficient transmission as that offered by the other Digital 6000 transmitters. The SK 6212 is miniature in size but big on sound, using the proprietary Sennheiser audio codec of Digital 6000 and Digital 9000. The inconspicuous SK 6212 mini-transmitter offers the same reliable and intermodulation-free transmission as the other Digital 6000 transmitters. With comfortably rounded corners and edges, the mini-bodypack is about 6.25 by 4.65 by 1.95 centimetres in size and a weight of approx. 112g including battery. The engineer has full control over the mini-transmitter via an OLED display and function buttons. As with all Digital 6000 transmitters, the SK 6212 can be IR sync’ed, saving time and hassle – especially in live environments. The flexible antenna is detachable and field replaceable. Special effort was put into ensuring a good level of moisture resistance for the SK 6212, which features an additional inner sealing. The mini-transmitter is powered by a removable BA 62 lithium-polymer battery with a spectacular operating time of up to 12 hours. This means no more stress with battery life during long shows, especially if the bodypacks must be given to the dressing or make-up room a few hours before the actual show starts. The BA 62 battery can conveniently be recharged in the L 6000 rack-mount charger using the new LM 6062 charging module. As part of the Digital 6000 family, the SK 6212 is not only compatible with the 6000 series receivers – including the analogue/digital EK 6042 camera receiver – but also with the receiver of the Digital 9000 series when in Long Range Mode. Read more
