Sennheiser ew 500 G4-KK205-GBW

Overview

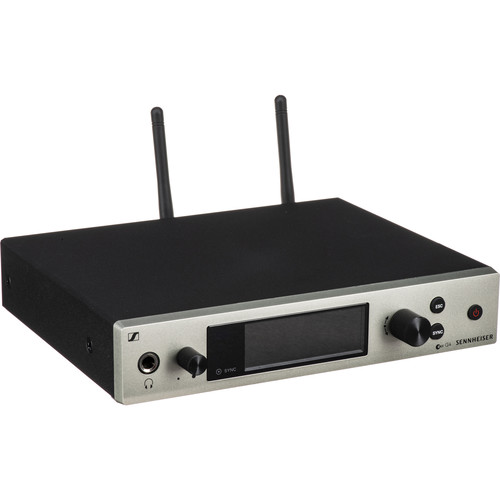

The Sennheiser ew 500 G4 is a true diversity half-rack receiver encased in a durable full-metal housing. Its OLED display allows for easy control and management. The receiver can synchronize wirelessly with transmitters through infrared technology. With up to 32 compatible channels and a bandwidth of up to 88 MHz, the ew 500 G4 offers a stable UHF range with 3520 selectable frequencies. It also features an Ethernet connection for advanced frequency coordination in multi-channel setups through the Wireless Systems Manager (WSM) control software.

The ew 500 G4 brings together the best of two renowned brands, Sennheiser and Neumann. It combines the reliability of wireless transmission with the exceptional studio sound of Neumann. The included KK 205 super-cardioid condenser capsule offers true Neumann sound and is designed for rugged stage use, with excellent pop protection and high feedback resistance. With a high RF output power of up to 50 mW (adjustable in three steps), the ew 500 G4 is a highly flexible and reliable choice for professional audio needs.

Summary
Battery Mount / Type: AA
Connectivity: Radio Frequency (RF)
Connector type: XLR
Included in box
1x EM 300-500 G4 rackmount receiver
1x SKM 500 G4 handheld transmitter
1x KK 205 super-cardioid condenser capsule
1x NT 2-3 power supply
1x GA3 rack kit set
1x Microphone clamp

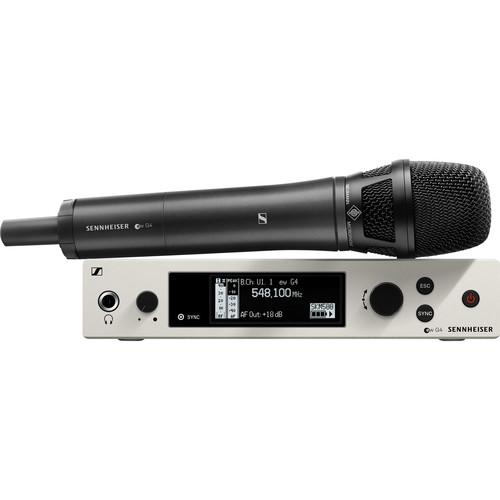

About the Sennheiser ew 500 G4-KK205-GBW
The best of two brands. Sennheiser and Neumann bring the reliability of wireless transmission and the excellence of studio sound together. The super-cardioid condenser capsule KK 205 offers true Neumann sound, combined with the freedom of wireless operation and all the virtues of a rugged stage microphone: excellent pop protection and high feedback resistance.
ew 500 G4 is highly flexible. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

EM 300-500 G4
Dimensions Approx. 202 x 212 x 43 mm
Compander Sennheiser HDX
THD, total harmonic distortion ≤ 0.9 %
Weight Approx. 980 g

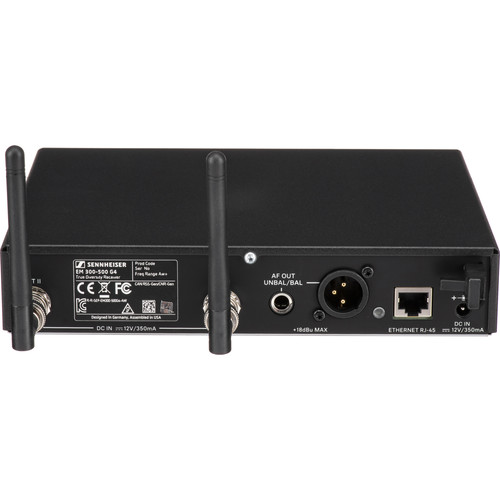

Audio output 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Signal-to-noise ratio ≥ 115 dBA
Switching bandwidth up to 88 MHz
Peak deviation ±48 kHz
Nominal deviation ±24 kHz
Modulation Wideband FM
Power supply 12 V DC
Current consumption 350 mA
Adjacent channel rejection Typically ≥ 75 dB
Intermodulation attenuation Typically ≥ 70 dB
Receiving frequency Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity < 2.5 μV for 52 dBA eff S/N Squelch 5 to 25 dBμV in steps of 2 dB Equaliser Preset 1: Flat Preset 2: Low Cut (-3 dB at 180 Hz) Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz) Preset 4: High Boost (+6 dB at 10 kHz) Antenna Connector 2 BNC sockets Temperature Range -10 °C to +55 °C Receiver Principle True diversity Blocking ≥ 75 dB SKM 500 G4 Dimensions Approx . Ø 50 x 265 mm Compander Sennheiser HDX THD, total harmonic distortion ≤ 0.9 % Weight (incl. batteries) approx. 450 g Signal-to-noise ratio ≥ 115 dBA RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW Switching bandwidth up to 88 MHz Peak deviation ±48 kHz Nominal deviation ±24 kHz Operating time Typically 8 h Modulation Wideband FM Power supply 2 AA batteries, 1.5 V or BA 2015 accupack Current consumption at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 µA Powering 3 V battery / 2.4 V rechargeable battery Transmission frequency Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels AF frequency response 80 – 18,000 Hz Temperature Range -10 °C to +55 °C Frequency stability ≤ ±15 ppm KK 205 Max. sound pressure level 150 dB Pick-up pattern super-cardioid Signal-to-noise ratio 70 dB Sensitivity 2.8 mV/Pa True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control Easy and flexible wireless synchronization between transmitter and receiver via infrared Up to 32 compatible channels Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
