Sennheiser EM 6000

Overview

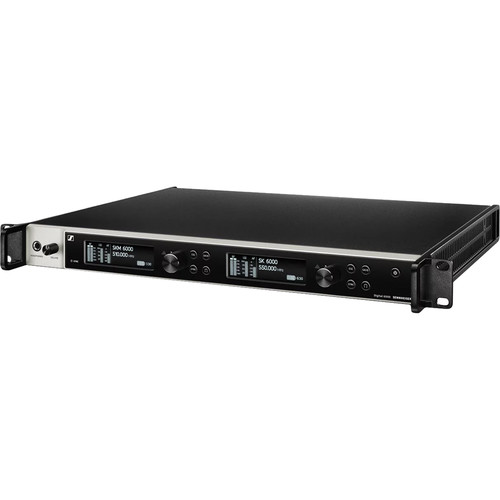

The Digital 6000 receiver is a 19 inch 2-channel receiver with a large 244 MHz switching bandwidth. It features the legendary Long Range mode with a proprietary audio codec from the Digital 9000, ensuring maximum signal reliability. The receiver also has an Equidistant frequency grid for maximum channel density and simple setup, as well as 32 RF pre-selection filters for optimal suppression of interference signals.

The EM 6000 receiver offers a variety of outputs, including digital AES-3, transformer-balanced analog XLR and 6.3 mm jack outputs, and a headphone output. It can also be seamlessly integrated into existing digital or analog infrastructures. The receiver can be monitored and configured via the Wireless System Manager, and is compatible with UHF Sennheiser antenna systems.

Included in box
1x EM 6000
1x Mains cable (with EU, UK or US plug)
Quick guide
Safety guide
2x Antennas
2x BNC Antenna Cables (50 Ω) for Daisy-Chaining
2x Rubber Feet

About the Sennheiser EM 6000
Higher channel density with maximum signal reliability at the same time: Digital 6000 is intermodulation-free and assures through its equidistant frequency grid excellent spectral efficiency and the simplest frequency configuration– even in the toughest frequency environments where other systems already fail. Error correction and audio error masking recognise and fix problems long before they even become audible. When it comes to setup and the user interface, the EM 6000 stands out for clarity, relevance and short pathways.

Digital 6000 can be seamlessly integrated into existing digital or analog infrastructures. The EM 6000 receiver has a digital AES-3 output with word clock inputs and outputs, high-quality transformer-balanced analog XLR and 6.3 mm jack outputs as well as a 6.3 mm headphone output. The Dante™ version with an Audinate Brooklyn ll card additionally offers two Amphenol RJ-45 connectors for integrating the receiver into a Dante™ network, for redundant networks or daisy chain cabling.

Whether we’re talking about reducing information down to the really meaningful key values or smart menus on a high-contrast OLED display, every operating element is a result of practical experience and designed for practical use. All the vital parameters are summarised in one view. Important functions can be reached directly via home screens without long navigation paths. The auto-setup enables scanning and frequency distribution to all connected devices directly via the receiver; naturally Digital 6000 can also be monitored and configured via the Wireless System Manager (WSM).

The EM 6000 is compatible with UHF Sennheiser antenna systems.

Dimensions 44 x 483 x 373 mm
Frequency response 30 Hz – 20 kHz (1.5 dB)
THD, total harmonic distortion < 0.03 % (@ 1 kHz) Weight Approx. 5.2 kg Power consumption Max. 35 W Storage temperature -25°C to +70°C Operating temperature -10°C to +50°C Switching bandwidth 244 MHz Power supply 100 - 240 V AC, 50/60 Hz Antenna connector Input 2x BNC (50 Ω), 12 V DC, max. 200 mA each via antenna sockets, short circuit proof, Output 2 x BNC (50 Ω) Codecs SePAC (Sennheiser Performance Audio Codec) Dynamic range 111 dB (A) type Frequency range 470 - 714 MHz Headphone output level 6.3 mm jack, 2x 100 mW at 32 Ω Image rejection > 100 dB typ.
Sensitivity -100 dBm typ.
Word clock Input: BNC, 75 Ω
Output: BNC, 75 Ω
Sampling Rates: 48 kHz, 96 kHz
Operating relative humidity Operation: Max. 85% at 40°C (non-condensing)
Storage: Max. 90% at 40°C (non-condensing)
Transmission method Digital modulation, “LR” mode Min. frequency spacing for equidistant grid: 325 kHz
Latency Analog Audio Out: 3 ms
Digital Audio Out: 3 ms (AES/EBU)
Audio codec SeDAC (Sennheiser Digital Audio Codec)
Network protocol IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
Receiver Principle Double superheterodyne
Diversity principle True bit diversity
Encryption AES 256
Daisy chain outputs 2x BNC (50 Ω) 0 dB +/- 0.5 dB amplification relative to antenna inputs
Receiving channels 2
Daisy-chained receivers (RF) Max. 8 EM 6000 units
Power plug 3-pin, protection class I as per IEC/EN 60320-1
Water Protection Code The product must not be exposed to dripping and splashing (IP2X)

19in 2-Channel receiver, 19 inch 1RU
Large 244 MHz switching bandwidth
Legendary Long Range mode (LR) with proprietary audio codec (SeDAC) from the masterpiece Digital 9000
Link Density Mode (LD mode) with efficiency-optimized Audio Codec (SePAC) ensures up to 5 channels per MHz bandwidth
Equidistant frequency grid for maximum channel density and simplest setup
32 superior quality RF pre-selection filters for optimal suppression of interference signals at antenna input
Error correction and audio error masking
AES-256 encryption
Automatic frequency setup
Digital and transformer balanced analog outputs XLR, 6.3 mm jack, AES-3, EM 6000 Dante with Brooklyn II Card and Amphenol RJ-45
Integrated antenna splitter for cascading of up to 8 systems
one high-quality OLED display per channel
Link Quality Indicator (LQI)
Wireless Systems Manager (WSM) compatible
Compatible with standard Sennheiser UHF antennas
Compatible with Digital 9000 transmitters in Long Range mode
