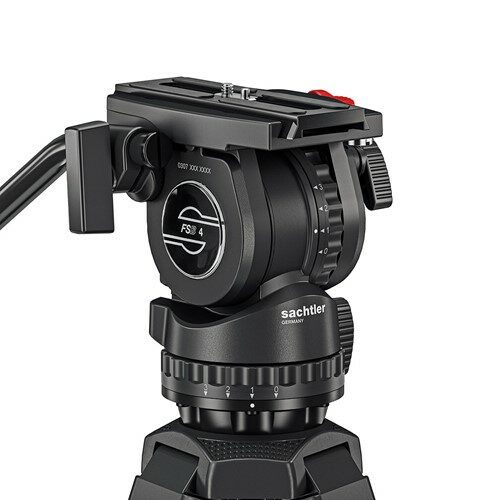

Sachtler FSB 4

OVERVIEW
When you need quick set up and precise balancing while using a smaller camera, the Sachtler FSB 4 Fluid Head doesn’t mean you have to compromise on performance. Speedbalance technology gives you rapid weight compensation for payloads of up to 4 kg, while the snap and go side loading mechanism means mounting handheld cameras and DSLRs can be done from the side of the tripod.
Being able to work quickly and efficiently also means being able to get the perfect shots easily. Once you have balanced your camera, patented Sachtler vibration damping always gives you subtle and smooth movement. Three horizontal and vertical grades of drag also help you work intuitively and quickly, while always being sure your gear isn’t letting you down. The 75 mm head fitting has a large sliding range of 120 mm, helping to give the flexibility to work in the way that gets you the best results.
SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 4kg
Type: Video
INCLUDED IN BOX
FSB 4 fluid head
Pan bar DV 75
Sideload plate S / Ace plate

About The Sachtler FSB 4
When you need quick set up and precise balancing while using a smaller camera, the Sachtler FSB 4 Fluid Head doesn’t mean you have to compromise on performance. Speedbalance technology gives you rapid weight compensation for payloads of up to 4 kg, while the snap and go side loading mechanism means mounting handheld cameras and DSLRs can be done from the side of the tripod.

Being able to work quickly and efficiently also means being able to get the perfect shots easily. Once you have balanced your camera, patented Sachtler vibration damping always gives you subtle and smooth movement. Three horizontal and vertical grades of drag also help you work intuitively and quickly, while always being sure your gear isn’t letting you down. The 75 mm head fitting has a large sliding range of 120 mm, helping to give the flexibility to work in the way that gets you the best results.

Range FSB
Payload 0 to 4 kg
Counterbalance 5 steps + 0
Drag 3 + 0 drag settings
Weight 2.40 kg
Pan bar length 430 mm
Pan bar type Pan bar DV 75
Pan bar attachment 16/-/28 mm
Pan bar count 1
Level bubble Yes
Adaptor viewfinder extension No Adaptor
Bowl size 75 mm
Camera plate Sideload plate S
Temperature range -40 to 60 °C
Tilt range +90° to -70°
Sliding range 120 mm
Interface Compatibility Sideload
