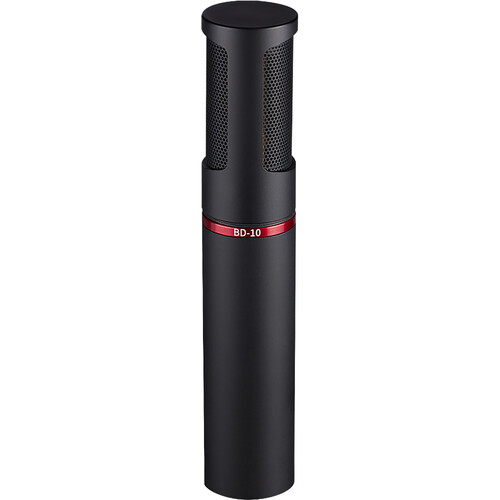

Rycote BD-10 Bidirectional Pencil Mic

Overview
The Rycote BD-10 is a versatile microphone designed for M/S stereo and ambient recording, as well as dual dialogue. Its bidirectional condenser capsule ensures consistent acoustic timbre with other Rycote microphones and high off-axis rejection. The compact preamp features ultra-low noise circuitry and sophisticated RF shielding, making it suitable for use with digital wireless systems and walkie talkies. The gold-plated Neutrik XLR connector and active in-line filtering further enhance its performance.

The materials used in the BD-10, such as non-corrosive machined brass and aluminium interference tube, ensure the best possible and longest lasting RF shielding. Its non-reflective finish adds to its professional look. This microphone is perfect for MS or DMS recording, and can also be used for stereo sound design or field recording. Suggested Rycote accessories include various foam and fur windshields, as well as the Cyclone Windshield and Modular Windshield kits.

Summary
Connectivity: XLR-3M
Direction: Figure 8
Microphone Type: Figure of Eight
Phantom Power: 48
Included in box
1 x BD-10 Microphone

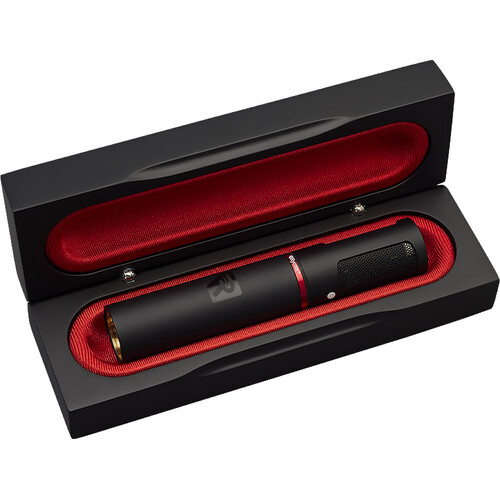

1 x Wooden Protective Case

About the Rycote BD-10 Bidirectional Pencil Mic
The Rycote BD-10 is a Bidirectional (Figure of 8) condenser Microphone designed mainly for M/S stereo and ambient recording as well as dual dialogue. Perfect for use with the SC-08, CA-08 or HC-15 for a complete Rycote M/S Stereo or DM/S stereo solutions. Based around our signature low self-noise capsule it delivers the precision and quality that our range of microphones has become renowned for.

Applications

Used in MS or DMS (Double MS) for doc-style or corporate content in combination with directional mic. Ideal to pick dialogue and ambience with mono sources and avoiding setup change on top of some control over the stereo image.

Can be also used for stereo sound design or field recording

Suggested Rycote Accessories

5cm SGM Foam, 5cm Classic Softie, 5cm Short Fur Softie, 5cm Super Softie, Nano Shield Kit NS1-BA, Cyclone Windshield, Small, Modular Windshield WS 1 Kit, Baseball 19/20

Frequency Range 40Hz – 18 kHz
Self-Noise 18.0 dB-A
Polar Pattern Bidirectional
Capsule Type Back Electret Condenser
Output Sensitivity 14.2 mV/Pa (-36.9 dBV)
Max. Output Voltage 4 Vp (if relative load is < 2kΩ) Output Impedance 100 Ω Min. Load Impedance 1 k Ω Signal / Noise Ratio 76 dB typical (@ 1 kHz,Pa A-weighted) CMRR (@ 1 kHz) > 60 dB
Max. Cable Length 100 m
Power Requirement Phantom Power +48V
Power Voltage Range 24-48V
(Max SPL reduced @ 24V)
Current Consumption 3.0 mA
Max. SPL 135 dB SPL (@ 1 kHz 1.0% THD Typical)
129 dB SPL (@ 1 kHz 0.5% THD Typical)
RFI Shield Yes
Connector XLR-3M
Weight 86 g
Colour Black with Red Accent

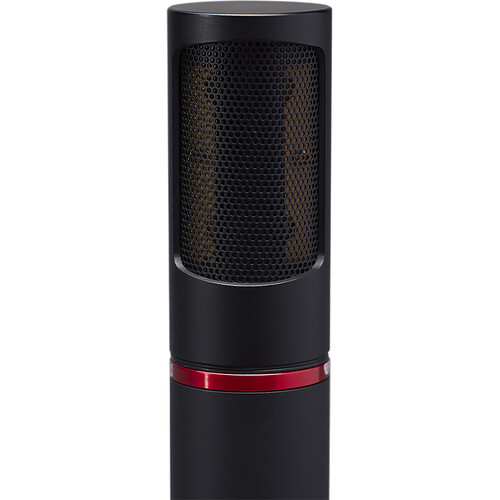

Capsule
Bidirectional condenser microphone
Consistent acoustic timbre with other Rycote microphones
High off-axis rejection

Preamp
Compact design
Ultra-low noise circuitry
Sophisticated RF shielding
Low power consumption

Connector
Gold-plated Neutrik XLR connector

RF- protection
Active in-line filtering
Fine-tuned mechanical RF shielding
Thoroughly tested against digital wireless systems and walkie talkies

Materials
Preamp made from non-corrosive machined brass
Low impedence to ensure best possible and longest lasting RF shielding
Aluminium Interference tube
Non reflective finish
