Rosco DMG DASH Pocket LED Quad Kit

Overview
A new firmware update, version 1.0.12, is now available for DMG DASH fixtures with CRMX technology. This update allows for superior colour-mixing capabilities thanks to Roscos patented six-chip MIX Technology. The DMG DASH also comes fully accessorized with a set of beam-shaping accessories, including a diffuser panel, dome diffuser, eggcrate, and gel holder. It can be controlled wirelessly through the myMIX app, available for both iOS and Android. Dont be fooled by its pocket-sized design, as the DMG DASH can produce up to 500 lumens of output. It is also weatherproof and durable, made from lightweight aluminium alloy.

To update the firmware of a DMG DASH, simply ensure that the myMIX app is up-to-date on your mobile device and connect 1-4 fixtures to the app. A prompt will then appear to update the firmware, which will take approximately 30 minutes. The DMG DASH is a powerful and versatile lighting solution, available in a 4-unit Quad Kit that includes a DMG DASH LINK to connect all four lights together into one unit.

Included in box
4 x DMG DASH LED Fixtures
4 x Cases
4 x USB-C Charging Cables
4 x Flat Diffusers
4 x Domes
4 x Eggcrates
4 x Gel Holders
4 x Light Stand Mounts
4 x Magnetic Mounts
1 x DMG DASH LINK

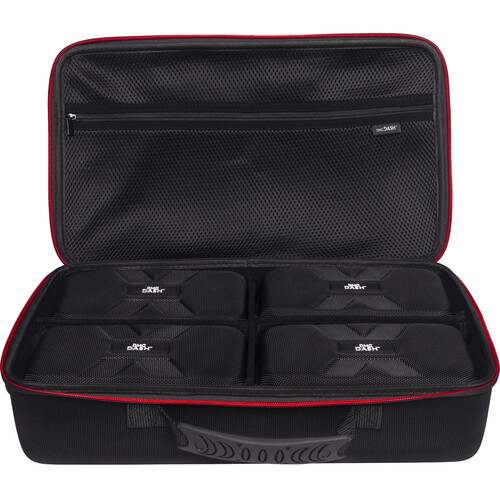

1 x Quad Kit Carrying Case

About the Rosco DMG DASH Pocket LED Quad Kit
New CRMX2 firmware update available. Please click here for more information

Superior Colour-Mixing

DMG DASH features Rosco’s patented, six-chip MIX® Technology – enabling it to produce the same coloir-quality and True Rosco Colour™ gel matches that other MIX lights do!

Fully Accessorized

Each DMG DASH Kit ships with a set of beam-shaping accessories, including a flat diffuser panel, dome diffuser, eggcrate, and a gel holder for adding any Rosco gel or diffusion material desired.

Controlled VIA myMIX

DMG DASH is wirelessly controlled from your mobile device. Use the free myMIX app to select a colour temperature, choose a colour, or set a light level. Available for iOS and Android.

Pocket Sized But Powerful

Don’t let its small size fool you, the battery-operated DMG DASH can produce up to 500 lumens of output – all from a fixture that fits in the palm of your hand.

Available in a 4-unit Quad Kit

The DMG DASH Quad Kit includes four fixtures and four sets of accessories. The kit also includes a DMG DASH LINK that can connect all four lights together into one unit!

Weatherproof & Durable

It takes a thrashin’ and keeps on DASHIN’.DMG DASH is constructed from a lightweight aluminium alloy to provide a shock-resistant and weatherproof housing.

*Firmware 1.0.16 is now available for DMG DASH with CRMX fixtures

Good news! You can now update your DMG DASH using the fixture’s USB-C charging cable instead of only via Bluetooth. Download the Firmware Update to a PC and follow the Firmware Instructions here to get started

Lux @ 1m (3.3 Feet) 250 Lux @ 6500K
Lux @ 1m (3.3 Feet) Boost Mode 320 Lux @ 6500K
Max. Output 500 lumens
Max. Power 14W
Battery Runtime Three Hours At 100% Intensity (Less In Boost Mode)
LED Colours Red/Green/Blue/Lime/Amber/White (4000K)
Light Modes (With MIX® Technology) WHITE/GEL (With True Rosco Colour™ Gel Matches)/COLOUR – HSI & XY (With Rec. 709 & Rec. 2020
overlays)/EFFECTS/SOURCE MATCH
Colour Temperature 1700K – 10,000K
Colour Rendering CRI Average: >95 and TLCI Average: >90
Flicker Free Up To 1,000 FPS

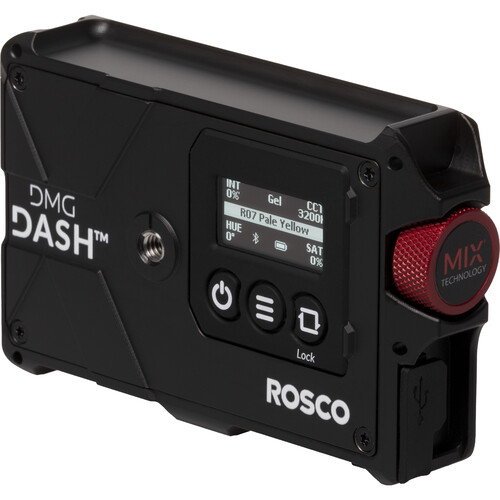

On-Board Control Local UI: 1.3″OLED Graphical Display-128px x 64px
Wireless Control Bluetooth® BLE Via The myMIX® App-Available for iOS® & Android®
Size 5”x 3.1”x 1.1” / 12.8cm x 8cm x 2.8cm
Weight 12.8 oz. / 367g
Body Material Aluminium Alloy
Outdoor Rating Weather Resistant – IP54
Circuit Board Material Aluminium
Number of LEDs 99 Emitters
Battery Specifications 6000mAh/3.7v
Charging Connector USB Type-C (Cable Included In Kit)
Charging Voltage 5 VDC
Recommended Charger Fast Charge 3-Amp (Minimum 2-Amp)
Operating Temperature 0-104ºF/0-40ºC
Charging Temperature 50-113ºF/10-45ºC
Cooling Mode Passive – Free Air Convection
Mounting Accessories (Included In Kit) Light Stand Mount/Magnetic Mount
Beam Shaping Accessories (Included In Kit) Flat Diffuser/Dome Diffuser/Eggcrate/Gel Holder
