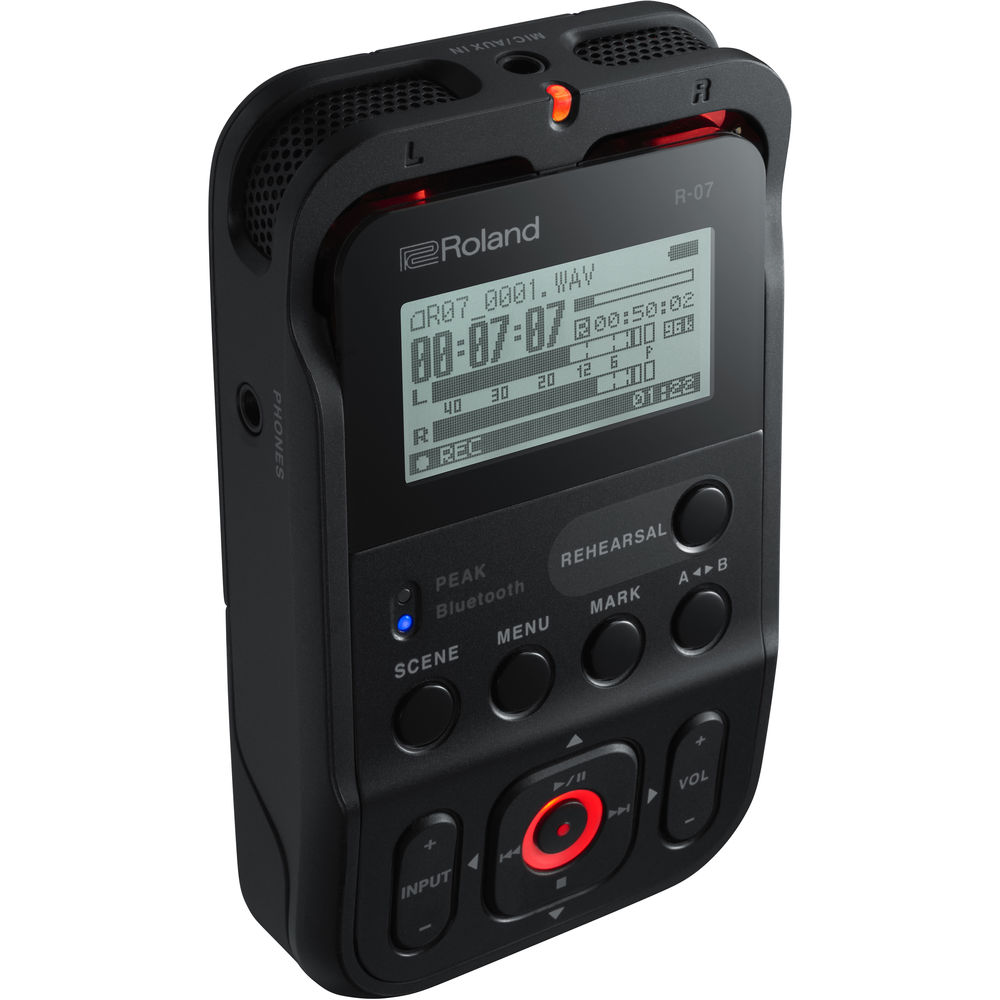

Roland R-07 Audio Recorder

OVERVIEW
The Roland R-07 High Resolution Audio Recorder is a powerful and versatile handheld device perfect for musicians, journalists, students, and anyone who needs to capture sound on the go. With support for WAV and MP3 formats and a range of recording modes, it ensures high-quality audio capture in any situation.

Featuring a sleek and compact design, the R-07 also offers wireless monitoring and remote control capabilities, making it the ultimate portable recording solution. Its Bluetooth technology, enhanced with Qualcomm aptX audio, allows for easy control and playback from supported smartphones, smartwatches, and Bluetooth speakers.

While smartphones may be able to handle basic recording needs, the R-07 goes beyond with its professional-grade features and intuitive operation. It is available in three stylish colors and can run on batteries or USB power, making it a convenient choice for on-the-go recording.

The R-07 also boasts a unique one-touch Scene function, which automatically adjusts settings such as sample rate, record mode, limiter, and input level for different recording scenarios. This ensures that you always get the best possible sound without having to fiddle with complicated settings.

With Dual Recording and Hybrid Limiting, the R-07 provides added protection against clipping and overload, ensuring that your recordings are always safe and sound. It can make two simultaneous recordings at different levels, allowing you to replace any clipped sections with a backup recording. Plus, its Hybrid Limiting feature minimizes artifacts for a clean and professional sound.

SUMMARY
Recording Formats:
MP3
WAV
Outputs: 3.5mm
Battery Mount / Type: AA
Colour:
Black
INCLUDED IN BOX
1x R-07 Audio Recorder – Black

About The Roland R-07 Audio Recorder – Black
Roland R-07 High Resolution Audio Recorder, a convenient handheld recording device for musicians, journalists, students, and anyone who needs to capture sound on the go. The R-07 features multiple high-quality recording modes, plus unique dual recording and hybrid limiting functions that ensure perfect audio capture every time. It also includes Bluetooth for remote operation and features Bluetooth-capable audio streaming enhanced with Qualcomm aptX audio technology.

Stylish, ultra-portable recorder with wireless monitoring and remote control. The R-07 packs mission-critical recording features into a stylish and ultra-portable device that goes anywhere life takes you. High-resolution audio, one-touch Scene memory, and innovative Hybrid Limiting ensure great sounding recordings no matter what the situation. And wireless listening and remote control mean you can record with less wires in more places.

Beyond the Smartphone
While a smartphone can cover some basic recording situations, for reliable and professional results you really need a dedicated recorder. But a lot of recorders are bulky, complicated, and require an array of wires and adapters. The R-07 is simple and intuitive, goes anywhere, and provides mission-critical recording functions leaving your phone free to do what it does best.

Beauty and Brains
The R-07 looks great, sounds superb, and fits comfortably in your hand or your pocket. It’s easy to use yet provides truly professional results with one-touch recording setup. Its next-generation Bluetooth capabilities mean you can control, monitor and listen back wirelessly using supported smartphones, smartwatches and Bluetooth speakers. It comes in three stylish colors and runs on two AA batteries or USB bus power.

Set the Scene
A recorder as compact and go-anywhere as the R-07 could end up in a lot of different recording situations. Whether it’s on-location interviews, on-the-road demos, classrooms, boardrooms, field recording, or just about anything else you can imagine, the R-07 can automatically apply the ideal settings. When you select a Scene, the sample rate, record mode, limiter, low cut, and input level instantly adjust to their optimal settings. And you can alter any of the settings and save them for next time, so you’ll never miss that magic moment.

Designed for a Wireless WorldThe R-07 uses the latest Bluetooth technology with Qualcomm aptX for enhanced streaming performance. Remote control from your smartphone or from supported smartwatches. Manage recordings and ensure what’s being recorded is exactly what you want, even while the R-07 is in its prime recording location, and out of reach. Listen on wireless headphones or Bluetooth speakers—all while cutting cable clutter and staying out of the way of your recording subjects.

Safe and Sound
With Dual Recording and Hybrid Limiting, you’ll never ruin a vital recording due to overload or clipping. And you won’t have to worry about artifacts from aggressive limiting either. The R-07 can make two simultaneous recordings—one at full level and another at a lower level with increased headroom. If there’s unexpected clipping in the main recording, you can replace that section with a portion of the lower-level backup recording. Hybrid Limiting can even handle this automatically, so you get all the safety of limiting with none of the downsides.

RECORDER PART:
Tracks 2 (stereo)
4 (stereo x2) * WAV x 2 recording mode only
Signal Processing AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz
Data Type [For Recording] * Stereo only
WAVE:
Sampling Rate: 44.1/48/88.2/96 kHz
Bit Depth: 16/24 bits
MP3 (MPEG-1 Audio Layer 3):
Sampling Rate: 44.1/48 kHz
Bit Rates: 64/96/128/160/192/224/320 kbps
WAVE + MP3:
Sampling Rate: 44.1/48 kHz
Bit Depth: 16 bits
Bit Rates: 128 kbps
WAVE x 2:
Sampling Rate: 44.1/48 kHz
Bit Depth: 16/24 bits
[For Playback]
WAVE:
Sampling Rate: 32/44.1/48/88.2/96 kHz
Bit Depth: 16/24 bits
MP3 (MPEG-1 Audio Layer 3):
Sampling Rate: 32/44.1/48 kHz
Bit Rates: 32–320 kbps or VBR (Variable Bit Rate)
Memory Cardmicro SD Card
SDHC format compatible
INPUT/OUTPUT:
Audio Inputs Internal Stereo Microphone
MIC/AUX IN (Stereo miniature phone type, plug-in powered mic)
*The Internal Mic and the MIC/AUX IN can’t be used at the same time; only the MIC/AUX IN is effective.
Audio Output Phones (Stereo miniature phone type)
Internal Speaker for playback (monaural)
*The Internal Speaker and the Phones can’t be used at the same time; only the Phones is effective.
Nominal Input Level (Variable) MIC/AUX IN: -31 dBu (Default input level)
* 0 dBu = 0.775 Vrms
Input Impedance MIC/AUX IN: 4.5 k ohms
Output Level 3 mW + 3 mW (In case 16 ohms load)
Recommended Load Impedance 16 ohms or greater
Frequency Response 20 Hz – 40 kHz (+-3 dB)
USB Interface USB port: USB Micro-B type
Supports USB 2.0/1.1 mass storage device class
Supports USB audio class 1.0 (44.1 kHz or 48 kHz, *R-07 system program Ver. 1.100 or later)
BLUETOOTH:
Bluetooth R-07 Remote: Bluetooth technology: Bluetooth Ver 4.0
Transmitting Power: Specification Power Class 2 (Line of sight range 10 m (30 ft))
Profile Support: A2DP, AVRCP
CODEC Support: SBC, Qualcomm aptX Qualcomm aptX low latency
EFFECTS:
Effects Playback only. Excludes playback in 88.2 kHz or 96 kHz.
Reverb and Speed Change can’t be used at the same time.
Reverb 4 types (Hall1, Hall2, Room, Plate)
Speed Change 50 – 150 % of playback speed
OTHER:
Display Graphic LCD 128 x 64 dots (white backlit)
Power Supply Alkaline battery (AA, LR6) x 2,
or Rechargeable Ni-MH battery (AA, HR6) x 2,
or Supplied from the computer via USB
Operating System (USB Audio Class 1.0) Windows 7, Windows 8.1, Windows 10
OS X 10.10, OS X 10.11, macOS 10.12, macOS 10.13, macOS 10.14
iOS 11, iOS 12
Current Draw 350 mA (MAX)
Duration of continuous use with Alkaline battery operation Playback: Approximately 15 hours
Recording: Approximately 15 hours
* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories Leaflet “Read Me First”
Owner’s manual
microSD card (inserted in the R-07)
Batteries (two AA)
Options Windscreen: R07-WS
Microphone Stand Adaptor: OP-MSA1
Binaural Microphones / Earphones: CS-10EM
SIZE AND WEIGHT:
Width 61 mm
2-7/16 inches
Depth 103 mm
4-1/16 inches
Height 26 mm
1-1/16 inches
Weight (including batteries) 150 g
6 oz

WAV support: 44.1/48/88.2/96 kHz, 16/24-bit
MP3 support: 64/96/128/160/192/224/320 kbps
Hybrid Limiter and Dual Recording
Bluetooth remote control with smartphone and smartwatch
Wireless headphone and speaker playback
One-touch Scene function for instant setup in any recording scenario
Tuner and metronome for musical applications
Rehearsal function for perfect input levels with a single touch
128 x 64 graphic LCD with white backlight for easy visibility
Supports microSD cards (SD, SDHC)
Mic/aux Input and headphone output
Runs on batteries (AA x 2) or USB bus power
Built-in speaker for convenient playback anywhere
Stylish, compact design available in black, red, or white
Simultaneous WAV and MP3 recording
