OVERVIEW

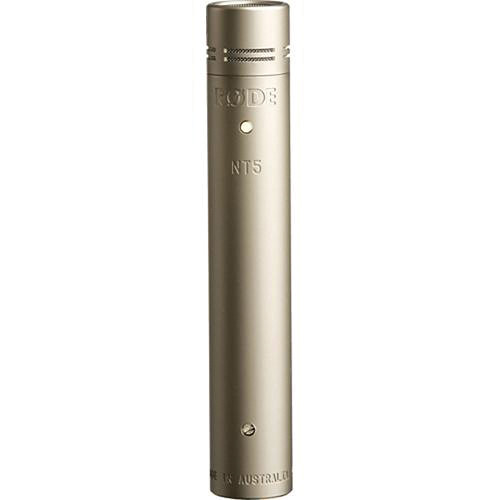

The NT5 is a small-diaphragm cardioid-condenser microphone designed for recording acoustic instruments, drum overheads, cymbals, and live performances. It features a 1/2″ capsule and an active J-FET impedance converter with bipolar output buffer. The microphone is finished in a durable satin nickel and is suitable for both single and stereo X/Y mic set-ups. Additionally, the NT5 comes in a matched pair and is supplied in a custom carry case with windshields and mounts.
The compact size and external polarization of the NT5 make it a versatile choice for various recording situations. Its durability and included accessories make it a convenient option for musicians and sound engineers alike. Whether used for recording or live performances, the NT5 is a reliable and high-quality microphone.
SUMMARY
Connectivity: 3-Pin XLR

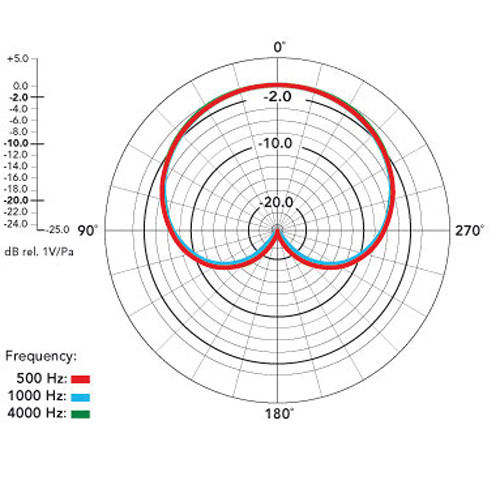

Microphone Type: Cardoid
Phantom Power: 48
INCLUDED IN BOX
Single 1/2″ diaphragm Condenser Mic
Pouch
RM5 stand mount
WS5 windshield
Acoustic Principle Pressure Gradient
Active Electronics JFET impedance converter with bipolar output buffer
Capsule 0.50 inch
Address Type End

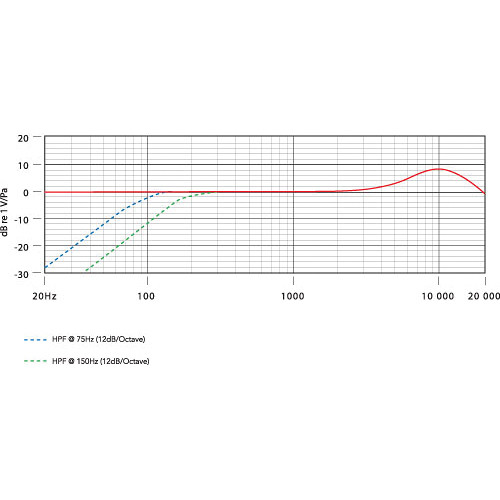

Frequency Range 20Hz – 20kHz
Output Impedance 100 ohmns
Maximum SPL 143dB SPL (@ 1kHz, 1% THD into 1Kohmn load)
Maximum Output Level 13.9dBu (@ 1kHz, 1% THD into 1Kohmn load)
Sensitivity -38.0dB re 1 Volt/Pascal (12.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Power Options +48V phanton power required from mixer or interface / +24V phantom power required from mixer or interface
Weight 101.00gm
Dimensions 118.00mmH x 20.00mmW x 20.00mmD
Output 3-pin XLR Output
