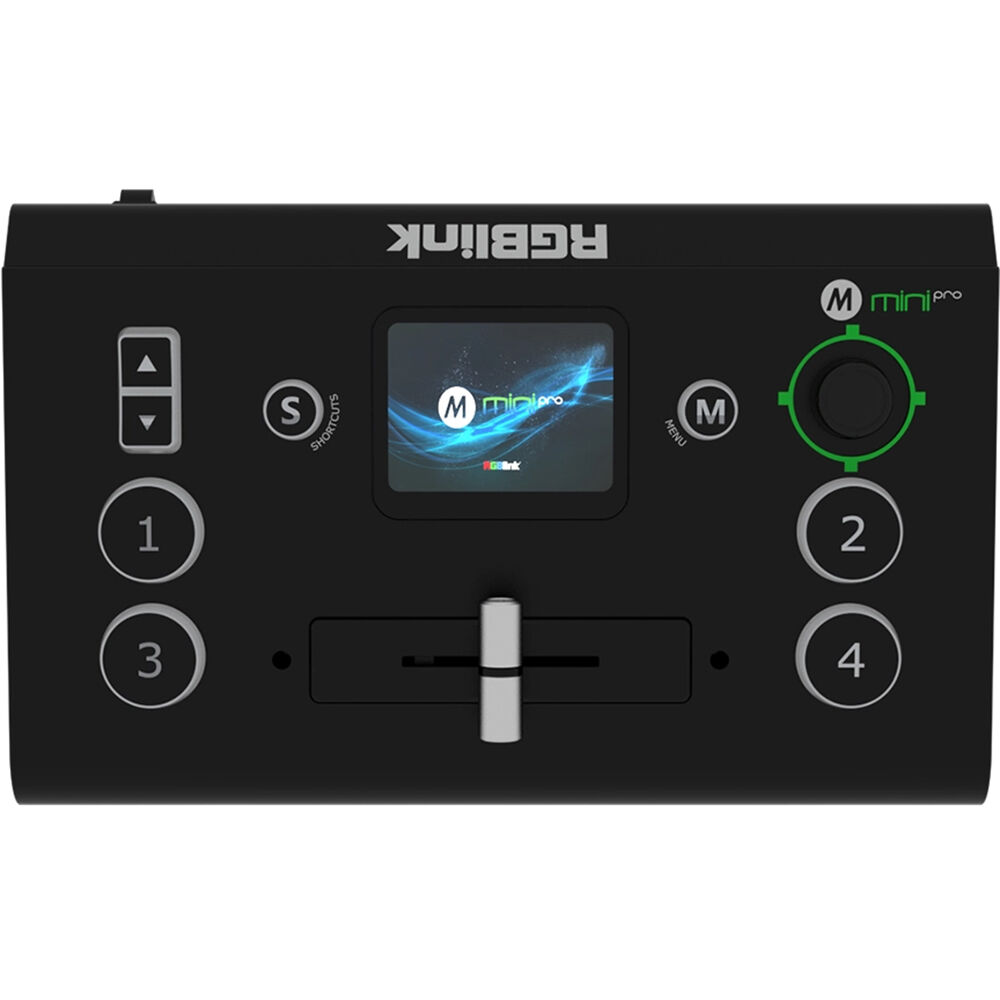

RGBlink Mini+ HDMI Mini Switcher

OVERVIEW
The RGBlink mini+ (230-0001-02-0) is a powerful and compact push-stream switcher, designed to enhance your live streaming experience. With its advanced features such as logo overlay, Chroma Key, and PTZ control, the mini+ is the perfect tool for professional live events and productions.

One of the standout features of the mini+ is its USB 3.0 live streaming port, which allows for high-speed data transfer and seamless streaming. Its compact design makes it easy to carry and set up, making it ideal for on-the-go productions.

The mini+ also offers a live preview of four inputs, allowing you to monitor your sources in real-time. With seamless switching, auto cut, and manual switch options, you have full control over your production and can easily switch between sources with smooth transitions.

For added visual effects, the mini+ offers PIP (Picture-In-Picture) presets, giving you the ability to display multiple sources on one screen. The Chroma Key feature allows you to remove backgrounds and add custom graphics or logos, making your stream stand out.

With the mini+, you can also apply overlay logos to your stream, giving it a professional and branded look. The audio insert/extract feature allows you to add or remove audio sources, giving you full control over your audio output.

The HDMI output of the mini+ can be used as a PGM (Program) or Multi-view output, giving you flexibility in your setup. You can also connect and control up to four PTZ cameras, making it easy to capture different angles and shots.

Controlling the mini+ is simple, with the ability to remotely control it from the XPOSE mini software for computers, or the XPOSE mini app for mobiles and tablets. It also supports third-party apps, including OBS Studio, for even more control options.

In summary, the RGBlink mini+ is a versatile and powerful push-stream switcher, packed with features to enhance your live streaming experience. Its compact design, advanced features, and wide range of control options make it a must-have for any professional production.

INCLUDED IN BOX
1x Mini+
1x Power Adapter
1x USB 3.0 Cable

About The RGBlink Mini+ HDMI Mini Switcher
mini+, as a pocket-sized push-stream switcher, supports real-time monitoring, special effects switching,live streaming, audio insertion, independent input format conversion,PTZ camera control based on VISCA protocol, Chroma key, LOGO overlay and other functions. mini+ is able to control 8 PTZ cameras at the same time and do operations of Zoom In/Out. Meanwhile, mini+ also supports not only Window and MAC operating systems,but also ISO and Android mobile phones for a wide range of fast operation.

Connectors
Input HDMI 4 x HDMI-A
Output HDMI 1 x HDMI-A
USB 3.0 1 x USB Type A
Audio In 1 x 3.5mm Stereo Jack
Out 1 x 3.5mm Stereo Jack
Communications LAN 1 x RJ45
Power 1 x DC Jack
Performance
Input Resolutions HDMI
SMPTE 720p@50/60
1080i@50/60
1080p@23/24/30/50/60
VESA 1024×768@60
1280×720@60
1280×768@60
1280×800@60
1280×1024@60
1360×768@60
1366×768@60
1440×900@60
1600×1200@60
1680×1050@60
1920×1080@60
1920×1200@60
Output Resolutions HDMI
SMPTE 720p@50/60
1080p@24/25/30/50/60
VESA 1024×768@60
1280×720@60
1280×768@60
1280×1024@60
Connectors
Input HDMI 4 x HDMI-A
Output HDMI 1 x HDMI-A
USB 3.0 1 x USB Type A
Audio In 1 x 3.5mm Stereo Jack
Out 1 x 3.5mm Stereo Jack
Communications LAN 1 x RJ45
Power 1 x DC Jack
Performance
Input Resolutions HDMI
SMPTE 720p@50/60
1080i@50/60
1080p@23/24/30/50/60
VESA 1024×768@60
1280×720@60
1280×768@60
1280×800@60
1280×1024@60
1360×768@60
1366×768@60
1440×900@60
1600×1200@60
1680×1050@60
1920×1080@60
1920×1200@60
Output Resolutions HDMI
SMPTE 720p@50/60
1080p@24/25/30/50/60
VESA 1024×768@60
1280×720@60
1280×768@60
1280×1024@60
Connectors
Input HDMI 4 x HDMI-A
Output HDMI 1 x HDMI-A
USB 3.0 1 x USB Type A
Audio In 1 x 3.5mm Stereo Jack
Out 1 x 3.5mm Stereo Jack
Communications LAN 1 x RJ45
Power 1 x DC Jack
Performance
Input Resolutions HDMI
SMPTE 720p@50/60
1080i@50/60
1080p@23/24/30/50/60
VESA 1024×768@60
1280×720@60
1280×768@60
1280×800@60
1280×1024@60
1360×768@60
1366×768@60
1440×900@60
1600×1200@60
1680×1050@60
1920×1080@60
1920×1200@60
Output Resolutions HDMI
SMPTE 720p@50/60
1080p@24/25/30/50/60
VESA 1024×768@60
1280×720@60
1280×768@60
1280×1024@60
1360×768@60
USB Streaming 1280×720@50/60
1280×1024@60
1360×768@60
1920×1080@24/25/30/50/60
Note: Refer connected computer for applicable resolution support
Supported Standards HDMI 1.3
USB 3.0
H.265 ITU-T H.265
ISO/IEC 23008-2
PTZ VISCO
Power Input Voltage DC 12V/1.5A (via Plug Pack supplied)
Max Power 18W
Environment Temperature -0℃～70℃
Humidity 10% ~ 85% RH
Physical
Weight Net Device 0.5kg
Packaged 1pc 1.25kg
USB Streaming 1280×720@50/60
1280×1024@60
1360×768@60
1920×1080@24/25/30/50/60
Note: Refer connected computer for applicable resolution support
Supported Standards HDMI 1.3
USB 3.0
H.265
ITU-T H.265
ISO/IEC 23008-2
Power Input Voltage DC 12V/1.5A (via Plug Pack supplied)
Max Power 18W
Environment Temperature -0℃～70℃
Humidity 10% ~ 85% RH
Physical
Weight Net Device 0.5kg
Packaged 1pc 1.25kg
Dimensions
Net Device 180mm x 113mm x 49mm
Packaged 1pc 255mm x 145mm x 85mm
USB 3.0 live streaming port
Compact design
Live preview of four inputs
Seamless switching
Auto cut and manual switch
Transition effects
PIP (Picture-In-Picture) presets
Chroma Key
Apply overlay LOGO
Audio insert/extract
HDMI output as PGM or Multi-view
Connect & control up to four PTZ cameras
Control remotely from XPOSE mini software for computers
Control remotely from the XPOSE mini app for mobiles & tablets
Support for third party apps including OBS Studio
