OVERVIEW
The RED V-RAPTOR XL (X) 8K VV is a powerful cine camera that combines the strengths of REDs two families of cameras into one all-purpose workhorse. With its advanced features and cutting-edge technology, it provides an amazing image enhanced on-set experience for filmmakers.
The V-RAPTOR XL (X) boasts a 8K VV sensor, which is the culmination of the advancements of both the V-RAPTOR line and the KOMODO. This sensor leverages the latest technology to deliver stunning image quality, high frame rates, and impressive light sensitivity. All of this is housed in a large-scale-production ready XL camera body.
Designed for high-end motion picture and television productions, as well as any filmmaker looking for an all-in-one solution, the V-RAPTOR XL (X) supports a wide range of common batteries found on set today. It also features a built-in electronic ND, allowing for precise selection of density in ¼, 1/3, and full stop increments. This provides unprecedented exposure and depth of field control for a cinema camera of this level.
The V-RAPTOR XL (X) also offers various tools for camera assistants, including dual voltage battery support, 12V and 24V auxiliary power outputs, and compatibility with the DSMC3 RED Touch 7.0″ LCD. It also supports wireless timecode, genlock, and camera control, making it a versatile and convenient choice for any production.
The V-RAPTOR XL (X) and the DSMC3 platform also feature advanced connectivity solutions, such as remote control and monitoring, in-camera Frame.io integration, and RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110. This allows for improved in-camera audio performance and run and gun single system audio setups.
The V-RAPTOR XL (X) is also equipped with RED Global Vision, a suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. This includes Extended Highlights, which allows for more detail in highlight areas for HDR finishes or softer highlight roll-off for SDR. It also includes Phantom Track, which streamlines any Virtual Production environment and allows for monitoring of distinct R3D clips per sub-frame slice.
INCLUDED IN BOX
1x V-RAPTOR® XL [X] 8K VV (V-Lock)
1x V-RAPTOR® XL PL Mount
1x RED® PL Mount Shim Pack
1x RED® AC Power Adaptor 270W
1x 3-Pin XLR-to-4-Pin 2B Power Cable 10′
1x RED® Logo Sticker
1x V-RAPTOR® XL [X] Information Card (incl. registration and support info)
2 Year Standard Warranty

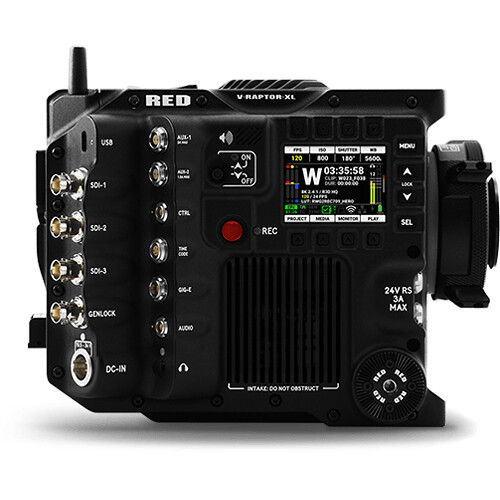

About The RED V-RAPTOR XL (X) 8K VV V-Lock
AMAZING IMAGE ENHANCED ON-SET EXPERIENCE
V-RAPTOR® XL [X] 8K VV combines the strengths of RED’s two families of cameras into one powerful all-purpose workhorse. The frame rates, light sensitivity, and resolution of the V-RAPTOR line combined with the global shutter advancements of KOMODO, the V-RAPTOR (X) 8K VV sensor is the culmination of the laverages the entianate inty a image manial, sial snute, nigest merate a quision, a inside
of a large-scale-production ready XL camera body.
TOOLS OF THE TRADE
V-RAPTOR XL (X) is designed to support high-end motion picture and television productions as well as any filmmaker who would benefit an all-in-one solution.
Dual voltage battery support offers compatibility with a wide range of common batteries found on set today, both 14 V batteries and high voltage 26 V V-Lock or Gold Mount options.
Built-in electronic ND allows cinematographers to precisely select their density in ¼, 1/3, and full stop increments, providing never before seen exposure and depth of field control inside a cinema camera of this level.
12 V and 24 V auxiliary power outputs allows camera assistants to power all the peripherals needed to do their job from one centralized place.
Front facing 3G-SDI and 2-Pin 12 V power, as well as compatibility with the DSMC3 RED Touch 7.0″
LCD, supports any camera operators viewing preference.
Wireless timecode, genlock, and camera control, as well as four SDI outputs support the DIT, giving them access to everything they need at their cart.
Improved in-camera audio performance for run and gun single system audio setups.
Additionally, the V-RAPTOR XL (X) and the DSMC3 platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.
GLOBAL VISION
V-RAPTOR XL (X) 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. Global Vision’s Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HDR finishes, or softer and more subtle highlight roll-off for SDR. RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrameTM or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live on-set over each SDI.
EXTENDED WARRANTY
The camera comes with a two (2) year standard warranty. Cameras are eligible for Extended Warranty, which extends the standard warranty for two (2) additional years after the initial standard warranty period expires.
Sensor
Sensor Type V-RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS
Effective Pixels 8192 x 4320
Sensor Size 40.96mm x 21.60mm (Diagonal: 46.31mm)
Dynamic Range 17+ stops
Lens Mount
Built-In ND Motorized clear filter and precision controlled electronic ND filter
Electronic ND minimum density 2 stops, maximum density 7 stops
Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop
Mount Type Interchangeable Lens Mount, Included V-RAPTOR XL PL Mount (Shimmable)
Optional V-RAPTOR XL Locking Canon EF Mount
Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control
Media Type CFexpress Type B
Battery Type Integrated Dual Voltage 14/26V V-Lock or Gold Mount Battery Interface
Recording
Max Data Rates Up to 800 MB/s using RED branded or other qualified CFexpress media cards1
REDCODE® RAW Max Frame Rates 120 fps at 8K 17:9, 150 fps at 8K 2.4:1
140 fps at 7K 17:9, 175 fps at 7K 2.4:1
160 fps at 6K 17:9, 200 fps at 6K 2.4:1
192 fps at 5K 17:9, 240 fps at 5K 2.4:1
240 fps at 4K 17:9, 300 fps at 4K 2.4:1
320 fps at 3K 17:9, 400 fps at 3K 2.4:1
480 fps at 2K 17:9, 600 fps at 2K 2.4:1
Playback Frame Rates (Project Time Base) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
Best Available REDCODE® Settings REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps
REDCODE LQ and ELQ at 8K 17:9 up to 120 fps
REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps
REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps
REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps
REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps
REDCODE® RAW Acquisition Formats 8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9, 2:1, 2.4:1, 16:9, 1:1
4K 17:9, 2:1, 2.4:1, 16:9, 1:1
3K 17:9, 2:1, 2.4:1, 16:9, 1:1
2K 17:9, 2:1, 2.4:1, 16:9, 1:1
APPLE PRORES Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K
(4096×2160) 120P
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P.
General
Construction Aluminium Alloy
Dimensions 200.81 mm x 151.38 mm x 165.9 mm / 7.9 in. x 6 in. x 6.5 in. (LxWxH, largest fixed dims.)
Weight 7.99 lbs / 3.62 kg (V-Lock with PL Mount)
DC Power Input 19.5-34 V via 4-Pin 2B DC-IN
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 50°C (-4°F to 122°F)
Storage Relative Humidity 0% to 85% non-condensing
Features
RED Global Vision Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios.
Phantom Track recording mode to capture multiple LED instances as dedicated clips.
Colour Management Image Processing Pipeline 2 (IPP2)
Supports 33×33×33 3D LUTs
Supports import and adjustment of CDLs
Audio Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
3.5mm stereo headphone port
Autofocus Phase Detect with Face Detection
IP Connected Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110
Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3
Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera
to Cloud workflow and high speed remote media offload
Power Outputs Regulated 12 V Outputs
2x P-TAP Connectors (3AMP Combined)
1x Rear 2-Pin 0B (3 AMP)
1x Rear 2-Pin 0B (1.5 AMP)
1x Front 2-Pin 0B (1 AMP)
Regulated 24 V Connectors
2x Front 3-Pin Fischer (3 AMP Combined)
Monitor Outputs Proprietary Top Accessory Port for Monitoring and Control
Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Monitor Options DSMC3 RED® Touch 7.0” LCD
RED® Compact EVF with DSMC3 Adapter A
IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet
Integrated 2.4″ LCD for camera control (no preview video)
Additional I/O Tri-Level Genlock via BNC
Linear Timecode (LTC) through 5-Pin 0B
PTP and remote camera access via 9-Pin 0B GIG-E
RCP2 Camera Control via 4-Pin 00B CTR
Wireless Genlock and Timecode via integrated Ambient Communication Network (ACN)
Software
RED CONTROL & RED CONTROL PRO Access full camera controls and live preview from iOS or Android devices.
Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to
FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and
live events, all from one central location.
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB-C
Dual voltage battery support offers compatibility with a wide range of common batteries found on set today, both 14 V batteries and high voltage 26 V V-Lock or Gold Mount options.
Built-in electronic ND allows cinematographers to precisely select their density in ¼, 1/3, and full stop increments, providing never before seen exposure and depth of field control inside a cinema camera of this level.
12 V and 24 V auxiliary power outputs allows camera assistants to power all the peripherals needed to do their job from one centralized place.
Front facing 3G-SDI and 2-Pin 12 V power, as well as compatibility with the DSMC3™ RED Touch 7.0” LCD, supports any camera operators viewing preference.
Wireless timecode, genlock, and camera control, as well as four SDI outputs support the DIT, giving them access to everything they need at their cart.
Improved in-camera audio performance for run and gun single system audio setups.
