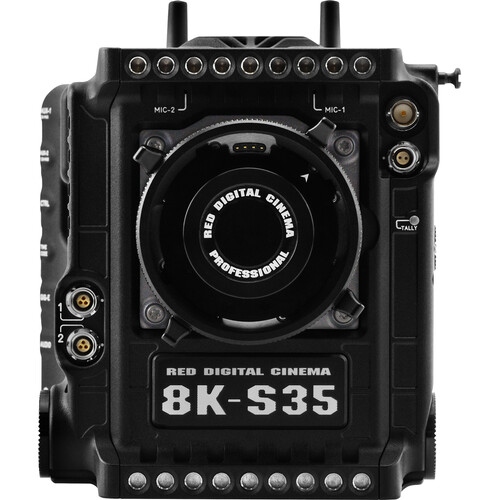

RED V-RAPTOR XL 8K S35 Production Pack (V-Lock)

OVERVIEW
The V-RAPTOR XL 8K S35 camera is the latest addition to the powerful and advanced RED camera platform. It comes with the multi-format 8K W + 6K S35 sensor or the all-new 8K S35, providing the convenience and lens selection of the Super35mm format with the flexibility of 8K acquisition. The all-in-one body of the camera measures 8.5″ x 6.5″ x 6″ and weighs only 8lbs with a PL Mount.

One of the standout features of the V-RAPTOR XL is its electronic ND system, which allows for precise exposure control down to 1/4 stop increments. This gives cinematographers and camera shaders unprecedented control over their exposure and depth of field. The camera also has an interchangeable lens mount, providing even more flexibility for different shooting scenarios.

The V-RAPTOR XL is designed to support high-end television, natural history, broadcast, and motion picture productions, as well as any filmmaker looking for an all-in-one solution. It is a dual voltage camera system, supporting both low voltage 14V batteries and high voltage batteries in both V-Lock and Gold Mount options. This makes it a versatile choice for any production.

The camera also features an array of high-performance 12V and 24V outputs, allowing camera assistants to power all the peripherals they need from one centralized place. It has front facing 3G-SDI and 2-Pin 12V power, as well as compatibility with the DSMC3 RED Touch 7.0” LCD, catering to different camera operators’ viewing preferences. The V-RAPTOR XL also supports wireless timecode, genlock, and camera control, as well as four SDI outputs, providing easy access to everything a DIT or camera shader needs at their cart or truck.

In addition, the V-RAPTOR XL comes with a built-in Ambient Lockit module capable of wirelessly syncing timecode and genlock. This feature, along with the electronic ND system, makes the V-RAPTOR XL a perfect choice for on-set productions.

The V-RAPTOR XL and the DSMC3 platform also offer advanced connectivity solutions, such as RED Connect for 8K R3D cinematic live streaming and remote record, remote control and monitoring, in-camera Frame.io integration, AWS direct upload, and more. This makes the V-RAPTOR XL a versatile and future-proof camera for any production.

At the heart of the V-RAPTOR XL is the same 8K S35 sensor found in the V-RAPTOR 8K S35. This format is ideal for projects that require both Super35mm lensing and 8K acquisition. It allows for the use of lightweight zooms or vintage primes while still capturing at 8K 120P for stunning high-resolution slow motion. The V-RAPTOR sensor scan time is also 2x faster than any previous RED camera, and it can capture up to 600fps at 2K. The V-RAPTOR XL also supports REDCODE RAW codec, allowing for 16-bit RAW capture and leveraging RED’s latest IPP2 workflow and colour management.

SUMMARY
Dynamic Range: 16.5+ stops
Lens Mount: Inter-Changeable Mount
Recording Formats: REDCODE RAW
Internal ND: Yes
Audio Inputs: Internal Mic
Battery Mount / Type: V-Lock
Media Type: CFexpress
Resolution and Frame Rate: 8192 x 4320
Sensor: V- RAPTOR 8K S35 35.4 Megapixel CMOS
Video Outputs: 3x 12G SDI
Weight: 2-5kg
Wi-Fi: Yes
INCLUDED IN BOX
1x V-RAPTOR XL 8K S35 Camera System (VLock)
2x RED PRO CFexpress 2TB
1x RED CFexpress Card Reader
4x REDVOLT XL-V
1x RED Compact Dual V-Lock Charger
1x DSMC3 RED Touch 7.0″ LCD
1x -RAPTOR XL Riser Plate
1x V-RAPTOR Top Handle
1x V-RAPTOR Top Handle Extensions
1x DSMC3 RED 5-Pin to Dual XLR Adapter
1x V-RAPTOR XL Top 15mm LWS Rod Support Bracket
1x V-RAPTOR XL Bottom 15mm LWS Rod Support Bracket
1x DSMC3 RMI Cable 18”
1x DSMC3 RED Touch 7.0″ LCD Hood

About The RED V-RAPTOR XL 8K S35 Production Pack (V-Lock)
SAME AMAZING IMAGE, ENCHANCED ON-SET EXPERIENCE

V-RAPTOR XL 8K S35 expands upon the most powerful and advanced RED camera platform ever. Using RED’s newest 8K S35 sensor, V-RAPTOR XL leverages the convenience and lens selection of the Super35mm format, with the benefits and flexibility of 8K acquisition, all inside of a large-scale-production ready XL camera body.

V-RAPTOR XL is designed to support high-end television, natural history, broadcast, and motion picture productions as well as any filmmaker who requires an all-in-one solution.

TOOLS OF THE TRADE

V-RAPTOR XL is a dual voltage camera system, supporting both low voltage 14V batteries as well as high voltage batteries in both V-Lock and Gold Mount options. V-RAPTOR XL features the most flexible power ecosystem available in the market today.

12V and 24V auxiliary power outputs support the camera assistants, allowing them to power all the peripherals needed to do their job well, from one centralized place.
Front facing 3G-SDI and 2-Pin 12V power, as well as compatibility with the DSMC3 RED Touch 7.0” LCD, supports any camera operators viewing preference.
Wireless timecode, genlock, and camera control, as well as four SDI outputs support the DIT or camera shader, giving them access to everything they need at their cart or truck.
Built-in electronic ND allows cinematographers or camera shaders to precisely select their density in up to 1/4 stop increments, providing never before seen exposure and depth of field control inside a cinema camera of this level.

Additionally, the V-RAPTOR/V-RAPTOR XL and the DSMC3 platform features advanced connectivity solutions which enable applications such as RED Connect for 8K R3D cinematic live streaming and remote record, remote control and monitoring, in-camera Frame.io integration, AWS direct upload, and more.

V-RAPTOR 8K S35 SENSOR INSIDE

Featuring the same 8K S35 sensor found inside the V-RAPTOR 8K S35, this format is ideal for any project where both Super35mm lensing and 8K acquisition is required. Leverage lightweight zooms or vintage primes while still capturing at 8K 120P for stunning high resolution slow motion. In addition, the V-RAPTOR sensor scan time is 2x faster than any previous RED camera and it allows users to capture up to 600 fps at 2K. V-RAPTOR XL will also continue to feature RED’s proprietary REDCODE RAW codec, allowing users to capture 16-bit RAW, and leverage RED’s latest IPP2 workflow and color management.

SENSOR SPECS
SENSOR V-RAPTOR 8K S35 35.4 Megapixel CMOS
EFFECTIVE PIXELS 8192 (h) x 4320 (v)
SENSOR SIZE 26.21 mm x 13.82 mm (Diagonal: 29.63 mm)
DYNAMIC RANGE 16.5 + stops
KEY FEATURES:
BUILT-IN ND Motorized clear filter and precision controlled electronic ND filter
Electronic ND minimum density 2 stops, maximum density 7 stops
Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop
MOUNT TYPE Interchangeable Lens Mount
Included V-RAPTOR XL PL Mount with /i Support
Supports V-RAPTOR XL Locking Canon EF Mount
Accepts DSMC Lens Mounts, but does not provide electronic communication or control.
BATTERY TYPE Integrated Dual Voltage 14/26V V-Lock or Gold Mount Battery Interface
RECORDING
MAX DATA RATES Up to 800 MB/s using RED branded or other qualified CFexpress media cards(1)
REDCODE RAW MAX FRAME RATES 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
PLAYBACK FRAME RATES (PROJECT TIME BASE) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE SETTINGS REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODE RAW ACQUISITION FORMATS 8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9
1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
Apple ProRes Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT.
4K (4096 x 2160) and 2K (2048 x 1080) up to 120 fps
Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) 60 fps
GENERAL
CONSTRUCTION Alluminium Alloy
WEIGHT 7.99lbs (with PL Mount, V-Lock)
DC POWER INPUT 19.5-34 V via 4-Pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE -20°C to 50° C (-4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing
FEATURES
COLOUR MANAGEMENT Image Processing Pipeline 2 (IPP2)
Supports multiple simultaneous 33x33x33 3D LUT viewing
Supports multiple simultaneous CDL viewing and adjustment
AUDIO Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-Pin Audio Port, uncompressed, 24-bit 48 kHz
AUTOFOCUS Phase Detect and Contrast
REMOTE CONTROL Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz)
antenna mounted to a female RP-SMA connector
Wired control via USB-C (compatible USB-C to Ethernet adapter1 required)
or Gigabit Ethernet allowing remote camera control, live MJPEG preview video feed and remote media offload
9-Pin 0B GIG-E (1000BASE-T)
4-Pin 00B CTRL (RS-232)
Compatible with RED Control and RED Control Pro
POWER OUTPUTS Regulated 12 V Outputs(2)
2x P-TAP Connectors (3AMP Combined)
1x Rear 2-Pin 0B (3 AMP)
1x Rear 2-Pin 0B (1.5 AMP)
1x Front 2-Pin 0B (1 AMP)
Regulated 24 V Connectors
2x Front 3-Pin Fischer (3 AMP Combined)
MONITOR OUTPUTS Proprietary top accessory port for monitoring and control
3x 12G-SDI with 6G-SDI, 3G-SDI and 1.5G- SDI modes (SDI 1/2/3)
1x 3G-SDI with 3G-SDI and 1.5G-SDI modes (EVF)
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS DSMC3 RED Touch 7.0” LCD
IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet(1)
Integrated 2.4” LCD for camera control (no preview video)
CAMERA SYNC OPTIONS Tri-Level Genlock through BNC
Linear Timecode (LTC) through 5-Pin 0B
PTP through 9-Pin 0B GIG-E
Wireless Genlock and Timecode through Integrated Ambient Communication Network (ACN)
SOFTWARE
RED CONTROL AND RED CONTROL PRO Access full camera controls and live preview from iOS or Android devices.
Pro App:Operate one or multiple V- RAPTOR’s over an IP connection to synchronize settings
manage media files locally or upload directly to FrameIO, develop custom looks with advanced
CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots
and live events, all from one central location.
Standard app available from the Apple App Store and Google Play Store.
RED Control Pro available via Apple App store only and requires additional purchase.
RED Control works wirelessly or wired via USB-C
Tech specs reflect both current and projected information. Everything is subject to change.
(1) For more information on compatible accessories
go to RED.com/third-party-accessories 2. High voltage power source required.

Available with the multi-format 8K W + 6K S35 sensor or all-new 8K S35.
All-in-one body measuring 8.5″ x 6.5″ x 6″ and weighing 8lbs with PL Mount
Electronic ND system for precise exposure control down to ¼ stop increments
Interchangeable lens mount
Compatibility with either 26 V-Lock or Gold Mount batteries with an array of high-performance 12V and 24V outputs
Includes a built in Ambient Lockit module capable of wirelessly syncing Timecode and Genlock
