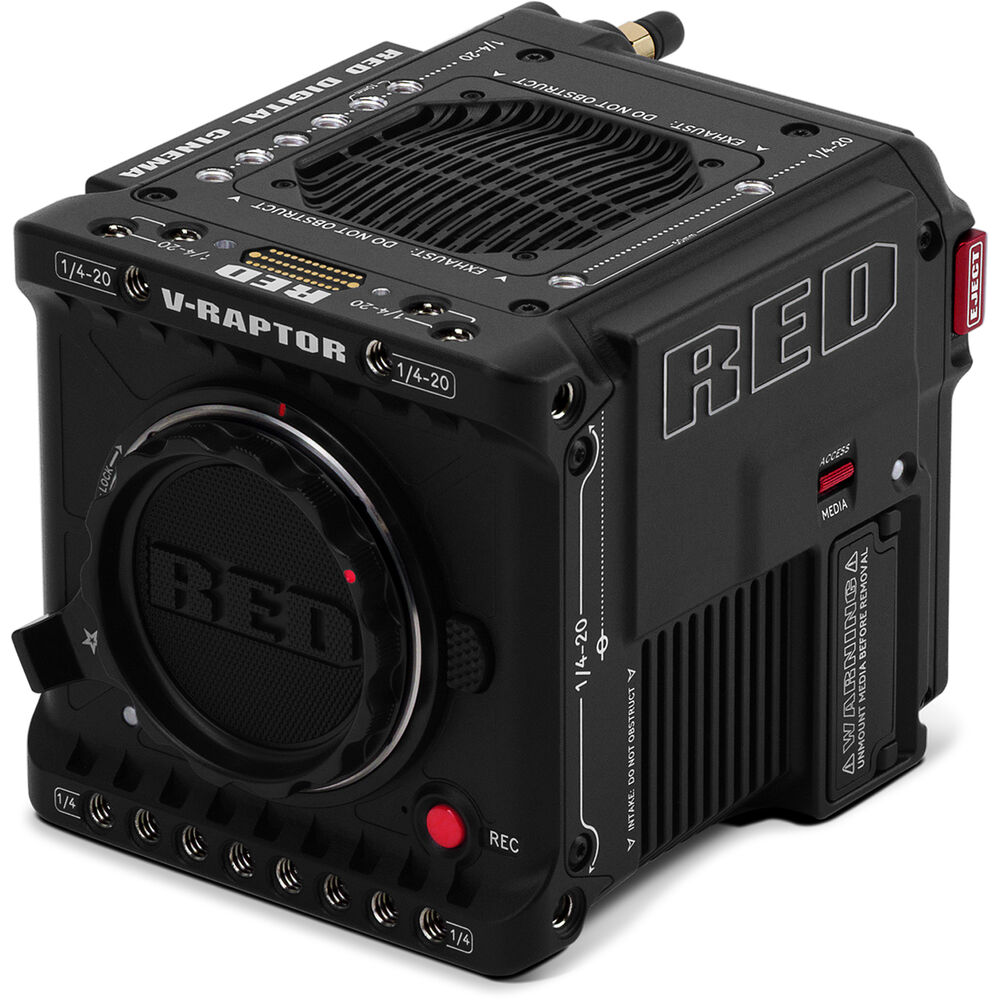

RED V-RAPTOR 8K VV

OVERVIEW
V-RAPTOR 8K VV is the most powerful and versatile RED cinema camera ever. As the brands new flagship system and sensor, as well as the first entrant into the new DSMC3 generation of cameras, V-RAPTOR stands alone at the forefront of digital image capture technology.

This highly anticipated DSMC3 camera is built on a newly integrated and modernized form factor while featuring a robust professional I/O array that includes two 4K 12G-SDI outputs, XLR audio with phantom power capability via adapter, and built-in USB-C interface allowing for remote control, ethernet offload, and more. All features are packaged in a compact, rugged, water, and dust resistant design that measures 6 x 4.25 inches and just over 4 pounds.

V-RAPTOR features a multi-format 8K sensor (40.96mm x 21.60mm) with the ability to shoot 8K large format or 6K Super 35. This unique in-camera option for impactful visual storytelling allows shooters to leverage any of their large format or S35 lenses with the push of a button and always deliver at over 4K resolution.

The V-RAPTOR far exceeds previous sensor capabilities, presenting users with the option to capture 8K full sensor at up to 120 frames per second (150fps at 2.4:1), 6K up to 160 fps (200fps at 2.4:1), and 2K (2.4:1) at an incredible 600 frames per second, while still capturing over 17 stops of dynamic range. The updated and streamlined REDCODE RAW settings (HQ, MQ and LQ) enhance the user experience with simplified format choices optimized for various shooting scenarios and needs.

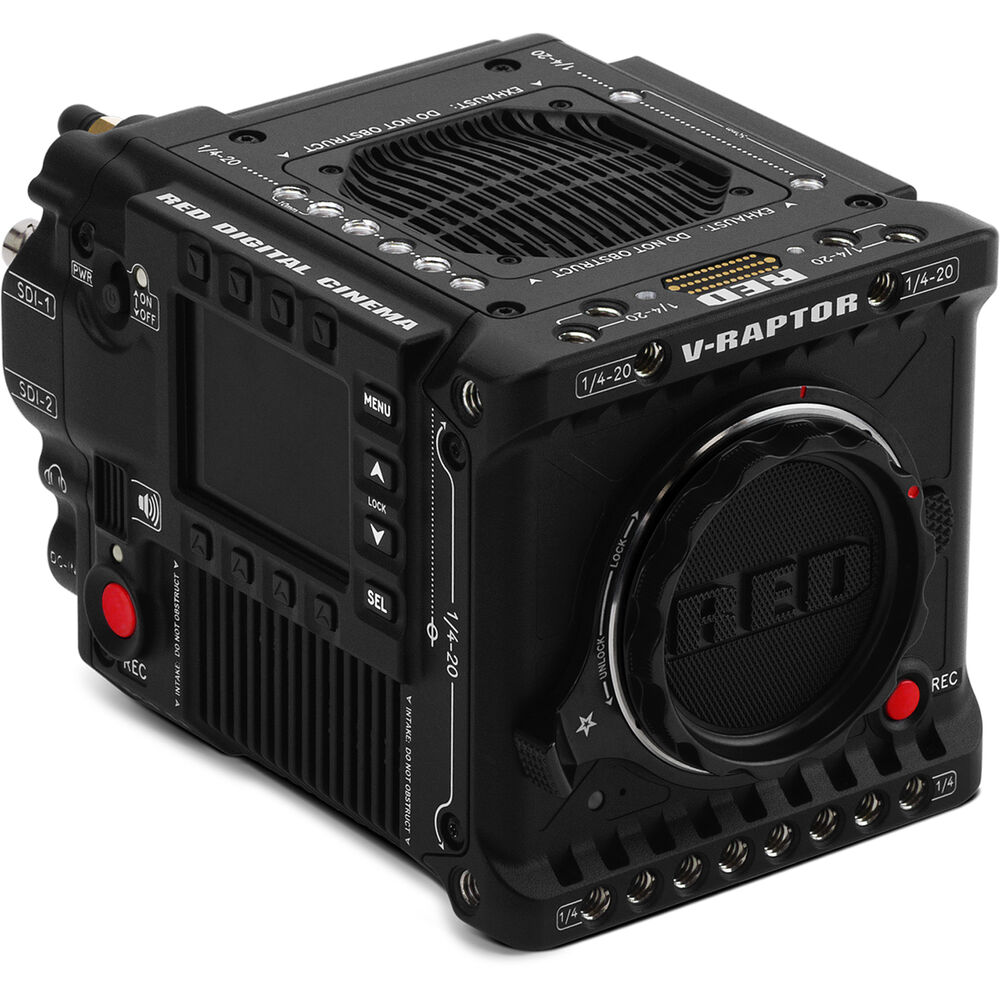

Other highlights of the V-RAPTOR include an RF lens mount with locking mechanism; wireless control and preview via Wi-Fi; phase detection autofocus; and a newly designed and easy-to-navigate integrated display, located on the side of the camera, which allows for comprehensive controls, including in-camera format selection, customized buttons, status updates, and more.

Additional features include data rates up to 800 MB/s using RED branded or other qualified CFexpress media cards; integrated micro v-mount battery plate; a 60mm fan for quieter and more stable heat management; and wireless connectivity via the free RED Control app, which is available now for iOS and Android devices.

SUMMARY
Dynamic Range: 17+ stops
Native ISO: ISO 800
Lens Mount: Canon RF
Recording Formats: REDCODE RAW
Internal ND: No
Audio Inputs: 1 x 5-pin XLR – Mic/Line Input
Shutter: Rolling (Electronic)
Battery Mount / Type: V-Lock
Media Type: CFexpress
Resolution and Frame Rate: 480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
Sensor: CMOS
Video Outputs: 1 x 12G-SDI
Weight: 0-2kg
Wi-Fi: Yes
INCLUDED IN BOX
1x V-RAPTOR ST 8K VV Body
1x DSMC AC Power Adaptor Pack 150W
1x RED Logo Sticker
1x V-RAPTOR Information Card (incl. registration and support info)
2 Year Standard Warranty

About The RED V-RAPTOR 8K VV
Please Note: Full size Vlok batteries are NOT compatible with this product

For Compatible CFexpress Media – Please Click Here

For Compatible Batteries – Please Click Here

For Compatible RF & EF Lenses – Please Click Here

For Compatible 5-Pin 0B ODU Port Accessories – Please Click Here

V-RAPTOR 8K VV is the most powerful and versatile RED cinema camera ever. As the brands new flagship system and sensor, as well as the first entrant into the new DSMC3 generation of cameras, V-RAPTOR stands alone at the forefront of the digital image capture technology. RED’s most recent camera utilises the updated and streamlined REDCODE RAW settings (HQ, MQ and LQ) to enhance the user experience with simplified format choices optimised for various shooting scenarios and needs.

V-RAPTOR features a multi-format 8K sensor (40.96mm x 21.60mm) with the ability to shoot 8K large format or 6K Super 35. Joining its predecessor, the MONSTRO 8K VV sensor, this unique in-camera option for impactful visual storytelling allows shooters to leverage any of their large format or S35 lenses with the push of a button and always deliver at over 4K resolution. The V-RAPTOR far exceeds previous sensor capabilities, presenting users with the option to capture 8K full sensor at up to 120 frames per second (150fps at 2.4:1), 6K up to 160 fps (200fps at 2.4:1), and 2K (2.4:1) at an incredible 600 frames per second, while still capturing over 17 stops of dynamic range.

This highly anticipated DSMC3 camera is built on a newly integrated and modernised form factor while featuring a robust professional I/O array that includes two 4K 12G-SDI outputs, XLR audio with phantom power capability via adapter, and built-in USB-C interface allowing for remote control, ethernet offload, and more. All features are packaged in a compact, rugged, water, and dust resistant design that measures 6 x 4.25 inches and just over 4 pounds. Other highlights include an RF lens mount with locking mechanism; wireless control and preview via Wi-Fi; phase detection autofocus; and a newly designed and easy-to-navigate integrated display, located on the side of the camera, which allows for comprehensive controls, including in-camera format selection, customised buttons, status updates, and more.

Additional features include data rates up to 800 MB/s using RED branded or other qualified CFexpress media cards; integrated micro v-mount battery plate; a 60mm fan for quieter and more stable heat management; and wireless connectivity via the free RED Control app, which is available now for iOS and Android devices.

SENSOR SPECS:
SENSOR V-RAPTOR 8K VV 35.4 Megapixel CMOS
EFFECTIVE PIXELS 8192 (h) x 4320 (v)
SENSOR SIZE 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)
DYNAMIC RANGE 17+ stops
LENS MOUNT:

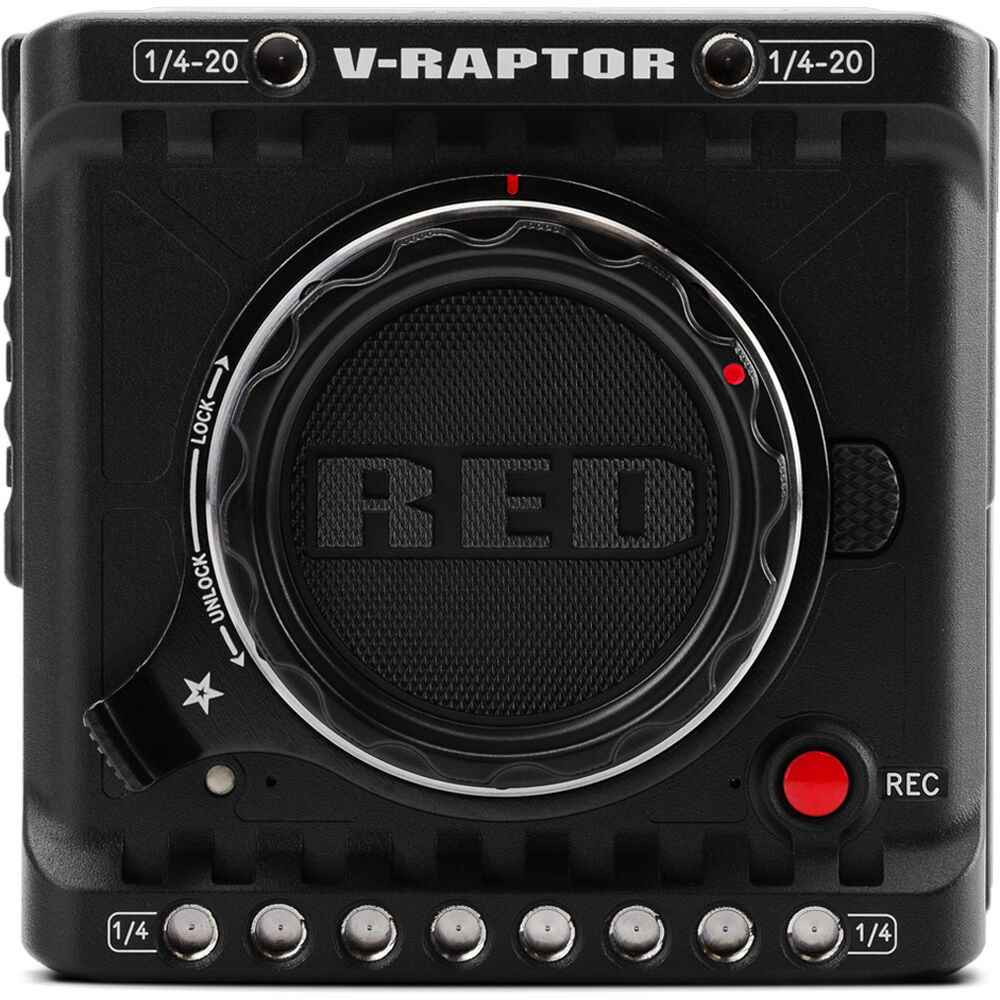

MOUNT TYPE Integrated RF mount with RF lens support
Supports Canon EF lenses via compatible Canon RF to EF mount adapters
Accepts other Canon RF mount-based lens adaptors for diverse lens choices
RECORDING:
MAX DATA RATES Up to 800 MB/s using RED branded or other qualified CFexpress media cards1
REDCODE RAW:
MAX FRAME RATES 120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)
480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)
PLAYBACK FRAME RATES:
(PROJECT TIME BASE) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
BEST AVAILABLE REDCODE SETTINGS REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps
REDCODERAW:
ACQUISITION FORMATS 8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1
GENERAL:
CONSTRUCTION Aluminium Alloy
WEIGHT 4.03 lbs (without body cap and CFexpress card)
BATTERY TYPE Integrated V-Lock battery interface optimized for Micro V-Lock Batteries1
DC POWER INPUT 11-17V via 6-pin DC-IN
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE -20°C to 50° C (-4°F to 122°F)
STORAGE RELATIVE HUMIDITY 0% to 85% non-condensing
FEATURES:
COLOUR MANAGEMENT Image Processing Pipeline (IPP2)
Supports 33x33x33 3D LUTs
Supports import of CDLs
AUDIO Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24- bit 48 kHz
REMOTE CONTROL Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload
MONITOR OUTPUTS Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G- SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS DSMC3 RED Touch 7.0” LCD
Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
Integrated 2.4” LCD for camera control (no preview video)
SOFTWARE:
RED CONTROL Access full camera controls and live preview from iOS or Android devices.
Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C
