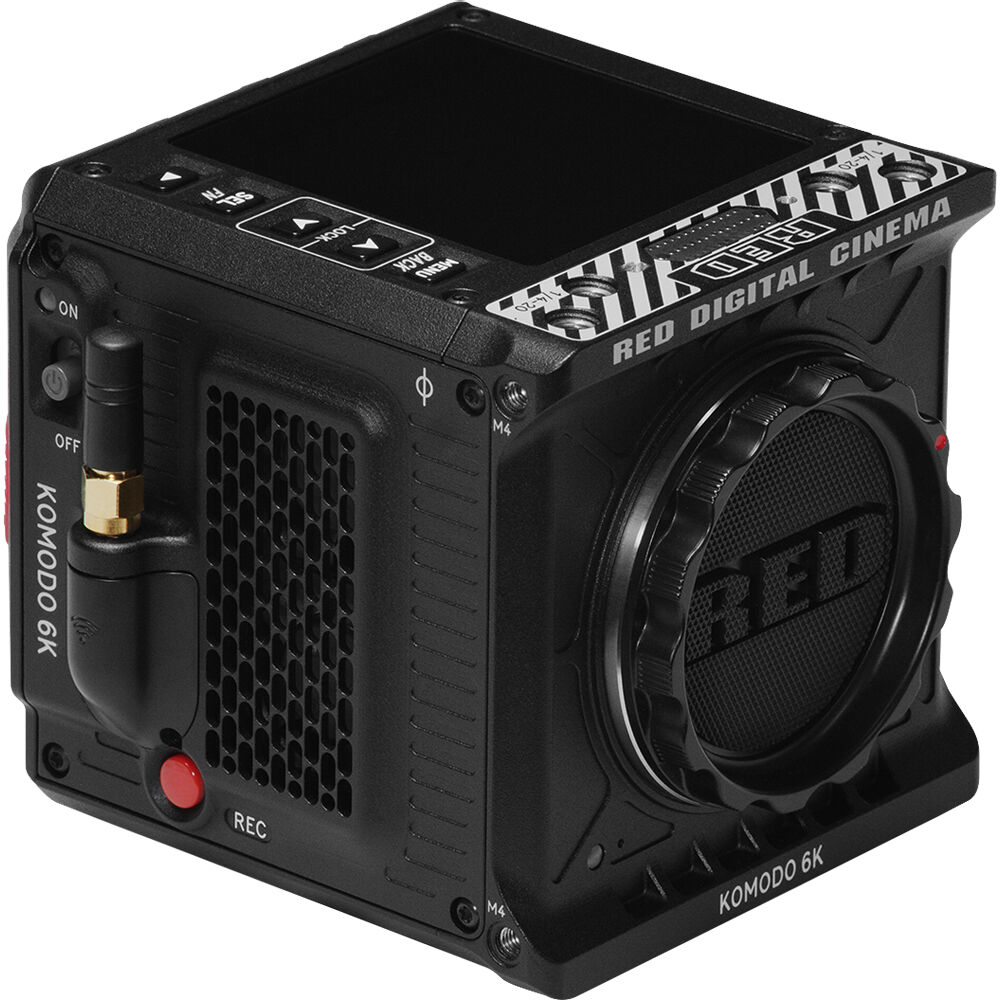

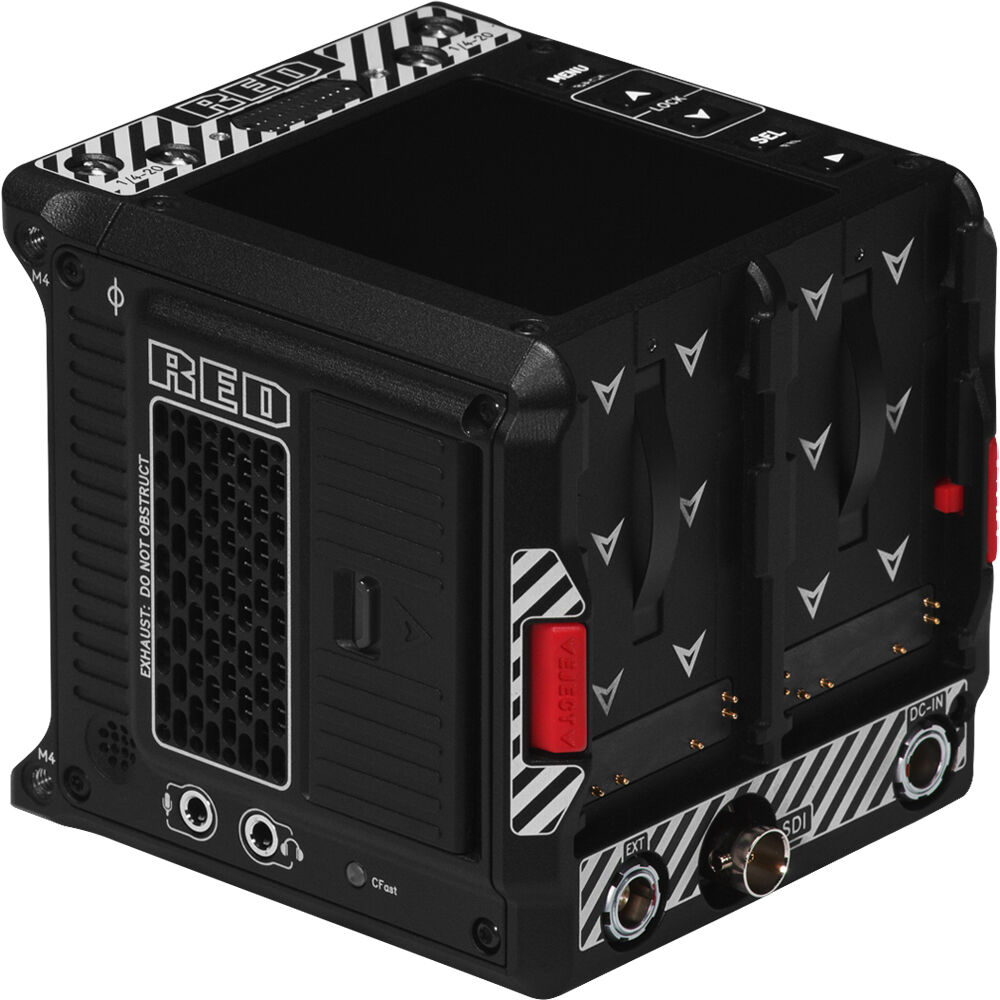

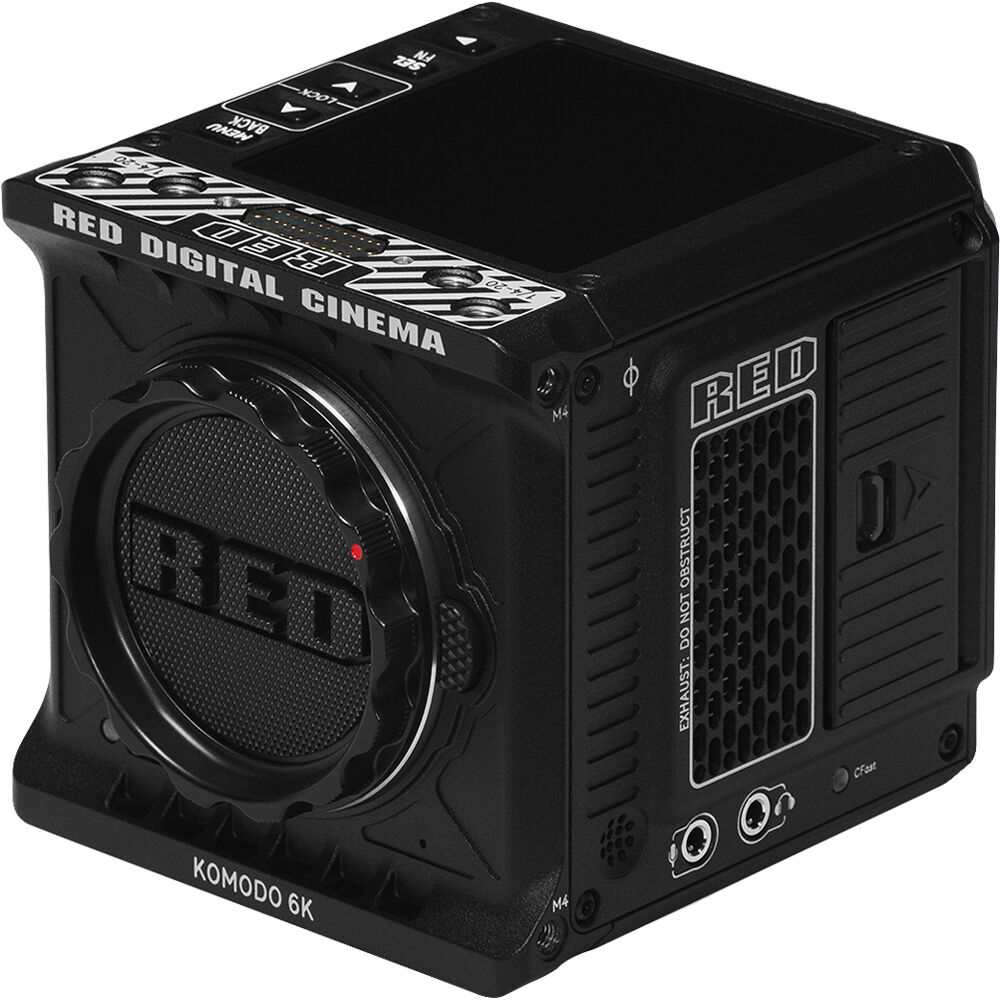

RED KOMODO 6K

OVERVIEW
KOMODO 6K is the latest breakthrough product in REDs long line of innovative image capture technology. The newest entrant into the RED lineup is a compact and highly powerful cinema camera.

Featuring a 6K S35 global shutter sensor, KOMODO breaks new technical ground by eliminating the need to sacrifice dynamic range while meeting the RED standard of unmatched imagery without any creative or technical compromises.

KOMODO also boasts a versatile RF mount, allowing users to utilize adapters for EF, PL, and other lens systems. Its form-factor is small and versatile, measuring at 4″x4″ and weighing under 2.1 lbs.

With REDCODE RAW and 4K monitoring capabilities, KOMODO offers cinematic colour science with IPP2, making it the ultimate choice for cine shooting.

But what sets KOMODO apart is its ability to capture every moment, burst, and flash with its global shutter, without sacrificing image quality or dynamic range. Its 6K resolution and lightweight design make it perfect for on-the-go content creators and major film productions alike.

Experience the freedom to roam and capture impossible shots with KOMODO 6K. Upgrade your filming game with REDs latest innovation.

SUMMARY
Dynamic Range: 16+ Stops
Native ISO: ISO 800
Lens Mount: Canon RF
Recording Formats: R3D RAW
Internal ND: No
Audio Inputs: 1 x 3.5mm
Shutter: Global
Battery Mount / Type: Canon BP-9XX Series
Media Type: CFast 2.0
Resolution and Frame Rate: 6144×3240 @ 40fps Max
Sensor: Super 35
Video Outputs: 1 x BNC 12G/6G/3G Out
Weight: 0-2kg
Wi-Fi: Yes
INCLUDED IN BOX
1x KOMODO 6K Camera Body
1x KOMODO 45W AC Power Adapter
1x Mini World Travel Adapter Kit
1x RED Logo Sticker
1x Quick Start Guide
1x Canon RF to EF Mechanical Adapter
1x Year Standard Manufacturer’s Warranty (Optional extended warranty can be purchased on code: 780-0044)

About The RED KOMODO 6K
Description

*Lease Note: Firmware Update 1.6.4 details, for more details please click here*

KOMODO 6K is the latest breakthrough product in RED’s long line of innovative image capture technology. The newest entrant into the RED lineup is a compact and highly powerful cinema camera. It features RED’s cinema-grade image quality, colour science, and sensor technology into a shockingly small form factor so that users can take it anywhere and adapt it to any shooting scenario.

The new sensor in KOMODO is a 6K S35 global shutter sensor that breaks new technical ground by eliminating the need to sacrifice dynamic range while meeting the RED standard of unmatched imagery without any creative or technical compromises.

KOMODO also features a built-in Canon RF-style mount, allowing users the flexibility to use numerous different lens adapters, such as Canon EF, PL and Leica M mount. The built-in RF mount allows you to adapt to numerous different lens adapters, such as Canon EF, PL and Leica M mount, providing ultimate flexibility to achieve the look of your choosing. KOMODO also has a DC IN power port and can also be powered using two Canon BP style batteries.

Whether you are working on a major film production with multiple cameras, or you are an on-the-go content creator, KOMODO will fit the need for your job.

Global Shutter

Capture every moment, burst, and flash without sacrificing and ounce of dynamic range or overall image quality.

Movement: Capture fast-moving action like it’s meant to be captured. No blurred or curved lines- just perfect pixels in every shot.

Dynamic Range: KOMODO stays true to RED’s reputation and heritage of unrivaled dynamic range. Capture every detail from the most cinematic shots.

Flash: The KOMODO 6K sensor isn’t phased by quick bursts of light like strobes or lightning. So users never have to compromise getting the shot they want.

VFX: No rolling shutter artifacts means less time fixing footage for camera tracking and match-move. Saving valuable time and money in post-production and VFX.

Resolution

Shooting on a bigger canvas allows creators to unlock more creative flexibility with benefits such as stabilisation, reframing, and more.

REDCODE

The latest evolution of REDCODE is optimised for KOMODO. Allowing users to continue unlocking unbelievable image capture potential and creative flexibility with a new simplified user experience.

KOMODO REDCODE settings and applications:

HQ – VFX, extreme-detail scenes, and stills from motion [Data Rate* (512GB card)*: ~30 mins rec time]

MQ – Cinema (non-VFX) and high-end TV [Data Rate* (512GB card)*: ~48 mins rec time]

LQ – TV, online content, documentary, interviews, and long takes [Data Rate* (512GB card)*: ~1:17mins rec time]

* Data rate assumes camera settings at 6K 17:9, 23.98 fps shooting. Actual data rate will depend on complexity of the shooting scene and capture settings.

Form Factor

KOMODO is smaller and more versatile than any comparable cinema camera in the industry. Allowing you to get shots you never thought possible.

Go Anywhere. Capture Any Shot. Freedom To Roam.

Impossible Shots Made Possible.

4K Output

Whether on set or online, take advantage of live 4K monitoring output to review content or stream.

Versatile Lens Mount

KOMODO’s RF-style mount provides tremendous flexibility and compatibility with a wide array of EF and PL lenses and the ability to leverage adapters with internal ND filters.

HIgh-Resolution Touch Screen

Easily preview content and navigate menus. Media: CFAST 2.0 media allows users to use a widely accessible, standardised, and reliable media source.

Batteries

KOMODO uses either Canon BP955 (4900mAh) or BP975 (730mAh), allowing users to choose an industry standard and widely relied-upon power source.

Specifications

SENSOR SPECS
Sensor KOMODO™ 19.9 MP Super 35mm Global Shutter CMOS
Effective Pixels 6144 (h) x 3240 (v)
Sensor Size 27.03 mm x 14.26 mm (Diagonal 30.56 mm)
Dynamic Range 16+ stops
LENS MOUNT
Mount Type RF mount

Accepts Canon RF mount-based lens adapters for diverse lens choices

Supports Canon EF with full electronic communication via compatible Canon RF mount adapters, and supports mechanically operated RF lenses (electronic control of Canon RF lenses not supported at this time)
RECORDING
Max Data Rates Up to 280 MB/s using RED Pro CFast and qualified CFast 2.0 memory cards
REDCODE® RAW Max Frame Rates 40 fps at 6K 17:9 (6144 x 3240)
50 fps at 6K 2.4:1 (6144 x 2592)
48 fps at 5K 17:9 (5120 x 2700)
60 fps at 4K 17:9 (4096 x 2160)
120 fps at 2K 17:9 (2048 x 1080)
Playback Frame Rates (Project Time Base) 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions
Best Available REDCODE® Settings REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 40 fps
REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 60 fps
REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 120 fps
REDCODE® RAW Acquisition Formats 6K 17:9 (6144 x 3240) 2:4:1 and 16:9
5K 17:9 (5120 x 2700)
4K 17:9 (4096 x 2160)
2K 17:9 (2048 x 1080)
Apple Prores 4K (4096 x 2160) at ProRes 422 HQ and ProRes 422 up to 60 fps
2K (2048 x 1080) at ProRes 422 HQ and ProRes 422 up to 120 fps
GENERAL
Construction Aluminium Alloy
Weight 2.10 lbs (without body cap and CFast card)
Battery Type Two slots for Canon BP-9XX series batteries
DC Power Input +7 to +17 V DC via the integrated 2-pin DC-IN port
Operating Temperature 0°C to 40° C (32°F to 104°F)
Storage Temperature -20°C to 50° C (-4°F to 122°F)
Storage Relative Humidity 0% to 85% non-condensing
FEATURES
Colour Management Image Processing Pipeline (IPP2)
Supports 33x33x33 3D LUTs
Supports import of CDLs
Audio Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
Additional dual channel via integrated 3.5mm audio jack, uncompressed, 24-bit 48 kHz
Remote Control WiFi for camera control via interchangeable antenna with SMA connection
Genlock, Timecode-in, GPIO and Ctrl (RS232) via the integrated 9-pin EXT port
Wired control via KOMODO Link Adapter, using USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing camera control and live MJPEG preview video feed
Monitor Outputs Integrated 12G-SDI with 6G-SDI and 3G-SDI modes
12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
6G-SDI: Up to 4096 x 2160 4:2:2 for 30p
3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 24p
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
Monitor Options Integrated 2.9” 1440×1440 touchscreen LCD with preview and camera control
Wireless live preview video feed via 2.4Ghz/5Ghz WiFi for framing
SOFTWARE
RED Control Access full camera controls and live preview from iOS or Android devices.Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via the KOMODO Link Adapter (sold separeately).
NOTE Tech specs reflect both current and projected information. Everything is subject to change.

Global Shutter without sacrificing image quality or dynamic range
6K resolution
S35 sensor (27.03mm x 14.26mm)
Full sensor 6K 40 fps, 6K WS @50 fps, 4K @60 fps
Versatile RF mount with ability to utilise adapters for EF, PL and other lens systems
Form-factor: small & versatile (4”x4”; under 2.1 lbs)
REDCODE RAW, now simplified with quality levels
4K monitoring out
Cinematic colour science with IPP2
