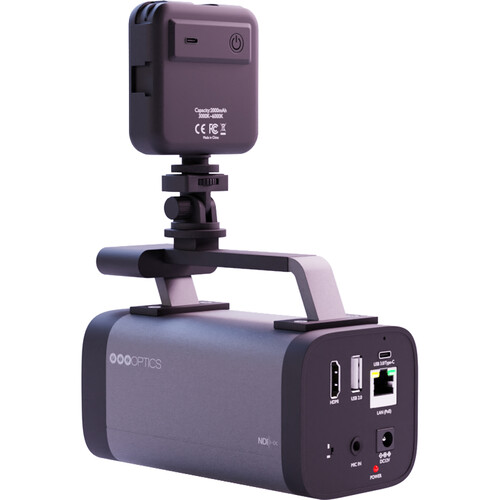

PTZ Optics Studio Pro Camera

Overview
The Studio Pro is a top-of-the-line USB interface that offers advanced focus features, a 1080p@60fps HD image, and a built-in cold shoe mount for lighting and other accessories. With a wide angle lens, portrait and landscape modes, and multiple power supply options, this camera allows users to create content in their own unique way.

Not only does the Studio Pro offer versatile output options with HDMI, USB, and IP capabilities, but it also comes with an IR remote and a premium lighting solution. Additionally, with a 5-year limited warranty, PTZOptics stands by their promise to provide high performance and protection for your investment. With the Studio Pro, users can confidently create and livestream content that will engage and connect with their audiences.

Summary
Lens Zoom: 12x Optical Zoom
Sensor: CMOS
Video Outputs: HDMI
Weight: 0-2kg
Included in box
Camera
Power Supply
IR Remote
2 AAA Batteries
USB-A to USB-C Screw Locking Cable
LED Panel Light

About the PTZ Optics Studio Pro Camera
Create Content Your Way

The Studio Pro is an all-in-one content creation and livestreaming solution featuring 12X optical zoom, 72.5° FoV, a portrait and landscape toggle switch, empowering users to connect with their audiences however they watch. The camera’s time-of-flight sensor gives the camera quick focus capabilities, while its advanced focus settings allow users to achieve a bokeh effect for a more unique and creative visual experience.

Versatile Output Options

With simultaneous HDMI, USB, and IP output capabilities, the Studio Pro can integrate into even the most complex setups—much more than your typical DSLR can do. The camera comes native with NDI®|HX, so no additional license is needed to access your camera over the network.

All-in-One Solution

The Studio Pro includes an IR remote and a USB-powered premium lighting solution that offers 3000-6000k temperatures—soft white all the way up to crisp daylight. It also features a noise canceling microphone array, as well as a cold shoe. For flexible deployment, the Studio Pro is PoE capable and can also be powered by USB or standard 12VDC power supply.

Unrivaled Warranties

With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.

The Studio Pro comes with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation here.

Image Sensor & Lens
Video Sensor 1/2.8” CMOS, 2.07 Mega Pixel
Resolution 1920x1080p @ 60fps
Lens Zoom 12x Optical, 16x Digital
Horizontal Field of View 6.9⁰ ~ 72.5⁰
Vertical Field of View 3.9⁰ ~ 44.8⁰
Min. Illumination 0.5 Lux
Scanning Mode Progressive
H/V Flip / Image Freeze Supports
Electronic Index
Input Voltage 5V (USB Power), DC 12v, PoE (802.3af)
Power Consumption 6W
Working Environment Indoor
Physical Specifications
Material Plastic
Dimensions L-147 x H-113 x D-77 (mm)
Weight 1.54 lbs
Operating Temperature 32° F ~ 104° F
Storage Temperature -40° F ~ 140°F
Connections
Color System H.264 / H.265 / MJPEG / YUY2
Video Format YUY2 (ISOC), H.264 SVC, MJPEG: Max. 1080p@60fps
USB Video Communication Protocol UVC 1.5
Video Bit Rate 32 ~ 102400
Audio AAC, 96 Kbps, 128 Kbps, 256 Kbps
Protocols TCP/IP, HTTP, RTMP, ONVIF, DHCP, RTSP, NDI, Multicast, SRT

Full Featured USB Interface
Advanced Focus Features, including Time-of-Flight
1080p@60fps HD Image
Built-In Cold Shoe Mount for Lighting, Mics, and More
HDMI 1.4b
72.5° Wide Angle Lens
Portrait and Landscape Modes
3 Power Supply options: USB 5V, DC 12V and PoE
