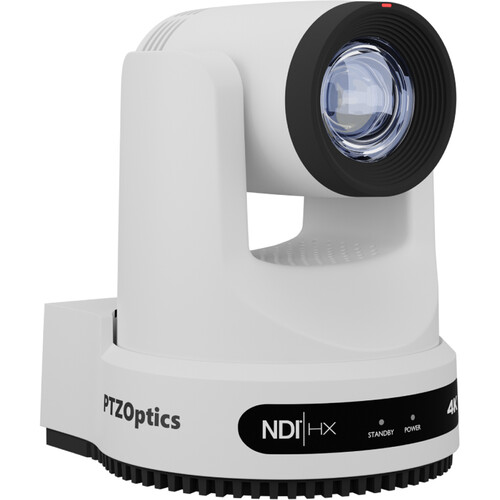

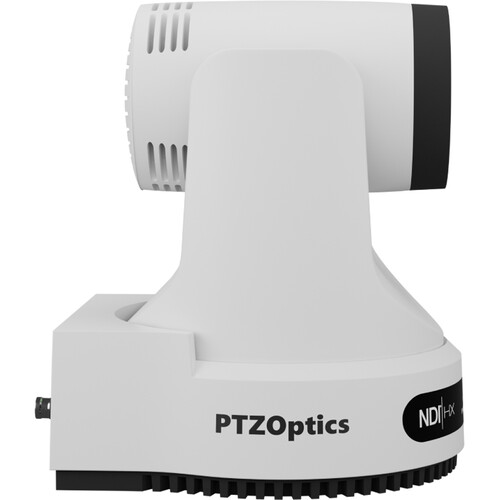

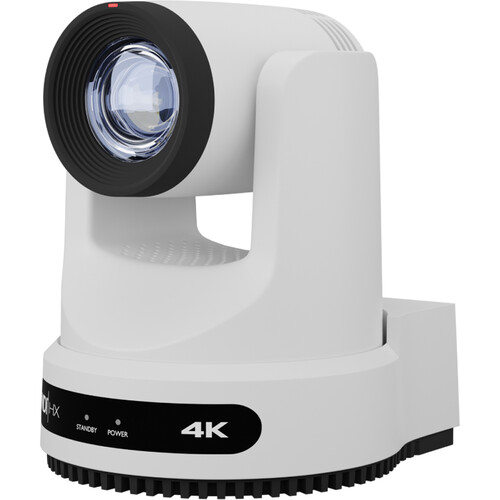

PTZ Optics Move 4K 20X Camera – White

Overview
The PTZOptics Move 4K is a new standard for PTZ cameras, offering advanced features such as built-in auto-tracking, advanced white balance modes, and wide dynamic range. It also boasts impressive full frame rates, including 2160p at 60/50/30/25 and 1080p at 60/50/30/25. The camera also has 3D noise reduction, SRT support, and can integrate with Blackmagic switchers. For broadcast purposes, it offers frame rates of 2160p at 59.94/29.97, 1080p at 59.94/29.97, 1080i at 59.94, and 720p at 59.94. Additionally, the Move 4K comes with a 5-year parts and labor manufacturer warranty.

The Move 4K is designed with the future in mind, with SDI, HDMI, USB, and IP outputs, as well as NDI|HX capabilities. It also has built-in auto-tracking, freeing teams from the need for a camera operator. With various mounting options and the ability to control the camera remotely, the Move 4K offers versatility and ease of use. Users can also take advantage of free software, such as NewBlueFX Titler Live 5 Present, to enhance their presentations and control the camera. With PTZOptics’ commitment to providing high-quality products and warranties, the Move 4K is a reliable and advanced choice for any production needs.

Summary
Focal Length: 6.25mm-125mm
Max Aperture: F1.58
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 4K
Sensor: CMOS
Weight: 0-2kg
Included in box
1x PTZOptics Move 4K Camera – White
1x AC Power Supply
1x USB A-A Cable
1x RS232 Cable
1x Quick Start Guide
1x IR Remote
2x AA Batteries

About the PTZ Optics Move 4K 20X Camera – White
A New Standard for PTZ Cameras

The Move 4K is the latest PTZ camera from PTZOptics, featuring auto-tracking for a more intelligent video production workflow. The Move 4K is capable of 4K at 60fps (1080p at 60fps over SDI), future-proofing your technology investment while still accommodating HD and Full HD video resolutions equipment. The Move 4K offers high performance in low-light scenarios, PoE+ capabilities, and a built-in tally light.

Designed with the Future in Mind

Every Move 4K camera features SDI, HDMI, USB, and IP output, and comes native with NDI|HX for unparalleled performance and versatility. The Move 4K offers built-in auto-tracking capabilities – no need to run software on another computer – freeing teams of the need for a camera operator. With 12x, 20x, and 30x optical zoom available, the Move 4K can fit seamlessly into any production scenario.

Pan, Tilt, Zoom, Track.

Control your production from behind the scenes – or right in front of them. The Move 4K’s auto-tracking can lock into a specific person, even while other people are in frame. Users can switch between on-stage presenters with the click of a button. The Move 4K can track subjects up to 300 feet away.In addition to the Move 4K’s auto-tracking features, users will also have access to our latest Web UI — updated to provide everything you need in one simple menu. Almost every feature in the Web UI has a tutorial function, perfect for novice producers navigating the settings for the first time.

Discreet Mounting Options

Mount your PTZOptics Move 4K camera above, below or beside the action to capture the ideal view every time.

Wall Mounts
Ceiling Mounts
Pole Mounts
Outdoor Enclosures

The new automatic video inversion feature senses the camera’s orientation and saves time on installation and setup.

Take Control Your Way

Users can control Move 4K cameras using video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster — or check out one of PTZOptics hardware joystick controllers such as the IP joystick, serial joystick, or the SuperJoy. The options for camera control are endless, allowing you to take charge of your camera in a way that fits your workflow.

Move 4K cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.

Free Software for PTZOptics Camera Users

Invigorate your meetings and presentations with NewBlueFX Titler Live 5 Present, now free for any PTZOptics customer.

Create stunning graphics and data visualizations in minutes with this easy-to-use software, or use it to control your PTZOptics camera from anywhere on the network. To apply for your free 6-month license or for more information on Titler Live 5 Present, visit ptzoptics.com/newbluefx.

Unrivaled Warranties

With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.

Image Sensor & Lens
Video Sensor 1/1.8 inch, Sony CMOS sensor, effective pixels: 8.42M
Lens f = 6.25mm ~ 125mm, F1.58 ~ F3.95
Lens (35mm Equivalencies) 31mm ~ 589mm, F1.58 ~ F3.95
Resolution and Frame Rate HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p- 60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50, 1280x720p-60/59.94
Digital Zoom Off (3840×2160), 2X (1920×1080), 3X (1280×720), 4X (960×540), 8X (480×270), 16X (256×144)
Field of View Horizontal: 3.5° (tele) ~ 60.7° (wide), Vertical: 1.9° (tele) ~ 34.1° (wide)
Min. Lux 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30s ~ 1/10000s
Pan/Tilt Movement
Pan Speed 1.7° ~ 100°/s
Tilt Movement +90° to -30
Tilt Speed 1.7° ~ 69.9°
Presets 255 Presets
Video Tracking Supported
Image Flip, Mirror and Freeze Supported
Power Options
Power Supply DC 12V / PoE+ (802.3at)
Input Power 18W (Max)
Physical Specifications
Material Aluminium, Plastic
Colour White
Dimensions (W x D x H) 5.57 x 5.94 x 7.91 in., 168.4 x 141.5 x 164.5 mm
Weight 3.25 lbs (1.47 kg)
Working Environment Indoor
Operating Temperature 14°F ~ 104°F (-10°C to 40°C)
Storage Temperature -40°F ~ 140°F (-40°C to 60°C)

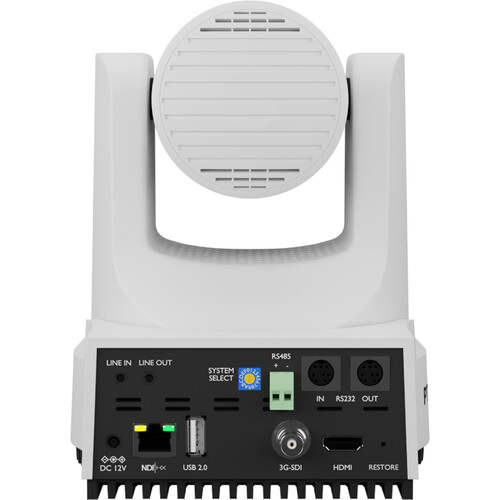

Rear Board Connectors
HD Video Output 1x RJ45: 10/100/1000M Adaptive Ethernet Port424M standard
1x HDMI: version 2.0
1x USB 2.0: type A
1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard
Audio Interface 1x 3.5mm Line level Input
Communication Interface 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
1x 2 pin Phoenix port, RS485 input / output, Max distance 3,937ft / 1200m, protocol: VISCA / Pelco-D / Pelco-P
Network Interface RJ45: 10/100/1000M Adaptive Ethernet Port, supports PoE
Power Jack JEITA type (DC IN 12V)

Built-In Auto-Tracking
Advanced White Balance Modes
Wide Dynamic Range
Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
3D Noise Reduction
SRT Support
Up to 4K Resolution @ 60fps
Blackmagic Switcher Integration
Broadcast Frame Rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94
5 Year Parts & Labor Manufacturer Warranty
