Postium OBM-N240G 24 inch Monitor

Overview
The OBM-N240G is a high-quality monitor with 3G/HD/SD-SDI input and output, HDR display support for PQ EOTF, and a 3D-LUT for accurate color reproduction. It also offers a wide color gamut with 99% DCI-P3 coverage, camera log conversion, and the ability to import custom 3D LUT files. With various monitoring features such as waveform and vectorscope, focus assist, and false color options, this monitor is a versatile tool for any production environment. One of the standout features of the OBM-N240G is its accurate color reproduction with wide color gamut support. It complies with the DCI-P3 color space and offers a variety of camera log options for seamless integration with different cameras. Additionally, it has a gamut error function to ensure that video levels stay within the specified limits. The monitor also has various false color modes for evaluating luma levels and a fast mode to minimize interlaced video processing time delay. With its range of features and options, the OBM-N240G is a reliable and efficient choice for professional monitoring needs.

Summary
Screen Size: 24 Inch
Resolution: 1920 x 1080
Inputs:
3G-SDI
BNC
HD-SDI
HDMI
SD-SDI
Recording: No
Included in box
1 x Postium 24 inch Precision 3G-SDI Monitor with Professional Feature set (OBM-N240G)

About the Postium OBM-N240G 24 inch Monitor
Accurate Colour Reproduction with Wide Colour Gamut

The OBM-N240G provides the industry-leading wide golor gamuts. This monitor complies with the DCI-P3 colour space with gamut ratio 113.02% and gamut coverage 98.24%. This ensures the colours are reproduced according to industry standards.

Camera Log Selection
The OBM series has the integrated camera LUT of the various camera manufacturers. It allows users to load the following camera logs.Log-C, C-Log / S-Log2, S-Log3 / J-Log1 The more camera LUTs will be updated.

Gamut Error
The total range of the SDI 10bit signal is 0 to 1023. The range 0 to 3 and 1020 to 1023 are the reserved values for Sync, and the total video signal range is 4 to 1019.
In a video signal, each primary component should lie between 0 and 100% of the video range between black level and peak level (R and G and B).
Ideally, video levels should lie within the specified limits so that programs can be distributed without adjustment.

100% White pattern : Y – 940, Cb – 512, Cr – 512
0% Black pattern : Y – 64, Cb – 512, Cr – 512
Expected Video Range : 64 to 940

In practice, it is difficult to avoid generating signals slightly out of range, and it is considered reasonable to allow a small tolerance. Therefore, the EBU recommends that the RGB components and the corresponding Luminance (Y) signal should not normally exceed the “preferred minimum/maximum” range of digital sample levels in the table above.

Type 1: Black Zebra
When the targeted colour space is selected as BT.709, the pixels outside of the targeted colour space are displayed as Black Zebra.
The pixels over Y Maximum, Chroma Maximum, RGB Maximum are displayed as Black Zebra, and the pixels below Y Minimum, Chroma Minimum, RGB Minimum are also displayed as Black Zebra.

Type 2: Black & White Zebra
When the targeted colour space is selected as BT.709, the pixels outside of the targeted colour space are displayed as Black or White Zebra. The pixels over Y Maximum, Chroma Maximum, RGB Maximum are displayed as Black Zebra, and the pixels below Y Minimum, Chroma Minimum, RGB Minimum are displayed as White Zebra.

Type 3: Mono
When the targeted colour space is selected as BT.709, the pixels inside of the targeted colour space are displayed as Mono, and the pixels outside of the targeted colour space are displayed as the colour. In this type, black and white area is not recognised.

False Colour
This function evaluates the Luma(Y’) level of the input image. If the certain Y’ level is set, the pixels with the designated Luma(Y’) level are displayed with the zebra pattern or the colour pattern. There are three modes in OBM False Colour.

Zebra
This mode displays the Luma (Y’) level of the input image in zebra pattern
False Colour Variable
This mode allows the user to adjust white clipping, pink level, green level, black clipping.
False Colour ARRI
The colour pattern is displayed with ARRI camera standard.
False Colour Comparison
This function enables the user to divide the piccture side by side, and compare the original image on the left half

Fast Mode

This function minimise the interlaced video processing time delay. This mode is also useful when displaying fast-motion interlaced video content and when reducing the delay between video and audio.

Input Signal | Fast Mode Off / Fast Mode On
1080/60p | 1 frame x (1/60sec) = 17ms / 0.02 frame x (1/60sec) = 0.33ms
1080/50p | 1 frame x (1/50sec) = 20ms / 0.02 frame x (1/50sec) = 0.40ms
1080/60i | 2 field x (1/60sec) = 34ms / 0.02 field x (1/60sec) = 0.33ms
1080/50i | 2 field x (1/50sec) = 40ms / 0.02 field x (1/50sec) = 0.40ms
1080/24psf | 2 field x (1/48sec) = 42ms / 0.02 field x (1/48sec) = 0.42ms

Focus Assist

This function controls the aperture level of a video signal, and displays images on screen with sharpened edges to help camera focus operation.

High Dynamic Range(HDR) Display

The OBM series provides the function to display the High Dynamic Range footage.
Postium HDR function allows users to view both highlights and shadow detail of scenes at tha same time, thus resulting in more natural and realistic images.
The OBM series supports PQ EOTF (SMPTE ST 2084), Hybrid Log Gamma and S-Log3.

High Dynamic Range(HDR) Display Function imageOBM-HDR provides the function of comparing HDR and SDR(Standard Dynamic Range) on the displayed image on the OBM series simultaneously.

Various Markers
The OBM series can display various markers, including aspect marker, area marker, and center marker. In addition, the detailed display settings of each marker are allowed. For example, the colour, brightness, horizontal/vertical position, and thickness of aspect markers can all be adjusted.
Custom Marker allows the users to place top, bottom, left, right marker lines as they want.

Adjustable Gamma
Gamma value is adjustable from 1.0 to 3.0 as user’s preference to monitor in the dark area of the picture.
Any pictures taken in either light or dark environment can be easily watched or analysed.

Remote Control via Ethernet
The OBM series can be connected via Ethernet connection and controlled remotely on the network.

Camera Log Mapped SDI Loopout
This function allows to load the camera log to the original image and then send the camera log mapped image to another monitor through SDI loop out.

Waveform & Vector Scope Position Changeable
The position of Waveform and Vectro Scope can be changed among Left Top, Right Top, Right Bottom, Left Bottom.

System Data Copy
This function allows users to save the monitor configuration and adjustment settings on the USB memory stick and load them to other monitors. This is useful for multiple monitor systems, allowing the transfer of one monitor’s setup and adjustment data to another.

HDR Waveform
When HDR more is set on, HDR Waveform is displayed on screen.

In-Monitor Display(IMD)
The image source names and tally information can be displayed on the screen, with an external remote function via Ethernet. The TSL system protocol is supported. The colour of the source name and tally colour can be selectable among White, Red, Green, Blue, Yellow, Cyan, Magenta.

Password Lock for User Preset
When multiple users share the same monitor, each user can register his/her own password for colour temperature and user preset data. This ensures the users correctly recall their preset data, and keep preset information safe from unauthorised use.

Custom 3D LUT File Import
The OBM series allow the user to import 3D Look-up Table for accurate and consistent colour matching between individual displays as well as using customised ‘looks’ that have been created by 3rd party colour-grading applications. 32ˆ³, 33ˆ³, 64ˆ³, 65ˆ³ cube file are supported.

Closed Caption
The OBM series can display closed captions with an SDI input. It supports the CEA-708(HD-SDI closed captioning standard) and CEA-608(SD-SDI closed captioning standard).

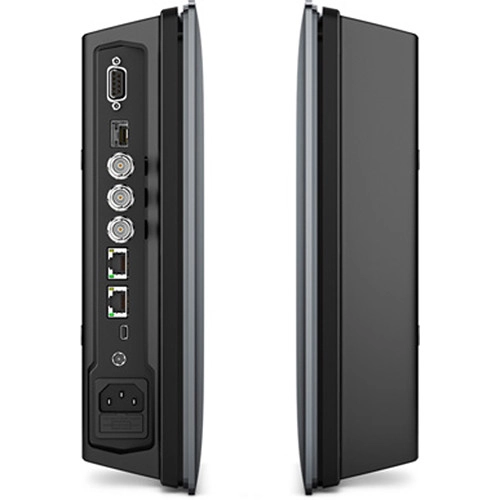

INPUT
2 X BNC 3G / HD / SD-SDI-1/2
1 X HDMI HDMI 1.3a
3 x BNC (YPbPr) Analog(YPbPr)
1 x BNC (CVBS) Composite
1 x DVI DVI-D
OUTPUT
2 x BNC 3G / HD / SD-SDI-1/2
INPUT SIGNAL FORMAT
SMPTE ST 425-AB 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
SMPTE 274 1080i (60/59.94/50) / 1080p(30/29.97/25/24/24sF/23.98/23.98sF)
SMPTE 296 720p(60/59.94/50)
SMPTE 260 1035i(60/59.94)
SMPTE ST 2048 2048 x 1080p(24/24sF/23.98/23.98sF)
SMPTE ST 125 480i(59.94)
ITU R-BT.656 576i(50)
HDMI ~ 1080p(60)
DVI-D VESA / IBM Modes
AUDIO IN / OUT
1 x Phone Jack In Line In(Stereo)
1 x Phone Jack OUT H/P Out(Front, Stereo)
2 x Speaker Out Stereo
DISPLAY
Size 24″
Resolution 1920 x 1200 (16:9)
Pixel Pitch 0.270 mm
Color 1.073B Colors (10bit)
Viewing Angle 178(H), 178(V)
Luminance of White 400cd/m²
Contrast 1500:01:00
Display Area 518.4 x 324 (mm)
GENERAL
1 x Ethernet Control/Update, RJ-45P Input / Output
1 x GPIO GPI-7 Port, RJ-45P Jack
2 x Serial RS-422 Jack, RJ-45P Input / Output
1 x USB For Firmware Update, Color Calibration
Power Requirements TBD
Power Consumption TBD
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity 20% ~ 80% RH
Weight 10.5kg / 23.14lbs
Dimension with Stand (WxHxD) 602 x 428 x 140 mm
23.70 x 16.85 x 5.51 inch
Accessories Power Cable
Option Rack Mount Kit / Carrying Case / Sun Hood / Acrylic Protector / V-Mount

3G/HD/SD-SDI x 2 Input & 2 Output
HDR(High Dynamic Range) Display supportting PQ EOTF(ST 2084), Hybrid Log Gamma, S-Log3
3D-LUT for Accurate Colour Reproduction
1.073 Billion Colours
Wide Colour Gamut with DCI-P3 Coverage 99%
Camera Log Conversion
Camera Log Mapped SDI Loopout
Custom 3D LUT File Import Through USB
Colour Space Selection (BT.709, DCI-P3)
Gamma Selection (1.0 ~ 3.0)
Colour Temperature(3200K, 5500K, 6500K, 9300K, USER 1/2/3, D-CINEMA)
HDR / SDR, Camera Log Comparson (Side by Side)
Waveform, VectorScope (Wave + Vector, Waveform Wide, Position Change, Size Adjustment)
Monitor Control via Ethernet, RS-422
Various Markers (EBU, 4:3, 16:9, 1.85:1, 2.35:1, Variable, Custom)
Internal Patterns Display for Colour Test (Black ~ 100% White, Colour Bar)
Time Code Display (Position / Size Selection)
Easy Firmware Update by USB
Fast Mode
Focus Assist
HDR Waveform
Zero Scan / 1:1 Scan
H/V Delay
Blue/Mono Only
IMD (TSL V3.1, V5.0)
Key Lock & Password Lock
Aspect
Freeze
De-embedded 8~16ch Audio Level Meter
Remote Control via GPI(RJ-45) Port, Ethernet
Gamut Error
False Colour(Zebra, Colour Pattern, ARRI)
False Colour Comparison
3 Colour TALLY Lamp
Rack & VESA Mount (Option)
Closed Caption(608, 708)
System Data Copy
