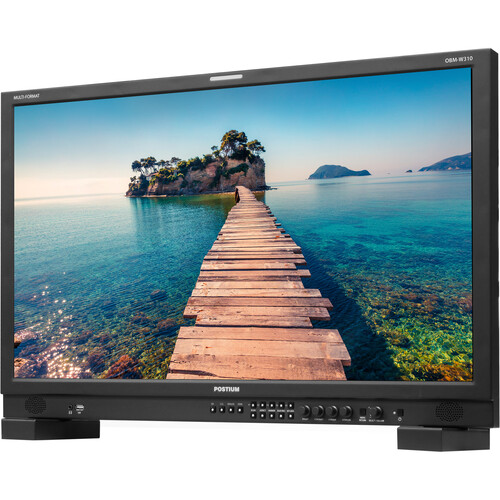

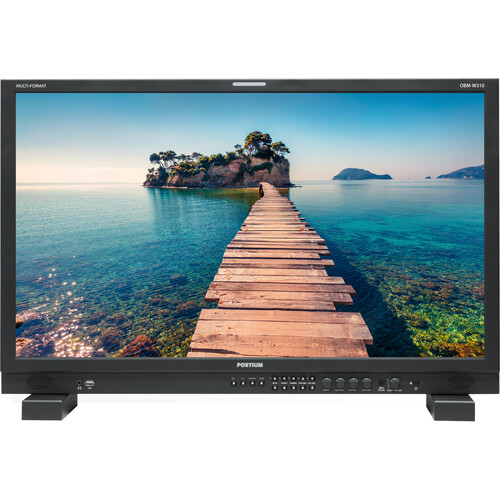

Postium 4K 32 inch Wall Monitor

Overview
The Postium W Series is equipped with advanced features such as 4K waveform monitors and vector scope display, allowing users to monitor sources and display both Waveform and Vector Scope simultaneously. The High Dynamic Range function enables users to view highlights and shadow detail for more realistic images. The series also supports various camera logs and can be controlled remotely via Ethernet connection.

Other features include focus assist, fast mode for minimal video processing delay, false colour mode for evaluating Luma levels, and adjustable gamma for monitoring in different lighting conditions. The OBM series also offers various markers with customizable settings for optimal display. Please note that although the product accepts 4K signals, the screen resolution itself is HD.

Summary
Screen Size: 32 Inch
Resolution: 1920 x 1080
Inputs:
12G-SDI
3G-SDI
6G-SDI
BNC
HDMI
SFP
Outputs:
12G-SDI
3G-SDI
6G-SDI
BNC
SD-SDI
Power Supply: AC-DC
Recording: No
Included in box
1x Postium OBM-W310 4K Wall Monitor
1x Power Cable

About the Postium 4K 32 inch Wall Monitor
PLEASE NOTE: This product accepts a 4K signal, however the screen resolution itself is HD.

The Postium W Series comes equip with many features including 4K waveform monitors and vector scope display. These features enable users to monitor sources using the internal Waveform and Vector Scope. Waveform Wide Mode is supported, and both Waveform and Vector Scope can be displayed simultaneously.

The OBM W Series provides the function to display the High Dynamic Range footage. Postium HDR function allows users to view both highlights and shadow detail of scenes at the same time, thus resulting in more natural and realistic images. The OBM series supports PQ EOTF, Hybrid Log Gamma and S-Log3. OBM-HDR provides the function of comparing HDR and SDI on the displayed image on the OBM series simultaneously.

Focus Assist provides users with the function to control the aperture level of a video signal, and displays images on screen with sharpened edges to help camera focus operation. Whilst Fast Mode minimises the interlaced video processing time delay. This mode is also useful when displaying fast-motion interlaced video content and when reducing the delay between video and audio.

The False Colour mode evaluates the Luma (Y) level of the input image. If the certain Y level is set, the pixels with the designated Luma (Y) level are displayed with the zebra pattern or the colour pattern. There are three modes in OBM false colour.

Adjustable Gamma – Gamma value is adjustable from 1.0 to 3.0 as users preferance to monitor in the dark area of the picture. Any pictures taken in either light or dark environment can be easily watched or analysed.

The OBM series has the integrated camera LUT of the various camera manufacturers. It allows users to load the following camera logs: Log-C/C-Log/S-Log2/S-Log3/J-Log1.

It can also be connected via Ethernet connection and controlled remotely on the network.

The OBM series can display various markers, including aspect marker, area marker, and centre marker. In addition, the detailed display settings of each marker are allowed for example, the colour, brightness, horizontal/vertical position and thickness of aspect markers can all be adjusted.

Input
2 X BNC 12G/6G/3G/HD/SD-SDI-1/2
1 X HDMI HDMI 2.0
1 X SFP Optical
3 X BNC (YPbPr) Analog(YPbPr)
1 X BNC (CVBS) Composite
Output
2 X BNC 12G/6G/3G/HD/SD-SDI-1/2
Input Signal Format
SMPTE ST 2082 2160p(60/59.94/50)
SMPTE ST 2081 2160p(30/29.97/25/24/23.98)
SMPTE ST 425-AB 1080p(60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)
SMPTE ST 274 1080p(30/29.97/25/24/23.98/24sF/23.98sF) / 1080i (60/59.94/50)
SMPTE ST 296 720p(60/59.94/50)
SMPTE ST 260 1920 x 1035i(60/59.94)
SMPTE ST 2048 2048 x 1080p(24/23.98/24sF/23.98sF)
SMPTE ST 125 480i(59.94)
ITU R-BT.656 576i(50)
HDMI 2.0 ~ 2160p(60)
SFP 12Gbps, 6Gbps, 2.970Gbps, 1.485Gbps, 270Mbps
Audio In/Out
1 x Phone Jack In Line In(Stereo)
1 x Phone Jack OUT H/P Out(Front, Stereo)
2 x Speaker Out Stereo
Display
Size 32inch
Resolution 1920 x 1080 (16:9)
Pixel Pitch 0.363mm
Colour 1.064B Colors (8bit+2bit FRC)
Viewing Angle 178(H), 178(V)
Luminance of White 500cd/m²
Contrast 3000:1
Display Area 698.4 x 392.85 (mm)
General
1x Ethernet Control/Update, RJ-45P Input / Output
1x GPIO GPI-7 Port, RJ-45P Jack
2x Serial RS-422 Jack, RJ-45P Input / Output
1x USB For Firmware Update, Colour Calibration
Power Requirements AC(100V~230V,50/60Hz) / DC 24V
Power Consumption MAX 100W
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity 20% ~ 80% RH
Weight 22kg / 48.50lbs
Dimensions with stand (W x H x D) 749 x 507 x 176mm / 29.48 x 19.96 x 6.92inch
Accessories Power Cable
Option Wall Mount Kit / Carrying Case

4K Waveform Monitor and Vector Scope Display
High Dynamic Range Display Function
Focus Assist
Various 4K/12G display modes
Fast Mode
False Colour
Adjustable Gamma
Camera Log
Remote Control via Ethernet
